Portable 7 Inch Uvss Under Vehicle Surveillance System High Definition
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-PUVD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD700 ~ 1200 |
| Packaging Details: | carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Name: | Portable Under Vehicle Camera Surveillance System 7-inch High-definition | Imaging sensor : | 1/2.9" CMOS Sensor |
|---|---|---|---|
| Minimum Illumination: | 0.01Lux@F1.2；Black And White 0Lux (INFRARED Light On） | Signal/scan System: | PAL；Progressive Scan |
| PAL；Progressive Scan: | Automatic/Manual (1/5-1/50000 Second) | Day And Night Mode: | ICR Filter |
| High Light: | hd uvss under vehicle surveillance system,7inch uvss under vehicle surveillance system,high definition under vehicle camera system |
||
Product Description
Portable Under Vehicle Camera Surveillance System 7-inch high-definition
Model:HW-PUVD03
Function and features
- Using 7-inch high-definition and bright 1080P display screen, image display is clear;

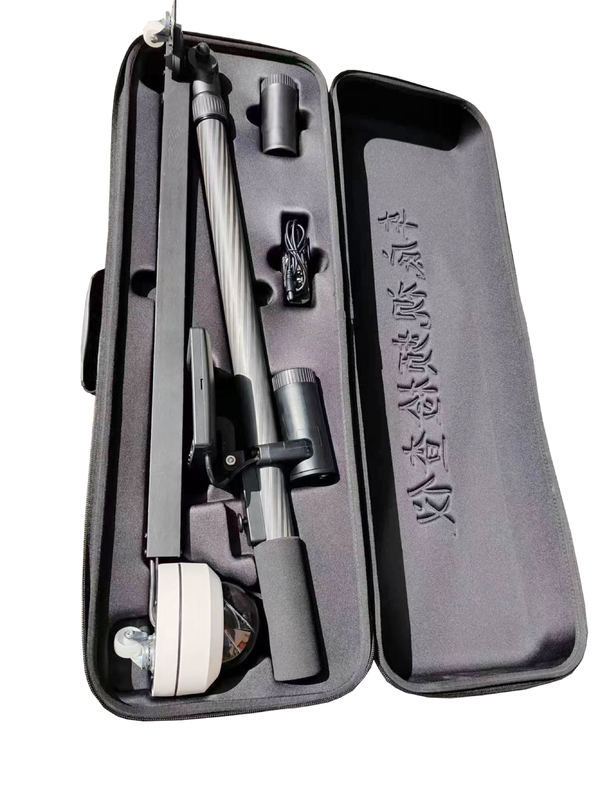

- Using high quality high-definition wide angle camera,with wider field of vision.The 7-inch high-definition display makes the image more clearer. The main body adopts carbon fiber tube, which making it more lighter and portable. Convenient folding structure, movable telescopic rod, universal wheel chassis so that the operator can adjust the Angle flexibly when using.
Features:
1. Video collection function: The front-end video collection device can collect clear target images.
2. Angle adjustment function: The shooting direction and Angle of the front-end video acquisition device can be flexibly adjusted.
3. Real-time display function: The device can display the video inspection results of front-end components in real time.
Parameters:
| Display Screen | LCD Screen | 7.0 inch color |
| Display Resolution | 1920*1080 | |
| Display Brightness | 800 cd/㎡ | |
| View angle | 140/120 Degree (horizontal/vertical) | |
| Camera | Lens | 1/2.8" CMOS； |
| Pixel | 10 million pixels 1080P@ 25,30 frame | |
| Minimum Illumination | Black and white 0.02Lux(OLUX) | |
| Infrared fill light lamp | 3 high-power automatic light filling lamp (non-traditional infrared light filling lamp) | |
| Signal/scan system | PAL/NTSC；progressive scanning | |
| Electronic shutter | Auto/Manual(1/5-1/50000 second) | |
| Day-night mode | ICR filter | |
| Fixed-focus | 2.8mm | |
| Horizontal View Angle | 112 | |
| Vertical flat perspective | 84 | |
| IR Distance | 20m | |
| Horizontal speed | Horizontal 360 ° rotation, speed 0-30°/S; Angle reaches 400° | |
| Vertical Speed | Speed 0-20°/S | |
| Vertical range | 0°-120°；Angle of view to 165° | |
| Level of protection | IP68 | |
| Maximum Image Size | 3200*2560 | |
| Power Supply | DC 12V1A, 9W | |
| Operating temperature and humidity | -35℃+65℃,≤90%RH(No condensation) | |
| Display | Video recording resolution | 1080P |
| Memory | 32G the maximum support 256G | |
| Video | Automatic video | |
| Playback | support | |
| Time to record a single video file | 1, 3, and 5 minutes are optional | |
| System | Battery | 2600mah*2 |
| working voltage | 12v | |
| Appearance | Folded dimension | 1180x192x180mm |
| Expanded dimension | 2235x192x180mm | |
| Display Size | 180x120x20mm | |
| Net weight | 2kg | |
| Gross weight | ≦4kg |
