High-strength light-weight carbon fiber, Telescopic Manipulator
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWJXS-V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set at least |
|---|---|
| Price: | negotiable |
| Packaging Details: | ABS Case dimension,146x38x50cm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Telescopic Manipulator | Image Sensor: | 1/2.9 Inch Ultra-low Illumination 2 Megapixel CMOS |
|---|---|---|---|
| Built-in HD Lens: | 2.8mm | Resolution: | 1080P |
| Material: | High-strength Light-weight Carbon Fiber | Protection Class: | IP68 |
| High Light: | compact x ray security inspection system,lightweight x ray security inspection system,baggage checked x ray inspection system |
||
Product Description

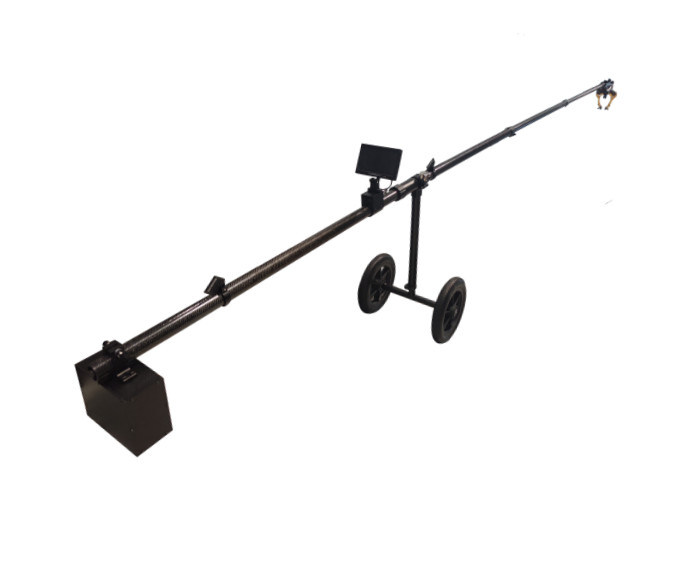

High-strength light-weight carbon fiber, Telescopic Manipulator
Description
Telescopic manipulator is a kind of EOD device. It is comprised of the mechanical claw, mechanical arm, battery box, controller, etc. It can control the claw's open and close.
This device is used for all dangerous explosive articles disposal and suitable for public security, fire fighting and EOD departments.
Features
1. High grabbing capacity: it can grab about 20 kg objects.
2. 4.7 meters stand-off capability.
3. Rechargeable battery.
4. Battery box designed as counterweight.
Technical Specification
| Physical Parameter | |
| Weight (with battery) | 16.8 kg |
| Material | High-strength light-weight carbon fiber |
| Pole Length | 2.75 m ~ 4.7m |
| Claw Max. Opening Size | 20cm |
| Max. Grip Weight | 2.75m (pole length): 11.5kg |
| 4.7m (pole length): 20kg | |
| Wheel Diameter | 30cm |
| Wheel-center-distance | 44cm |
| Claw rotation | 360 degrees |
| Camera Parameter | |
| Image Sensor | 1/2.9 inch ultra-low illumination 2 megapixel CMOS |
| Built-in HD Lens | 2.8mm |
| Resolution | 1080P |
| Min. illumination | Color 0.01Lux@(F1.2,AGC ON) |
| Backlight compensation | AUTO |
| Frame rate | 50Hz:25fps (1920*1080)；60Hz:30fps (1920*1080) |
| Protection Class | IP68 |
| Display Parameter | |
| Display Size | 7 inch TFT-LCD screen |
| Resolution | 1080P |
| Screen Backlight | LED |
| Brightness | 500cd/m2 |
| FOV | 150° |
| Voltage | 12v |
| Power | 6.5w |
| Language | English |
| Other Parameter | |
| Working Time | 5hours with built-in rechargeable battery |
| Operating temperature | -20℃ to +45℃ ; 0~98%Rh |
| Storage temperature | -20℃ to +45℃ ; 0~98%Rh |
| Packing weight (device+case) | 32.2kg |
