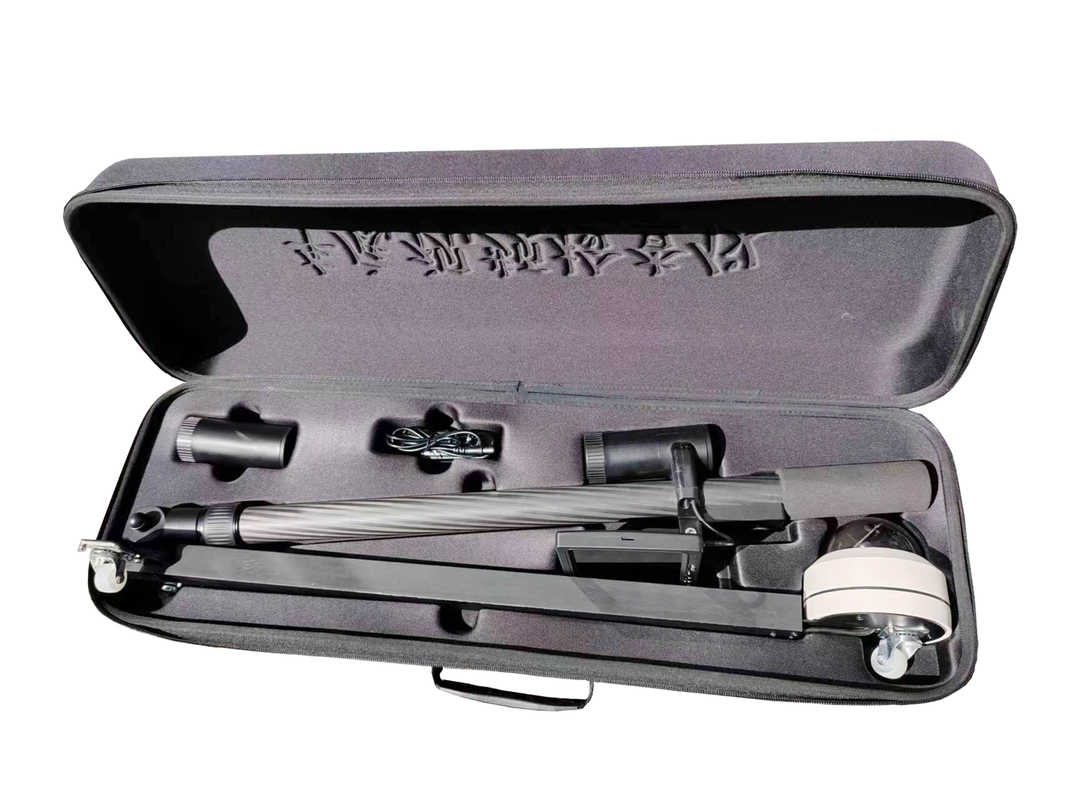

Handheld 12 Voltage Vehicle Checking Mirror Camera System
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-PUVD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Name: | Handheld 12 Voltage Under Vehicle Search Camera System | Size: | LCD 7.0 Inch Color |
|---|---|---|---|
| Display Brightness: | 800 Cd/㎡ | Cruise Scanning: | Can Set One Strip |
| Maximum Image Size: | 1920x1080 | Power Supply, Power Consumption: | DC 12V 1A、 10W（max） |
| High Light: | 12 voltage vehicle checking mirror,handheld vehicle checking mirror camera system |
||
Product Description
Handheld 12 Voltage Under Vehicle Search Camera System
Function
Using 7-inch high-definition and bright 1080P display screen, image display is clear;Using high quality high-definition wide angle camera,with wider field of vision.The 7-inch high-definition display makes the image more clearer. The main body adopts carbon fiber tube, which making it more lighter and portable. Convenient folding structure, movable telescopic rod, universal wheel chassis so that the operator can adjust the Angle flexibly when using.
Features:
| Camera | |
| Imaging sensor | 1/2.9" CMOS Sensor |
| Minimum illumination | 0.01Lux@F1.2；Black and white 0Lux (INFRARED light on) |
| Signal/scan system | PAL；Progressive scan |
| Electronic shutter | Automatic/Manual (1/5-1/50000 second) |
| Day and night mode | ICR filter |
| Lens | 3.6MM fixed-focus |
| IR Distance | 10m |
| Horizontal speed | Horizontal 355° continuous rotation, speed 0-25°/S |
| Vertical speed | Speed 0-20°/S |
| Vertical range | 0°-90° |
| Cruise scanning | can set one strip |
| Track scanning | can set one group |
| Two line sweep | Support |
| Maximum Image Size | 1920x1080 |
| Power supply, power consumption | DC 12V 1A, 10W(max) |
| Operating temperature and humidity | —10℃—50℃,≤90%RH(No condensation) |
| Display Screen | |
| Size | LCD 7.0 inch color |
| Display resolution | 1920*1080 |
| Display Brightness | 800 cd/㎡ |
| Power Supply | |
| Battery | 2600mah*2 |
| Voltage | 12V |
| Specification of equipment | |
| Folded length | 740*220*180mm |
| Extended length | 1940mm |
| Net weight | 1.78kg |
| Gross Weight | ≦4kg |
Beijing Heweiyongtai Sci & Tech Co., Ltd. was established in the beginning of 2008. We are a hi-tech enterprise specializing in manufacturing and trading Security inspection equipment, EOD equipment, Anti-terrorism equipment, Intelligence device, etc. Our products are widely applied in public security bureau, military, custom, government security agency, airport, exhibition, etc.
