Portable 7 Inch Under Vehicle Search Mirror High Definition Security Checking
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-PUVD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Name: | Portable 7-inch High-definition Under Vehicle Search Camera System 1.78kg | Gross Weight: | ≦4kg |
|---|---|---|---|
| Net Weight: | 1.78kg | Extended Length: | 1940mm |
| Folded Length: | 740*220*180mm | Voltage: | Voltage |
| High Light: | 7 inch under vehicle search mirror,high definition under vehicle search mirror,portable under vehicle security checking mirror |
||
Product Description

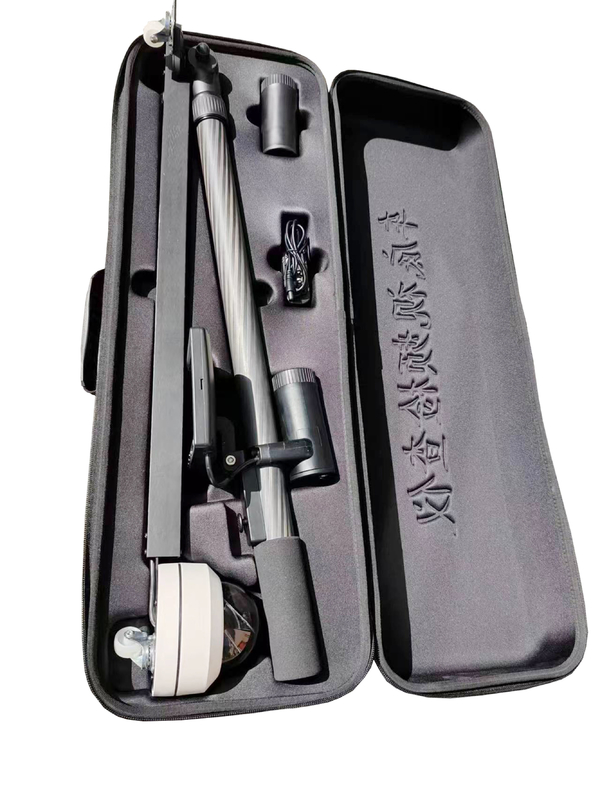

Portable 7-inch high-definition Under Vehicle Search Camera System 1.78kg
Features
Using high quality high-definition wide angle camera,with wider field of vision.The 7-inch high-definition display makes the image more clearer. The main body adopts carbon fiber tube, which making it more lighter and portable. Convenient folding structure, movable telescopic rod, universal wheel chassis so that the operator can adjust the Angle flexibly when using.
Application :
It is used for sports meet, important meetings, local police stations, senior hotels, large factories, stadiums, cinemas, theatres, venues to check whether there are explosives hidden in the bottom of parking cars.
Features:
| Camera | |
| Imaging sensor | 1/2.9" CMOS Sensor |
| Minimum illumination | 0.01Lux@F1.2；Black and white 0Lux (INFRARED light on) |
| Signal/scan system | PAL；Progressive scan |
| Electronic shutter | Automatic/Manual (1/5-1/50000 second) |
| Day and night mode | ICR filter |
| Lens | 3.6MM fixed-focus |
| IR Distance | 10m |
| Horizontal speed | Horizontal 355° continuous rotation, speed 0-25°/S |
| Vertical speed | Speed 0-20°/S |
| Vertical range | 0°-90° |
| Cruise scanning | can set one strip |
| Track scanning | can set one group |
| Two line sweep | Support |
| Maximum Image Size | 1920x1080 |
| Power supply, power consumption | DC 12V 1A, 10W(max) |
| Operating temperature and humidity | —10℃—50℃,≤90%RH(No condensation) |
| Display Screen | |
| Size | LCD 7.0 inch color |
| Display resolution | 1920*1080 |
| Display Brightness | 800 cd/㎡ |
| Power Supply | |
| Battery | 2600mah*2 |
| Voltage | 12V |
| Specification of equipment | |
| Folded length | 740*220*180mm |
| Extended length | 1940mm |
| Net weight | 1.78kg |
| Gross Weight | ≦4kg |
Beijing Heweiyongtai Sci & Tech Co., Ltd. was established in the beginning of 2008. We are a hi-tech enterprise specializing in manufacturing and trading Security inspection equipment, EOD equipment, Anti-terrorism equipment, Intelligence device, etc. Our products are widely applied in public security bureau, military, custom, government security agency, airport, exhibition, etc.
