Lcd 7.0 Inch Under Vehicle Mirror Color Video Collection Function
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-PUVD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Name: | LCD 7.0 Inch Color Under Vehicle Search Camera System Video Collection Function | Signal/scan System: | Signal/scan System |
|---|---|---|---|
| Electronic Shutter: | Electronic Shutter | Day And Night Mode: | ICR Filter |
| ICR Filter: | 3.6MM Fixed-focus | Power Supply, Power Consumption: | DC 12V 1A、 10W（max） |
| Highlight: | 7.0 inch lcd under vehicle mirror,color video collection under vehicle mirror |
||
Product Description

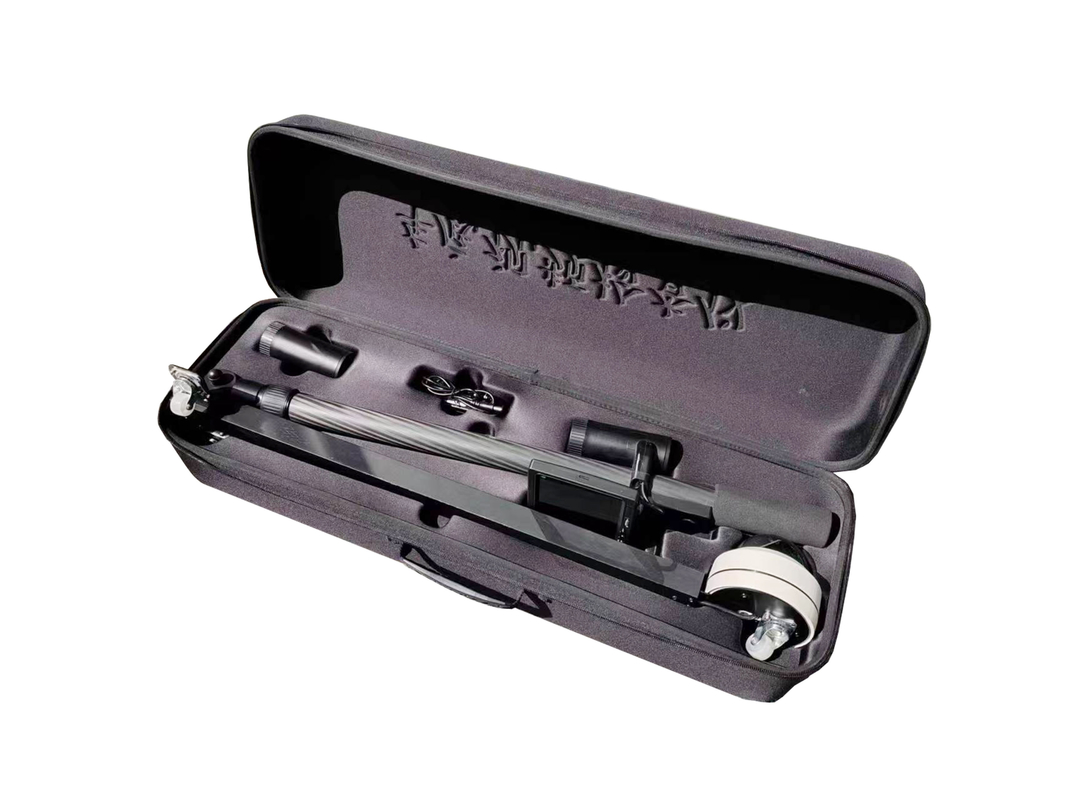

LCD 7.0 inch color Under Vehicle Search Camera System Video collection function
Features:
1. Video collection function: The front-end video collection device can collect clear target images.
2. Angle adjustment function: The shooting direction and Angle of the front-end video acquisition device can be flexibly adjusted.
3. Real-time display function: The device can display the video inspection results of front-end components in real time.
Features:
| Camera | |
| Imaging sensor | 1/2.9" CMOS Sensor |
| Minimum illumination | 0.01Lux@F1.2；Black and white 0Lux (INFRARED light on) |
| Signal/scan system | PAL；Progressive scan |
| Electronic shutter | Automatic/Manual (1/5-1/50000 second) |
| Day and night mode | ICR filter |
| Lens | 3.6MM fixed-focus |
| IR Distance | 10m |
| Horizontal speed | Horizontal 355° continuous rotation, speed 0-25°/S |
| Vertical speed | Speed 0-20°/S |
| Vertical range | 0°-90° |
| Cruise scanning | can set one strip |
| Track scanning | can set one group |
| Two line sweep | Support |
| Maximum Image Size | 1920x1080 |
| Power supply, power consumption | DC 12V 1A, 10W(max) |
| Operating temperature and humidity | —10℃—50℃,≤90%RH(No condensation) |
| Display Screen | |
| Size | LCD 7.0 inch color |
| Display resolution | 1920*1080 |
| Display Brightness | 800 cd/㎡ |
| Power Supply | |
| Battery | 2600mah*2 |
| Voltage | 12V |
| Specification of equipment | |
| Folded length | 740*220*180mm |
| Extended length | 1940mm |
| Net weight | 1.78kg |
| Gross Weight | ≦4kg |
Beijing Heweiyongtai Sci & Tech Co., Ltd. was established in the beginning of 2008. We are a hi-tech enterprise specializing in manufacturing and trading Security inspection equipment, EOD equipment, Anti-terrorism equipment, Intelligence device, etc. Our products are widely applied in public security bureau, military, custom, government security agency, airport, exhibition, etc.
