Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display

Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display

Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HW-PUVD03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: Carton package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Name: Under Vehicle Search Camera System Display Screen: LCD 7.0 Inch Color
Display resolution : 1920*1080 Power Supply: 2600mah*2 12V
Camera Imaging sensor : 1/2.9" CMOS Sensor Electronic Shutter: ICR Filter
High Light:

1080p under vehicle search camera

,

7inch under vehicle search camera

,

hd under vehicle search camera

Product Description

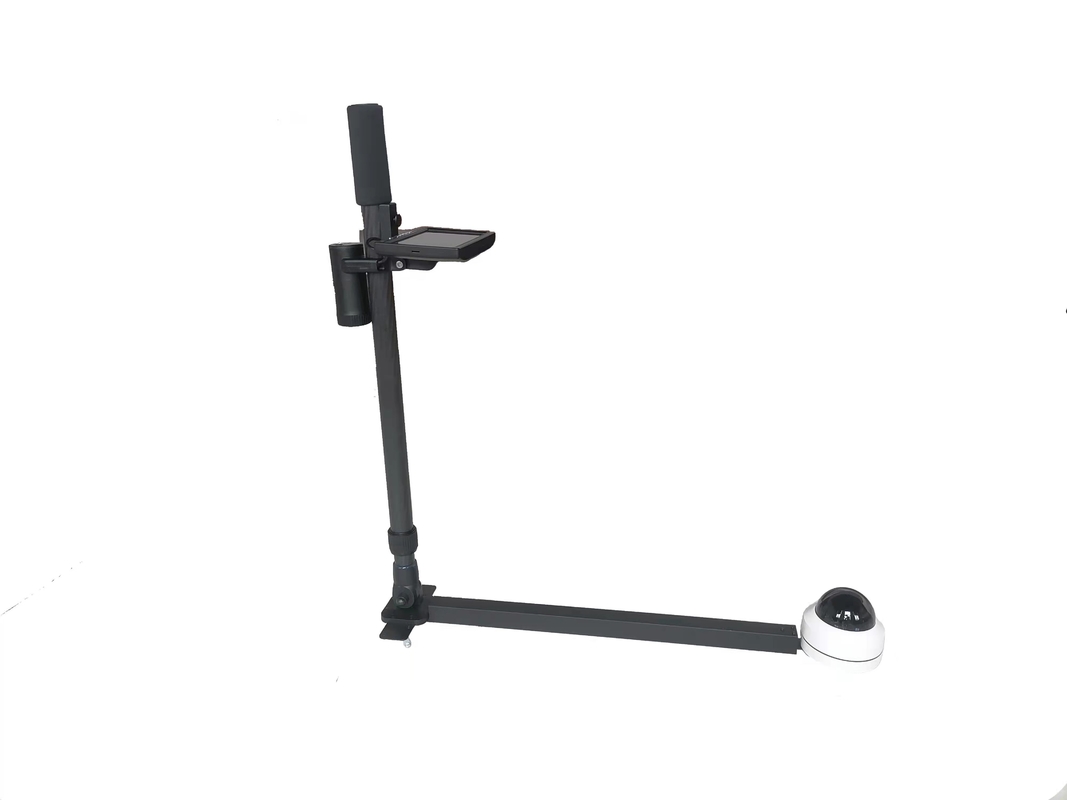

Bright 1080P display screen and 7-inch high-definition, clear image display Under Vehicle Search Camera System



Portable Under Vehicle Search Camera System



Function and features

  • Using 7-inch high-definition and bright 1080P display screen, image display is clear;
  • Using high quality high-definition wide angle camera,with wider field of vision.The 7-inch high-definition display makes the image more clearer. The main body adopts carbon fiber tube, which making it more lighter and portable. Convenient folding structure, movable telescopic rod, universal wheel chassis so that the operator can adjust the Angle flexibly when using.



Application Fields:

1. It is used for sports meet, important meetings, local police stations, senior hotels, large factories, stadiums, cinemas, theatres, venues to check whether there are explosives hidden in the bottom of parking cars.

2. It is used for airport security, parking inspection, military area inspection, private car inspection, etc.



Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 0



Features:

1. Video collection function: The front-end video collection device can collect clear target images.

2. Angle adjustment function: The shooting direction and Angle of the front-end video acquisition device can be flexibly adjusted.

3. Real-time display function: The device can display the video inspection results of front-end components in real time.



Camera
Imaging sensor  1/2.9" CMOS Sensor
Minimum illumination 0.01Lux@F1.2;Black and white 0Lux (INFRARED light on)
Signal/scan system PAL;Progressive scan
Electronic shutter Automatic/Manual (1/5-1/50000 second)
Day and night mode ICR filter
Lens 3.6MM fixed-focus
IR Distance 10m
Horizontal speed Horizontal 355° continuous rotation, speed 0-25°/S
Vertical speed Speed 0-20°/S
Vertical range 0°-90°
Cruise scanning can set one strip
Track scanning can set one group
Two line sweep Support
Maximum Image Size 1920x1080
Power supply, power consumption DC 12V 1A, 10W(max)
Operating temperature and humidity —10℃—50℃,≤90%RH(No condensation)
Display Screen
Size LCD 7.0 inch color
Display resolution  1920*1080
Display Brightness 800 cd/㎡
Power Supply
Battery 2600mah*2
Voltage 12V
Specification of equipment
Folded length 740*220*180mm
Extended length 1940mm
Net weight 1.78kg
Gross Weight ≦4kg











Beijing Heweiyongtai Sci & Tech Co., Ltd. was established in the beginning of 2008. We are a hi-tech enterprise specializing in manufacturing and trading Security inspection equipment, EOD equipment, Anti-terrorism equipment, Intelligence device, etc. Our products are widely applied in public security bureau, military, custom, government security agency, airport, exhibition, etc.





Beijing Headquarters

Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 1



Jiangsu Factory



Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 2



Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 3



Shenzhen Research Centre



Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 4

Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 5



Main Products

Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 6

Bright 1080p Display Screen Under Vehicle Search Camera 7 Inch High Definition Clear Image Display 7
