Light Weight Precision Explosives Trace Detection Portable
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-TDR-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Portable Explosive Detector | Display Screen: | 3"TFT Color Display Screen |
|---|---|---|---|
| Rated Energy: | 8850mAh | Rated Capacity: | 65.5Wh |
| Rated Voltage: | 7.4V | Operating TEMP: | - 20 ℃ ~ 55 ℃ |
| High Light: | light weight explosives trace detection,precision explosives trace detection,light weight handheld explosive detector |
||
Product Description

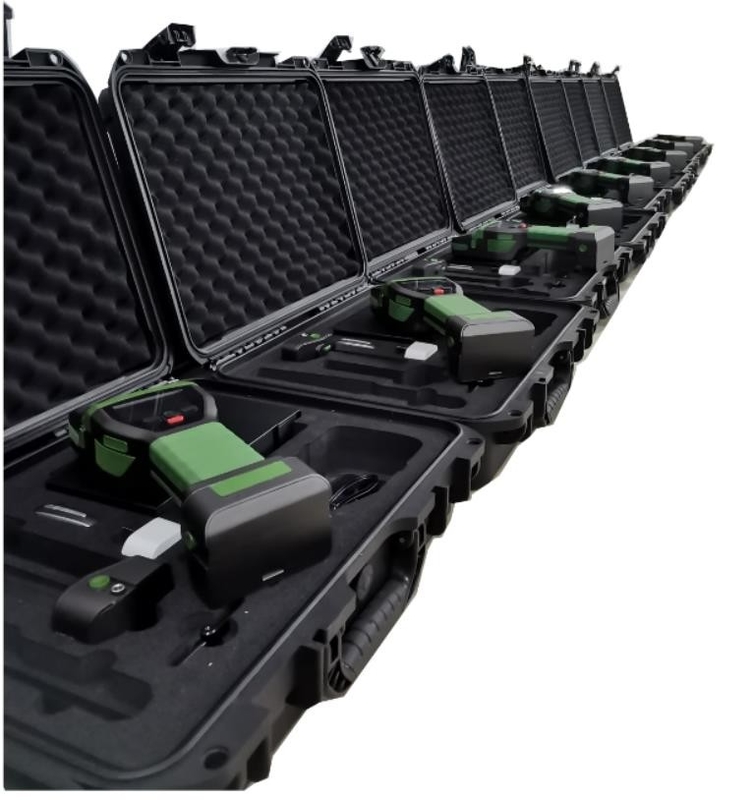

Light weight, only 1 kg, portable explosive detector
The newly developed HWX16C product is the portable trace explosive detector with the highest detection limit and the most explosives in the domestic and foreign markets. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected.
Specifications
|
NO |
Technical Specs
|
|
|
1 |
Technology |
Amplified Fluorescent Polymer Quenching Sensor |
|
2 |
Analysis time |
≤5s |
|
3 |
Start-up time |
≤10s |
|
4 |
Sampling method |
Particle and Vapor |
|
5 |
Detection Sensitivity |
Particulate: TNT LOD ≤0.05ng |
|
Vapor: PPM |
||
|
6 |
Operating TEMP |
- 20 ℃ ~ 55 ℃ |
|
7 |
False alarm rate |
≤ 1% |
|
8 |
Power Consumption |
7.5W |
|
9 |
Rated voltage |
7.4V |
|
10 |
Rated Capacity |
65.5Wh |
|
11 |
Rated Energy |
8850mAh |
|
12 |
Display Screen |
3"TFT Color display Screen |
|
13 |
Com Port |
USB2.0 |
|
14 |
Data Storage |
≥100000pieces of record |
|
15 |
Battery |
Two Li-ion Rechargeable Battery |
|
16 |
Battery Working Time |
Single battery time up to 8 hours |
|
17 |
Battery Charging Time |
≦3.5hours |
|
18 |
Alarming method |
Visual / Audible / Vibration |
