Usb 2.0 Portable Explosive Detector No Radioactive Source
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWX16C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | No Radioactive Source Explosive Trace Detector | Com Port: | USB 2.0 |
|---|---|---|---|
| Data Storage: | More Than 100000pieces Of Record | Battery: | Two Li-ion Rechargeable Battery |
| Battery Working Time: | Single Battery Time Up To 8 Hours | Battery Charging Time: | Less Than 3.5hours |
| Dimensions: | 300mm × 106mm × 71mm | ||
| High Light: | usb 2.0 portable explosive detector,homeland security portable explosive detector,no radioactive source explosive trace detector |
||
Product Description

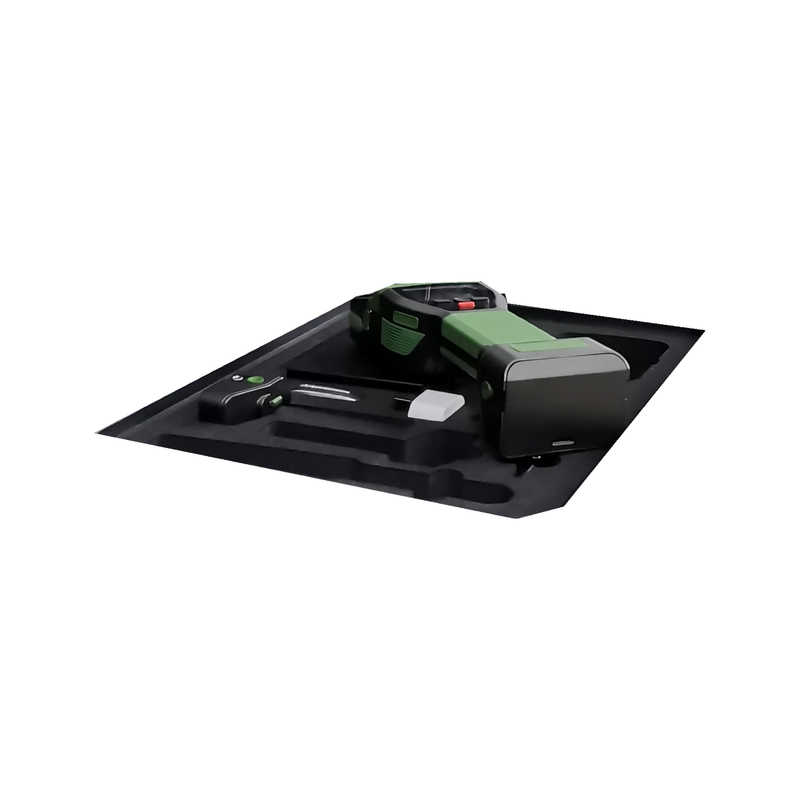

No radioactive source Explosive Trace Detector
Description
The newly developed HWX16C product is the portable trace explosive detector with the highest detection limit and the most explosives in the domestic and foreign markets. The excellent ABS polycarbonate casing is sturdy and elegant. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected. The product is calibrated automatically.
Features
1. High sensitivity and low false alarm rate
2. Quick start and detection speed
3. Broad explosive identification
4. Convenient operation
5.Fluorescence based
6. No radioactive source
7. Automatic calibration
Specifications
| NO |
Technical Specs
|
|
| 1 | Technology | Amplified Fluorescent Polymer Quenching Sensor |
| 2 | Analysis time | ≤5s |
| 3 | Start-up time | ≤10s |
| 4 | Sampling method | Particle and Vapor |
| 5 | Detection Sensitivity | Particulate: TNT LOD ≤0.05ng |
| Vapor: PPM | ||
| 6 | Operating TEMP | - 20 ℃ ~ 55 ℃ |
| 7 | False alarm rate | ≤ 1% |
| 8 | Power Consumption | 7.5W |
| 9 | Rated voltage | 7.4V |
| 10 | Rated Capacity | 65.5Wh |
| 11 | Rated Energy | 8850mAh |
| 12 | Display Screen | 3"TFT Color display Screen |
| 13 | Com Port | USB2.0 |
| 14 | Data Storage | ≥100000pieces of record |
| 15 | Battery | Two Li-ion Rechargeable Battery |
| 16 | Battery Working Time | Single battery time up to 8 hours |
| 17 | Battery Charging Time | ≦3.5hours |
| 18 | Alarming method | Visual / Audible / Vibration |
| 19 | Dimensions | 300mm × 106mm × 71mm |
| 20 | Weight | ≦1.05kg including battery |
| 21 | Protection Level | IP53 |
| 22 | Substances detected |
Military, Commercial, and Homemade Explosives including:TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others. |
Company Introduction
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
