7.4V Handheld Etd Two Li Ion Rechargeable Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWX16C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Two Li-ion Rechargeable Battery Explosive Trace Detector | Start-up Time: | Less Than 10s |
|---|---|---|---|
| Operating TEMP: | - 20 ℃ ~ 55 ℃ | False Alarm Rate: | Less Than 1% |
| Power Consumption: | 7.5W | Rated Voltage: | 7.4V |
| Com Port: | USB2.0 | ||
| High Light: | 7.4v handheld etd,li ion rechargeable battery handheld etd,li ion battery explosive trace detector |
||
Product Description

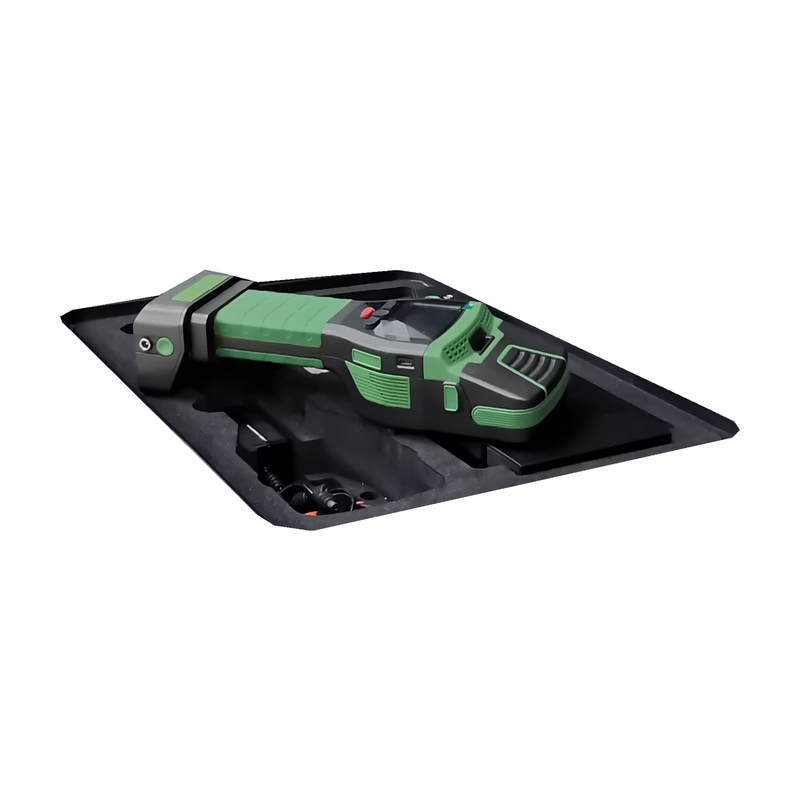

Two Li-ion Rechargeable Battery Explosive Trace Detector
Description
The newly developed HWX16C product is the portable trace explosive detector with the highest detection limit and the most explosives in the domestic and foreign markets. The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.The product is calibrated automatically.The excellent ABS polycarbonate casing is sturdy and elegant.
Features
1. High sensitivity and low false alarm rate
2. Quick start and detection speed
3. Broad explosive identification
4. Convenient operation
5.Fluorescence based
6. No radioactive source
7. Automatic calibration
Specifications
| NO |
Technical Specs
|
|
| 1 | Technology | Amplified Fluorescent Polymer Quenching Sensor |
| 2 | Analysis time | ≤5s |
| 3 | Start-up time | ≤10s |
| 4 | Sampling method | Particle and Vapor |
| 5 | Detection Sensitivity | Particulate: TNT LOD ≤0.05ng |
| Vapor: PPM | ||
| 6 | Operating TEMP | - 20 ℃ ~ 55 ℃ |
| 7 | False alarm rate | ≤ 1% |
| 8 | Power Consumption | 7.5W |
| 9 | Rated voltage | 7.4V |
| 10 | Rated Capacity | 65.5Wh |
| 11 | Rated Energy | 8850mAh |
| 12 | Display Screen | 3"TFT Color display Screen |
| 13 | Com Port | USB2.0 |
| 14 | Data Storage | ≥100000pieces of record |
| 15 | Battery | Two Li-ion Rechargeable Battery |
| 16 | Battery Working Time | Single battery time up to 8 hours |
| 17 | Battery Charging Time | ≦3.5hours |
| 18 | Alarming method | Visual / Audible / Vibration |
| 19 | Dimensions | 300mm × 106mm × 71mm |
| 20 | Weight | ≦1.05kg including battery |
| 21 | Protection Level | IP53 |
| 22 | Substances detected |
Military, Commercial, and Homemade Explosives including:TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others. |
