Screening Drugs Portable X Ray Inspection System 375×315×150mm Imager Size
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWXRY-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package, wooden package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Portable Xray Screening System | Imaging Window: | 305×254mm |
|---|---|---|---|
| Battery: | 12V Lithium Hydrogen Battery | X-ray Tube Lifetime: | 10 Million Pulse Life(The Tube Can Be Replaced) |
| Penetration Capacity: | 12mm Steel | Best Detecting Distance: | 0.7m |
| High Light: | drugs portable x ray inspection system,screening portable x ray inspection system,drugs portable x ray baggage scanner |
||
Product Description
375×315×150mm Imager Size, Portable Xray Screening System
Portable Xray Screening System
Model: HWXRY-01
HWXRY-01 utilizes the well tried and tested EOD x-ray triggering and imaging software to produce high resolution images. Images can be auto stored for evidential purposes or manipulated to further enhance regions of interest.

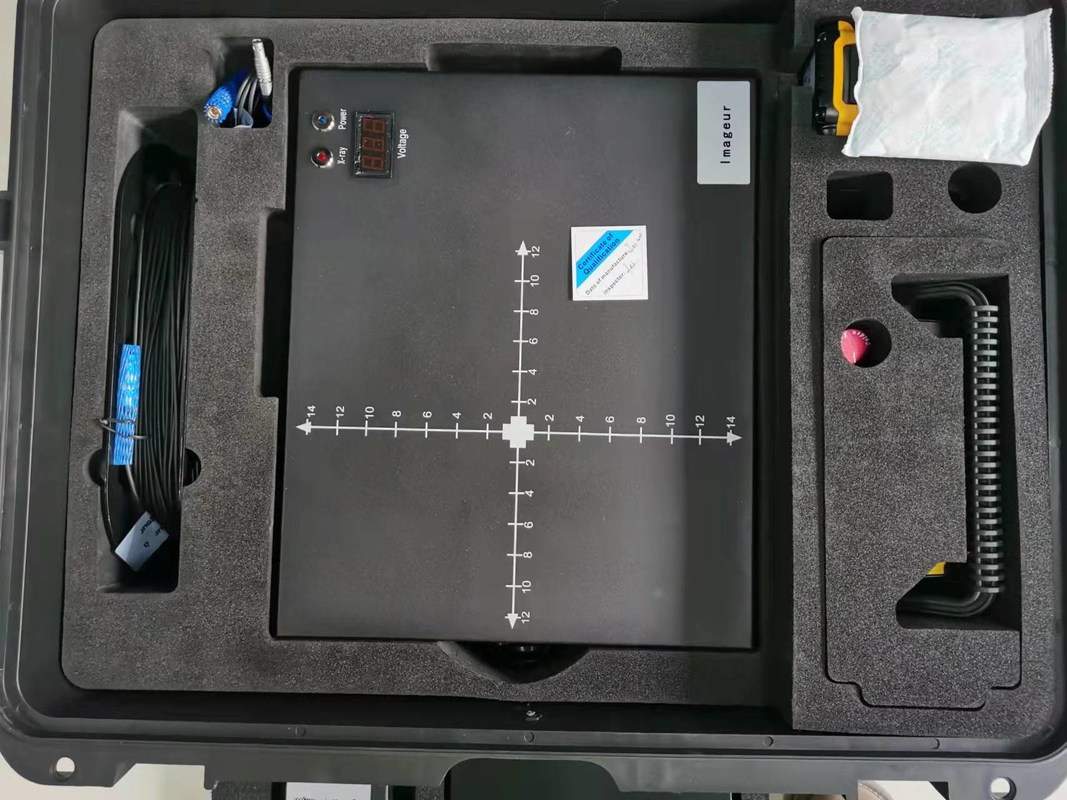

HWXRY-01 uses Japanese original and hypersensitive X-ray detection panel with 768*576 pixels. The wedge panel design allows the operator to get the imager into very confined spaces whilst the size is suitable for scanning abandoned bags and suspicious packages.
The system comprises:
A robust detector panel
A portable x-ray generator
A laptop imaging station
Batteries and chargers
Wired and wireless communication options
Software
Specification
| XR200 Source | |
| Operating Mode | Pulse, it launches 4000 pulses each time when charged fully. |
| Best Detecting Distance | 0.7m |
| Weight | 5.5 Kg (with battery) |
| X-ray Leakage Dose Rate | Less than 200Gy/h and 20Gy/h at the distance of 5cm and 1cm away from the surface of x-ray tube. |
| Penetration Capacity | 12mm steel |
| Pulse | 3mR |
| Voltage | 150kV |
| X-ray Tube Lifetime | 10 million pulse life(The tube can be replaced) |
| Working time(fully charged) | 4 hrs |
| Resolution Ratio | It can penetrate 16mm aluminum to see 38AWG (0.1mm) wire. |
| X-Ray Detector Panel | |
| Imager Size | 375×315×150mm |
| Imaging Window | 305×254mm |
| Weight | 5.6 Kg (with battery) |
| X-ray Detection system | Japanese original and hypersensitive X-ray detection system, 768*576 pixels. |
| Battery | 12V lithium hydrogen battery |
| Power Supply | 3 Hours |
| Working Temperature | -15℃～+50℃ |
| Relative Humidity | 10%~90% (no moisture condensation) |
| Imaging Station | |
| Type | Laptop computer Lenovo E4 3A |
| Processor | Dual Core T4400 |
| Memory |
RAM:2G Hard drive:500G |
| Operating system | Microsoft Windows XP |
| Power | Mains and battery |
