Portable X-Ray Scanning System high quality images, portable x ray scanner
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | CE,ROHS,ISO,etc |
| Model Number: | HWXRY-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Two cases Big one： 67cm* 51cm* 25cm G.W19.5kg Small one：49cm* 41cm* 18cm G.W 9kg |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets Per Month |
|
Detail Information |
Product Description
Description:

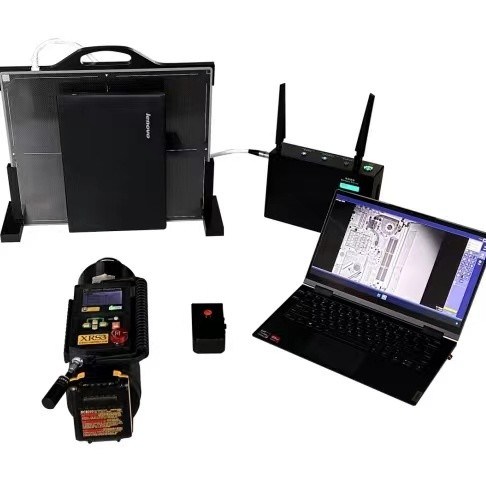

This device is a light weight ,portable,battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative . It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in less time.
Applied scene

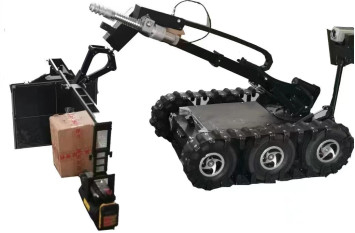

EOD/IED
Widespread use of explosives presents immense growing challenges and threats to civilians, law enforcement forces, military and police bomb squads and EOD teams worldwide. The key objective of Bomb Disposal Operators is to accomplish their task as safely as possible. For that reason, EOD equipment, and specifically portable x-ray scanner systems play a crucial role in meeting this objective -providing real time, high quality images of suspected objects, while ensuring the safety of all parties involved.

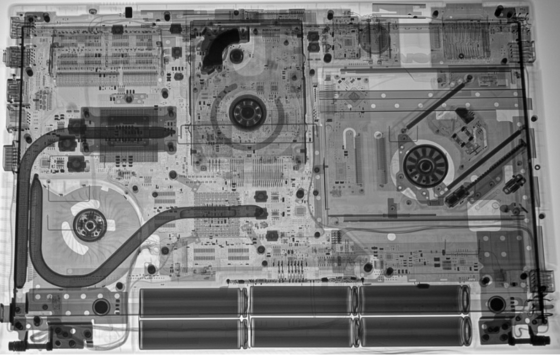

The portable X-ray scanner system plays a crucial role in inspecting everyday objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room. When guarding a public figure, or an embassy, these items as well as innocent looking gifts or mobile phones must be inspected for the slightest alteration in their electronic components which may imply it is being used as a listening device.
Border Control
The portable X-ray scanner systems are perfect for contraband – drugs or weapons, and IED detection by examination of suspected items across borders and perimeters. It allows the operator to carry the complete system in his car or in a backpack when needed. The inspection of suspected items is quick and simple and provides the highest image quality for on the spot decisions.
Customs
In customs, check point officials must perform a quick, non-intrusive and non-destructive inspection of suspected vehicles and packages with whom they come across on a daily basis.The portable X-ray scanner systems offer an excellent inspection solution for check points that do not have large cargo or vehicle inspection systems or require a complementary solution.It is ideal for contraband inspection such as ammunition, weapons, drugs, jewelry and alcohol.
Features
● Can be assembled rapidly on-site.
● Imaging plate using amorphous silicon technology, image is very clear.
● Can operate with remote control in the rear.
● Powerful image enhancement and Analysis tools.
● Intuitive interface, Image splicing infinite,Simplicity of operation.
● User-friendly software.
Technical Specification
| A | Technical Specification of the imaging panel | |
| 1 | Detector Type | Amorphous Silicon with TFT |
| 2 | Scintillator | CsI (Cesium Iodide) |
| 3 | Imaging Area | 433mm x 354mm (Standard) |
| 4 | Imaging Panel Thickness | 15mm |
| 5 | Pixel pitch | 154 μm |
| 6 | Pixel resolution | 2816X2304 pixels |
| 7 | Pixel Depth | 16 bits |
| 8 | Limiting Resolution | 3.3 lp/mm |
| 9 | Dynamic range | >80dB |
| 10 | Frame rate | 0.5fps |
| 11 | Network Interface | Gigabit Ethernet |
| 12 | Image Acquisition Time | 4-5s (without interference) |
| 13 | Exposure Control | Auto |
| 14 | Imaging Panel Size |
L460 x H430 x D15mm (with handle) L460 x H384 x D15mm (without handle) |
| 15 | Weight | 3.9kg without battery |
| 16 | Outer cover | Carbon fiber plate, high-strength aluminum alloy |
| 17 | Power dissipation | <8W (standby mode) / 22W (motion) |
| 18 | Working hours | DC 24V Battery more than 5hours |
| 19 | Communication | Wired: 50 meters cable on a roller, TCP/IP Ethernet |
|
Wireless: Wi-Fi (802.11ac), 5745-5825MHZ; No less than 70m without interference |
||
| 20 | Operating Environment | Temperature: -10℃ ~ +40℃ |
| Humidity: 30% ~ 75%RH Non-condensing | ||
| 21 | Storage Environment | Temperature: -20℃ ~ +55℃ |
| Humidity: 10% ~ 90%RH Non-condensing | ||
| Technical Specification-x-ray Generator | ||
| 1 | Operating Mode | Pulse, it launches 6000 pulses each time when charged fully |
| 2 | Maximum Emissivity | 3000pulses/hour |
| 3 | Pulse Emissivity | 1-99pulses |
| 4 | Working hours | More than 5 hours |
| Battery | Two Rechargeable Li Ion batteries | |
| Charging time: one hour | ||
| 5 | Voltage | 150kV, Pulsed (safety to operator) |
| 6 | Penetration | 50mm Aluminium Plate |
| 7 | Weight | 5Kg with battery |
| 8 | Safety | Key Switch, Audible & Visible alarm signs |
| 9 | Operating Environment | -10℃ ~ +50℃ |
| Technical Specification – Imaging Station (PC) | ||
| 1 | Type | Laptop computer |
| 2 | Processor | Core i5 processor |
| 3 | Display | 14'' Full HD LED Touch Screen 360° rotation |
| 4 | Memory | 4GB RAM |
| 5 | Hard Disk | 500GB |
| 6 | Operating system | English MS Windows 10 |
| 7 | Software |
Automatic Optimization, Invert, Revert, Pseudo color image, Rotate, Flip Horizontal, Flip Vertical, Zoom, Deep Focus, Polygon On screen measurement, Merge, Save, 3D image |
