Battery Powered Ammunition X Ray Inspection Systems 16mm Aluminum Penetration
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HWXRY-01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD per set FOB Shenzhen |
Packaging Details: | Carton package, wooden package |
Delivery Time: | 15 working days |
Payment Terms: | T/T |
Supply Ability: | 50 sets per month |
Detail Information |
|||
Name: | Portable Xray Baggage Scanner | Working Time(fully Charged): | 4 Hrs |
---|---|---|---|
Resolution Ratio: | It Can Penetrate 16mm Aluminum To See 38AWG (0.1mm) Wire. | Imager Size: | 375×315×150mm |
X-ray Detection System: | Japanese Original And Hypersensitive X-ray Detection System, 768*576 Pixels. | Relative Humidity: | 10%~90% (no Moisture Condensation) |
High Light: | battery powered x ray inspection systems,ammunition x ray inspection systems,battery portable x ray inspection system |
Product Description
16mm aluminum Penetration, Portable Xray Baggage Scanner
Portable Xray Baggage Scanner
Model: HWXRY-01
HWXRY-01 is a lightweight, portable, battery powered x-ray security inspection system designed in co-operation with first responders and EOD teams to meet the needs of the field operative. HWXRY-01 uses Japanese original and hypersensitive X-ray detection panel with 768*576 pixels. The wedge panel design allows the operator to get the imager into very confined spaces whilst the size is suitable for scanning abandoned bags and suspicious packages.
Features:
Self-check wire’s connection
High penetration with sub-millimeter resolution
Real-time images
Designed for rapid deployment and ease of use
Powerful image enhancement and analysis tools
Intuitive,user-friendly software
Two waterproof and rugged carrying cases.
Specification
XR200 Source | |
Operating Mode | Pulse, it launches 4000 pulses each time when charged fully. |
Best Detecting Distance | 0.7m |
Weight | 5.5 Kg (with battery) |
X-ray Leakage Dose Rate | Less than 200Gy/h and 20Gy/h at the distance of 5cm and 1cm away from the surface of x-ray tube. |
Penetration Capacity | 12mm steel |
Pulse | 3mR |
Voltage | 150kV |
X-ray Tube Lifetime | 10 million pulse life(The tube can be replaced) |
Working time(fully charged) | 4 hrs |
Resolution Ratio | It can penetrate 16mm aluminum to see 38AWG (0.1mm) wire. |
X-Ray Detector Panel | |
Imager Size | 375×315×150mm |
Imaging Window | 305×254mm |
Weight | 5.6 Kg (with battery) |
X-ray Detection system | Japanese original and hypersensitive X-ray detection system, 768*576 pixels. |
Battery | 12V lithium hydrogen battery |
Power Supply | 3 Hours |
Working Temperature | -15℃~+50℃ |
Relative Humidity | 10%~90% (no moisture condensation) |
Imaging Station | |
Type | Laptop computer Lenovo E4 3A |
Processor | Dual Core T4400 |
Memory |
RAM:2G Hard drive:500G |
Operating system | Microsoft Windows XP |
Power | Mains and battery |

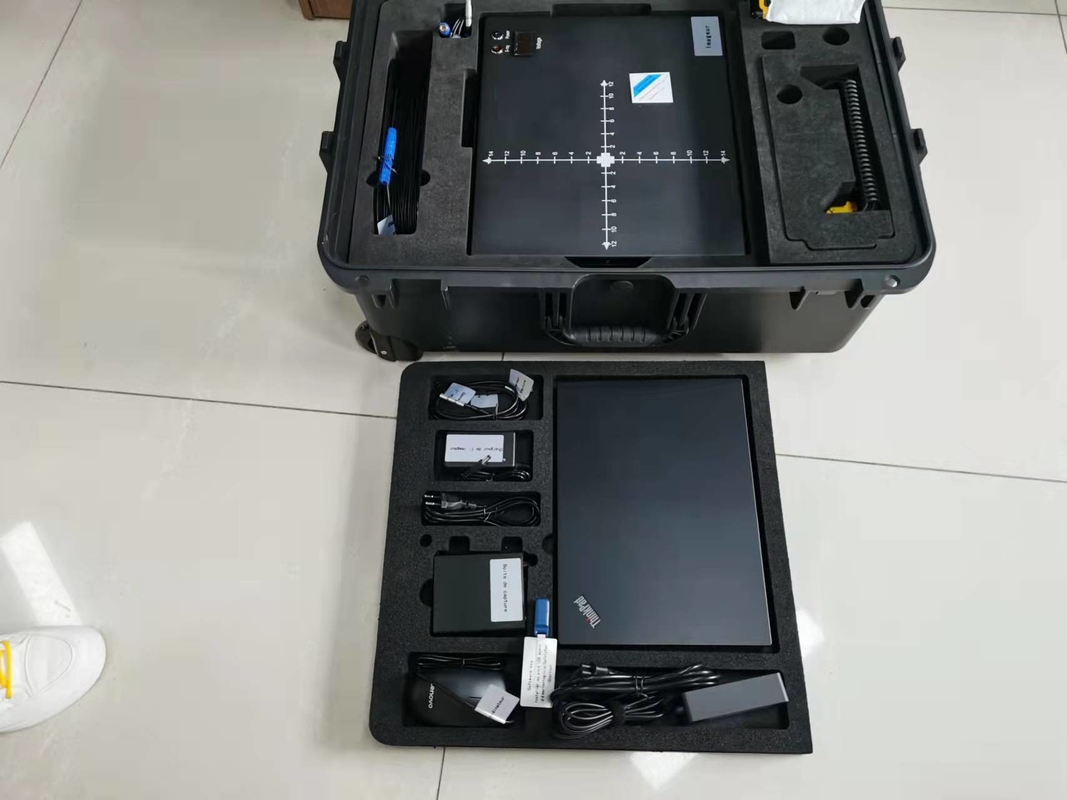

The system comprises:
A robust detector panel
A portable x-ray generator
A laptop imaging station
Batteries and chargers
Wired and wireless communication options
Software
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
Jiangsu Factory
Shenzhen Research Centre
Overseas Exhibitions
Staff Pictures
