• 150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life
150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life

150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life

Product Details:

Place of Origin: China
Brand Name: HW
Certification: YES
Model Number: HWXRY01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: Carton package, wooden package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Portable Xray Screening System Relative Humidity: 10%~90% (no Moisture Condensation)
Operating Mode: Pulse, It Launches 4000 Pulses Each Time When Charged Fully. Penetration Capacity: 12mm Steel Plate
High Light:

150kv portable x ray inspection system

,

weapons portable x ray inspection system

Product Description

150kV Voltage, 10 million pulse life Portable Xray Screening System



Portable Xray Screening System







Model: HWXRY-01





HWXRY-01 utilizes the well tried and tested EOD x-ray triggering and imaging software to produce high resolution images. Images can be auto stored for evidential purposes or manipulated to further enhance regions of interest.





Features:



Self-check wire’s connection

High penetration with sub-millimeter resolution

Real-time images

Designed for rapid deployment and ease of use

Powerful image enhancement and analysis tools

Intuitive,user-friendly software

Two waterproof and rugged carrying cases.



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 0

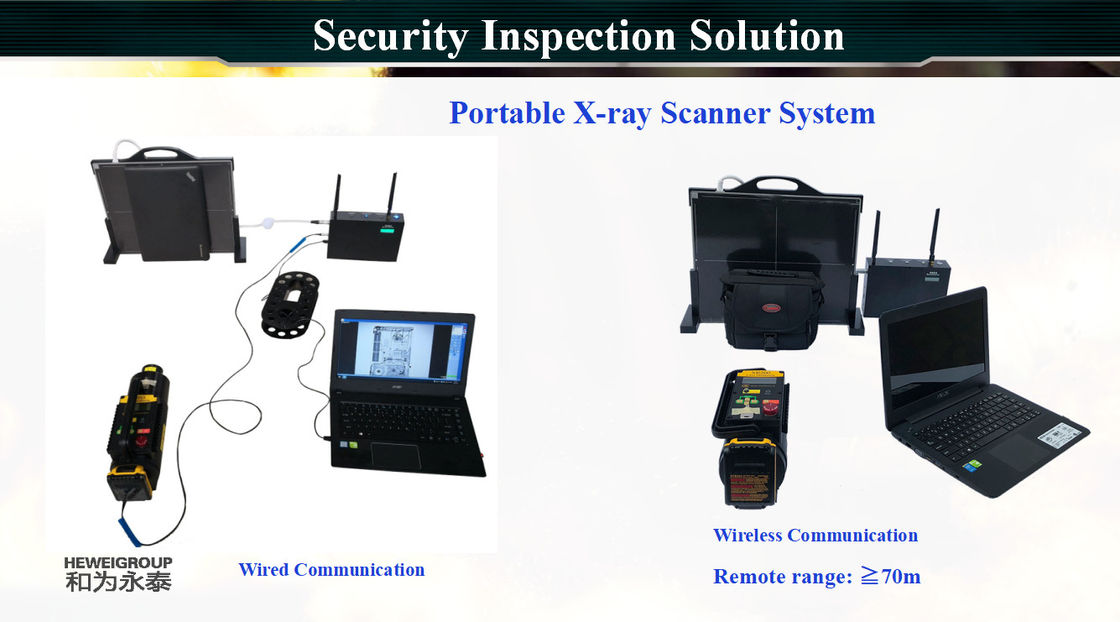

The system comprises:

A robust detector panel

A portable x-ray generator

A laptop imaging station

Batteries and chargers

Wired and wireless communication options

Software





Specification





XR200 Source
Operating Mode Pulse, it launches 4000 pulses each time when charged fully.
Best Detecting Distance 0.7m
Weight 5.5 Kg (with battery)
X-ray Leakage Dose Rate Less than 200Gy/h and 20Gy/h at the distance of 5cm and 1cm away from the surface of x-ray tube.
Penetration Capacity 12mm steel
Pulse 3mR
Voltage 150kV
X-ray Tube Lifetime 10 million pulse life(The tube can be replaced)
Working time(fully charged) 4 hrs
Resolution Ratio It can penetrate 16mm aluminum to see 38AWG (0.1mm) wire.
X-Ray Detector Panel
Imager Size 375×315×150mm
Imaging Window 305×254mm
Weight 5.6 Kg (with battery)
X-ray Detection system Japanese original and hypersensitive X-ray detection system, 768*576 pixels.
Battery 12V lithium hydrogen battery
Power Supply 3 Hours
Working Temperature -15℃~+50℃
Relative Humidity 10%~90% (no moisture condensation)
Imaging Station
Type Laptop computer Lenovo E4 3A
Processor Dual Core T4400
Memory

RAM:2G

Hard drive:500G

Operating system Microsoft Windows XP
Power Mains and battery





In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.

In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.

In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 1



Jiangsu Factory



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 2



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 3



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 4





Shenzhen Research Centre



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 5

150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 6





Overseas Exhibitions



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 7



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 8





Staff Pictures

150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 9



150kv Voltage Weapons Portable X Ray Inspection System 10 Million Pulse Life 10
