Jewelry Drugs Portable X Ray System Security Screening Light Weight
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HWXRY-01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD per set FOB Shenzhen |
Packaging Details: | Carton package, wooden package |
Delivery Time: | 15 working days |
Payment Terms: | T/T |
Supply Ability: | 50 sets per month |
Detail Information |
|||
Name: | Portable Xray Security Screening System | Pixels: | 768*576 |
---|---|---|---|
Operating Mode: | Pulse, It Launches 4000 Pulses Each Time When Charged Fully. | X-ray Leakage Dose Rate: | Less Than 200Gy/h And 20Gy/h At The Distance Of 5cm And 1cm Away From The Surface Of X-ray Tube. |
Voltage: | 150kV | Imager Size: | 375×315×150mm |
High Light: | drugs portable x ray system,portable x ray system light weight,jewelry portable x ray inspection system |
Product Description
Light Weight, Portable Xray Security Screening System
Portable Xray Security Screening System
Model: HWXRY-01
HWXRY-01 is a lightweight, portable, battery powered x-ray security inspection system designed in co-operation with first responders and EOD teams to meet the needs of the field operative. HWXRY-01 uses Japanese original and hypersensitive X-ray detection panel with 768*576 pixels. The wedge panel design allows the operator to get the imager into very confined spaces whilst the size is suitable for scanning abandoned bags and suspicious packages.
HWXRY-01 utilizes the well tried and tested EOD x-ray triggering and imaging software to produce high resolution images. Images can be auto stored for evidential purposes or manipulated to further enhance regions of interest.

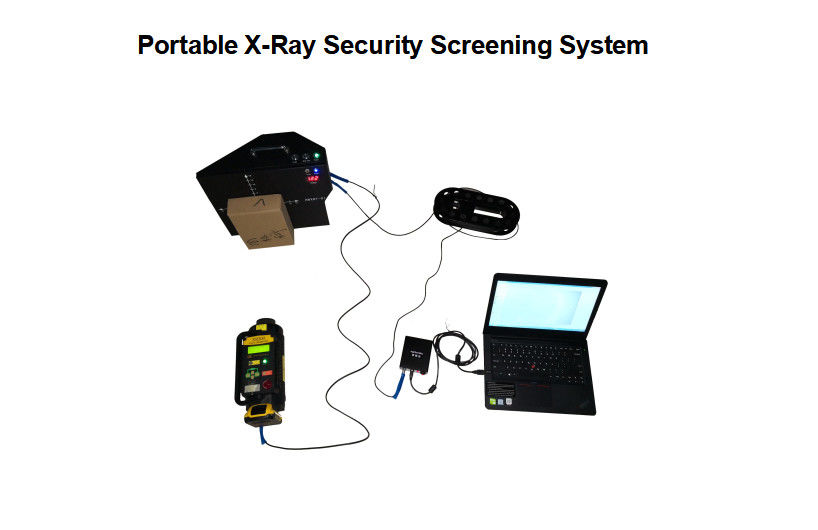

The system comprises:
A robust detector panel
A portable x-ray generator
A laptop imaging station
Batteries and chargers
Wired and wireless communication options
Software
Features:
Self-check wire’s connection
High penetration with sub-millimeter resolution
Real-time images
Designed for rapid deployment and ease of use
Powerful image enhancement and analysis tools
Intuitive,user-friendly software
Two waterproof and rugged carrying cases.
Specification
XR200 Source | |
Operating Mode | Pulse, it launches 4000 pulses each time when charged fully. |
Best Detecting Distance | 0.7m |
Weight | 5.5 Kg (with battery) |
X-ray Leakage Dose Rate | Less than 200Gy/h and 20Gy/h at the distance of 5cm and 1cm away from the surface of x-ray tube. |
Penetration Capacity | 12mm steel |
Pulse | 3mR |
Voltage | 150kV |
X-ray Tube Lifetime | 10 million pulse life(The tube can be replaced) |
Working time(fully charged) | 4 hrs |
Resolution Ratio | It can penetrate 16mm aluminum to see 38AWG (0.1mm) wire. |
X-Ray Detector Panel | |
Imager Size | 375×315×150mm |
Imaging Window | 305×254mm |
Weight | 5.6 Kg (with battery) |
X-ray Detection system | Japanese original and hypersensitive X-ray detection system, 768*576 pixels. |
Battery | 12V lithium hydrogen battery |
Power Supply | 3 Hours |
Working Temperature | -15℃~+50℃ |
Relative Humidity | 10%~90% (no moisture condensation) |
Imaging Station | |
Type | Laptop computer Lenovo E4 3A |
Processor | Dual Core T4400 |
Memory |
RAM:2G Hard drive:500G |
Operating system | Microsoft Windows XP |
Power | Mains and battery |
