Powerful Image Enhancement Portable X Ray Inspection System
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWXRY-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | carton package, |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Portable Xray Inspection System | Operating Mode: | Pulse, It Launches 4000 Pulses Each Time When Fully Charged. |
|---|---|---|---|
| Weight: | 5.5 Kg (with Battery) | X-ray Tube Lifetime: | 10 Million Pulse Life(The Tube Can Be Replaced) |
| Imager Size: | 375×315×150mm | X-ray Detection System: | Japanese Original And Hypersensitive X-ray Detection System, 768*576 Pixels. |
| High Light: | powerful portable x ray inspection system,battery portable x ray inspection system,powerful image enhancement handheld baggage scanner |
||
Product Description
Intuitive, User-friendly software, powerful image enhancement portable xray inspection system
Portable X-Ray Security Screening System
Model: HWXRY-01
Our portable x-ray security screening system is a lightweight, portable, battery powered x-ray security inspection system designed in co-operation with first responders and EOD teams to meet the needs of the field operative. HWXRY-01 uses Japanese original and hypersensitive X-ray detection panel with 768*576 pixels. The wedge panel design allows the operator to get the imager into very confined spaces whilst the size is suitable for scanning abandoned bags and suspicious packages.

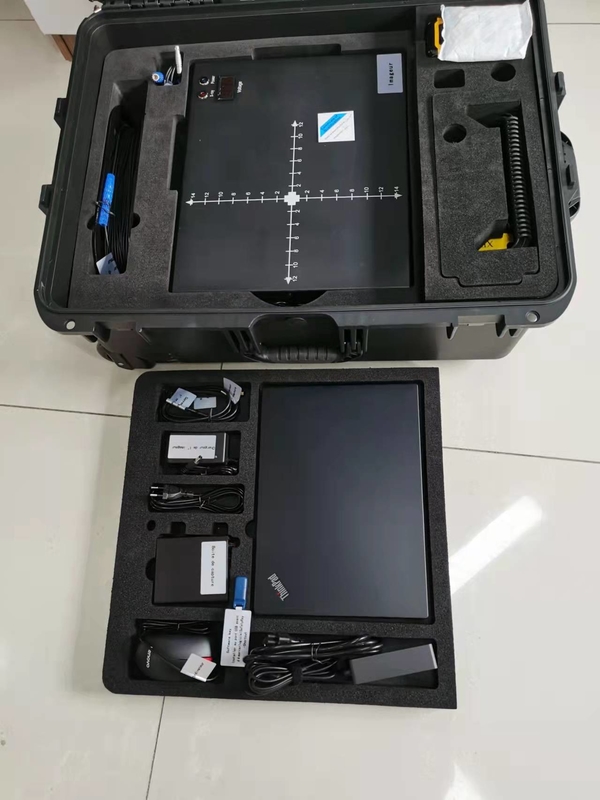

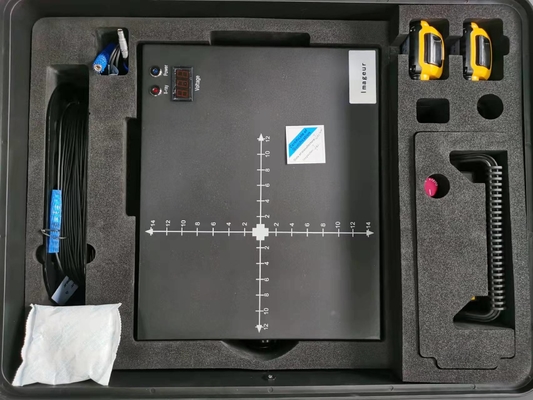

The system comprises:
A robust detector panel
A portable x-ray generator
A laptop imaging station
Batteries and chargers
Wired and wireless communication options
Software
Specification
| XR200 Source | |
| Operating Mode | Pulse, it launches 4000 pulses each time when fully charged. |
| Best Detecting Distance | 0.7m |
| Weight | 5.5 Kg (with battery) |
| X-ray Leakage Dose Rate | Less than 200Gy/h and 20Gy/h at the distance of 5cm and 1cm away from the surface of x-ray tube. |
| Penetration Capacity | 12mm steel |
| Pulse | 3mR |
| Voltage | 150kV |
| X-ray Tube Lifetime | 10 million pulse life(The tube can be replaced) |
| Working time(fully charged) | 4 hrs |
| Resolution Ratio | It can penetrate 16mm aluminum to see 38AWG (0.1mm) wire. |
| X-Ray Detector Panel | |
| Imager Size | 375×315×150mm |
| Imaging Window | 305×254mm |
| Weight | 5.6 Kg (with battery) |
| X-ray Detection system | Japanese original and hypersensitive X-ray detection system, 768*576 pixels. |
| Battery | 12V lithium hydrogen battery |
| Power Supply | 3 Hours |
| Working Temperature | -15℃～+50℃ |
| Relative Humidity | 10%~90% (no moisture condensation) |
| Imaging Station | |
| Type | Laptop computer Lenovo E4 3A |
| Processor | Dual Core T4400 |
| Memory |
RAM:2G Hard drive:500G |
| Operating system | Microsoft Windows XP |
| Power | Mains and battery |
