7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims

7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims

Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: Yes
Model Number: HW-IMS-311

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD per set FOB Shenzhen
Packaging Details: carton package, wooden package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Handheld IMS Explosive Detector Work Humidity: <95% (below 40℃)
Data Storage: 32GB, Support Backup Through USB Or Ethernet Display Screen: 7inch LCD Touch Screen
Sampling Method: Particle Collection Via Wiping Detection Sensitivity: Nanogram Level (10-9-10-6gram)
High Light:

lcd portable explosive detector

,

ims portable explosive detector

,

handheld ion mobility spectrometry explosives detection

Product Description

7-inch TFT LCD touch screen, Storage of 500,000 raw data, Handheld IMS Explosive Detector



Handheld IMS Explosive Detector



Description

The device is based on the principle of ion mobility spectrum (IMS), using a new non-radioactive ionization source, which can detect and analyze trace explosive particles, and the detection sensitivity reaches the nanogram level. The special swab is swabbed and sampled on the surface of the suspicious object. After the swab is inserted into the detector, the detector will immediately report the specific composition and type of explosives.

The product is portable and easy to operate, especially suitable for flexible detection on site. It is widely used for explosive inspection in civil aviation, rail transit, customs, border defense and crowd gathering places, or as a tool for material evidence inspection by national law enforcement agencies.

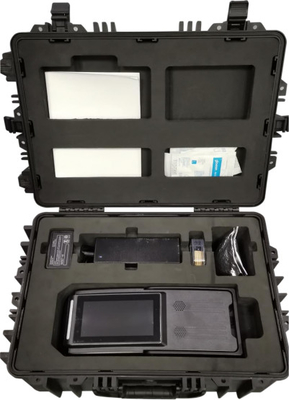

7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 0





Performance Advantage

●High safety, using non - radioactive ionization source

●Non-radioactive IMS technology, high sensitivity and low false alarm

●High detection efficiency, continuous detection, automatic calibration, sound-light alarm, automatic cleaning, self-diagnosis, without extra manual operation

●Remote diagnose and User friendly

●New Android system makes operation much easier and efficient

●Simple and beautiful appearance design, light weight, easy to carry

●Good human-computer interaction design, with 7-inch TFT LCD touch screen

●Multi-data interface and supporting software, storage of 500,000 raw data

●Upgradable library



Technical Specs

Technology IMS (Ion mobility spectroscopy technology)
Analysis time ≤8s
Ion Source Non-radioactive ionization source
Detection mode Trace explosive mode
Cold Start-up time ≤20min
Sampling method Particle collection via wiping
Detection Sensitivity Nanogram level (10-9-10-6gram)
Substances detected TNT,RDX,BP,PETN,NG,AN,HMTD,TETRYL,TATP, etc.
False alarm rate ≤ 1%
Power Adapter AC 100-240V, 50/60Hz, 240W
Display Screen 7inch LCD touch screen
Com Port USB/LAN/VGA
Data Storage 32GB, support backup through USB or Ethernet
Battery Working Time More than 3hours
Alarming method Visual and Audible
Dimensions L392mm×W169mm×H158mm
Weight 4.8kg
Storage Temperature - 20 ℃ ~ 55 ℃
Working Temperature - 20 ℃ ~ 55 ℃
Work Humidity <95% (below 40℃)

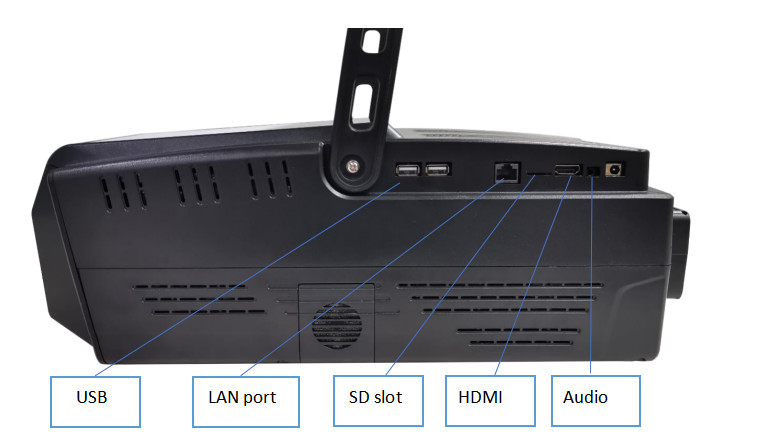

7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 1



7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 2

7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 3



7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 4



7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 5



7 Inch Tft Lcd Touch Screen Portable Explosive Detector Handheld Ims 6
