Baggage 10 Million Pulse Life Portable X Ray Screening System
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWXRY01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | carton package, wooden package 72* 59* 53cm, 43 KG |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | 10 Million Pulse Life X-ray Tube Lifetime Portable X-Ray Security Screening System | Working Time(fully Charged): | 4hrs |
|---|---|---|---|
| Resolution Ratio: | It Can Penetrate 16mm Aluminum To See 38AWG (0.1mm) Wire. | X-ray Tube Lifetime: | 10 Million Pulse Life(The Tube Can Be Replaced) |
| X-ray Leakage Dose Rate: | Less Than 200Gy/h And 20Gy/h At The Distance Of 5cm And 1cm Away From The Surface Of X-ray Tube. | Imager Size: | 375×315×150mm |
| High Light: | 4hrs portable x ray screening system,baggage portable x ray screening system,10 million pulse portable baggage scanner |
||
Product Description
10 million pulse life X-ray Tube Lifetime Portable X-Ray Security Screening System
Portable X-Ray Security Screening System
Model: HWXRY-01
HWXRY-01 is a lightweight, portable, battery powered x-ray security inspection system designed in co-operation with first responders and EOD teams to meet the needs of the field operative. HWXRY-01 uses Japanese original and hypersensitive X-ray detection panel with 768*576 pixels. The wedge panel design allows the operator to get the imager into very confined spaces whilst the size is suitable for scanning abandoned bags and suspicious packages.
HWXRY-01 utilizes the well tried and tested EOD x-ray triggering and imaging software to produce high resolution images. Images can be auto stored for evidential purposes or manipulated to further enhance regions of interest.

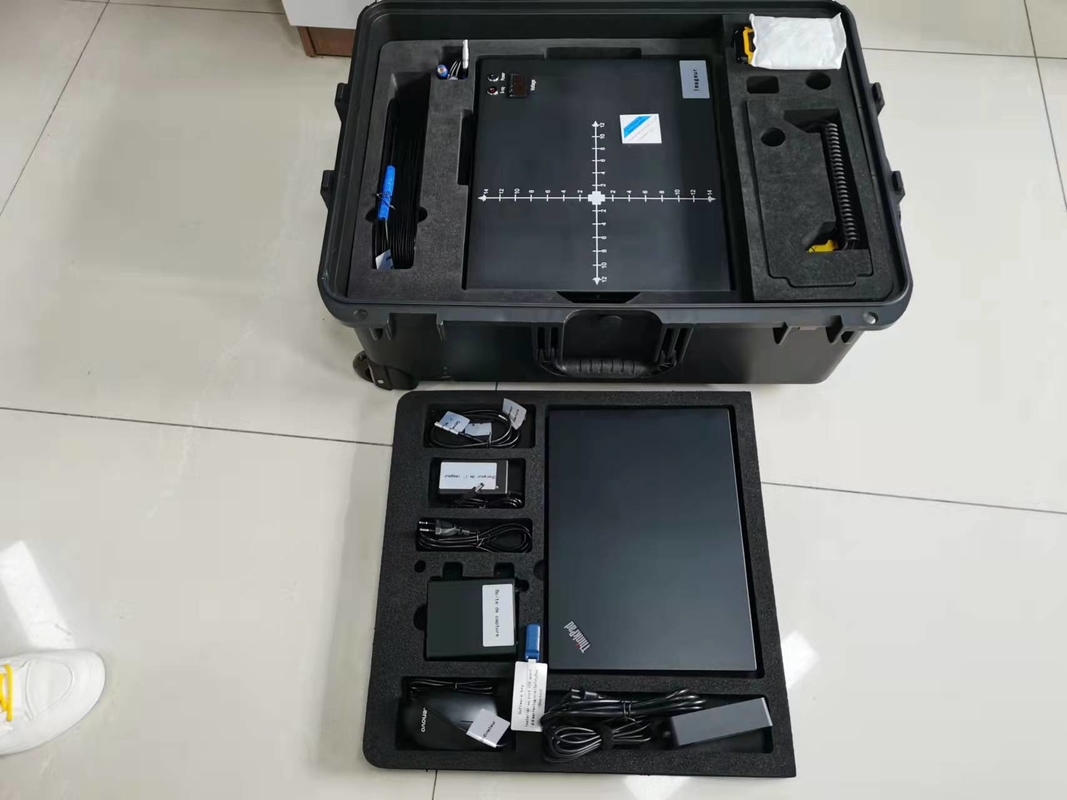

The system comprises:
A robust detector panel
A portable x-ray generator
A laptop imaging station
Batteries and chargers
Wired and wireless communication options
Software
Features:
Self-check wire’s connection
High penetration with sub-millimeter resolution
Real-time images
Designed for rapid deployment and ease of use
Powerful image enhancement and analysis tools
Intuitive,user-friendly software
Two waterproof and rugged carrying cases.
Specification
| XR200 Source | |
| Operating Mode | Pulse, it launches 4000 pulses each time when fully charged. |
| Best Detecting Distance | 0.7m |
| Weight | 5.5 Kg (with battery) |
| X-ray Leakage Dose Rate | Less than 200Gy/h and 20Gy/h at the distance of 5cm and 1cm away from the surface of x-ray tube. |
| Penetration Capacity | 12mm steel |
| Pulse | 3mR |
| Voltage | 150kV |
| X-ray Tube Lifetime | 10 million pulse life(The tube can be replaced) |
| Working time(fully charged) | 4 hrs |
| Resolution Ratio | It can penetrate 16mm aluminum to see 38AWG (0.1mm) wire. |
| X-Ray Detector Panel | |
| Imager Size | 375×315×150mm |
| Imaging Window | 305×254mm |
| Weight | 5.6 Kg (with battery) |
| X-ray Detection system | Japanese original and hypersensitive X-ray detection system, 768*576 pixels. |
| Battery | 12V lithium hydrogen battery |
| Power Supply | 3 Hours |
| Working Temperature | -15℃～+50℃ |
| Relative Humidity | 10%~90% (no moisture condensation) |
| Imaging Station | |
| Type | Laptop computer Lenovo E4 3A |
| Processor | Dual Core T4400 |
| Memory |
RAM:2G Hard drive:500G |
| Operating system | Microsoft Windows XP |
| Power | Mains and battery |
