10s Analysis Time Particle Vapor Abs Handheld Explosive Detector
Product Details:
Place of Origin: | Made-in-China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HW-ERI |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 12000/ set FOB Shenzhen |
Packaging Details: | carton package, wooden package |
Delivery Time: | 20 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Name: | Less Than 10s Analysis Time, Particle And Vapor Handheld Explosive Detector | Less Than 10s Analysis Time, Particle And Vapor Handheld Explosive Detector: | Amplified Fluorescent Polymer Quenching Sensor |
---|---|---|---|
Amplified Fluorescent Polymer Quenching Sensor: | ≤10s | Start-up Time: | ≤30s |
Sampling Method: | Particle And Vapor | Particle And Vapor: | -20℃~60℃ |
False Alarm Rate: | ≤ 1% | ||
High Light: | 10s analysis time explosive vapour detector,abs handheld explosive detector,particle handheld explosive detector |
Product Description
Less than 10s analysis time, Particle and Vapor handheld explosive detector

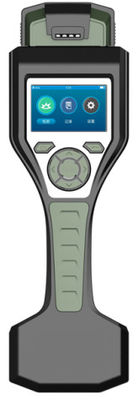

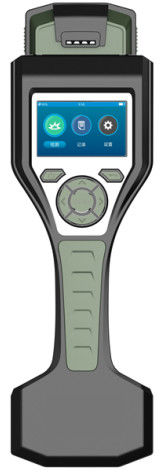

Handheld Explosive Detector
Model:HW-ERI
Introduction:
The newly developed HW-ERI product is the portable explosive detector with the highest detection limit and the most explosives in the domestic and foreign markets. It is based on fluorescent conjugated polymers.The excellent ABS polycarbonate casing is sturdy and elegant. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.More than 30 kinds of explosives can be detected. The product is calibrated automatically,can be widely used in civil aviation, rail transit, military border defense, public inspection law, customs, quality inspection and other fields.
Specification:
Technology | Amplified Fluorescent Polymer Quenching Sensor |
Analysis time | ≤10s |
Start-up time | ≤30s |
Sampling method | Particle and Vapor |
Detection Sensitivity | Particulate:PPM |
Vapor: PPM | |
Operating TEMP | -20℃~60℃ |
False alarm rate | ≤ 1% |
Power Consumption | ≤5.5W |
Rated Capacity | 65.5Wh |
Rated Energy | 7800mAh |
Display Screen | 3"TFT Color display Screen |
Com Port | USB2.0 |
Data Storage | ≥200000pieces of record |
Battery | Two Li-ion Rechargeable Battery |
Battery Working Time | Single battery time up to 8 hours |
Alarming method | Visual / Audible / Vibration |
Dimensions | 320mm × 110mm × 65mm |
Weight | ≦1.2kg including battery |
Protection Level | IP53 |
Substances detected |
Military, Commercial, and Homemade Explosives including: TNT, DNT, MNT, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others. |
