Product Details:

Place of Origin: Made-in-China
Brand Name: HEWEI
Certification: YES,CE certificate
Model Number: HWX16C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 11000~29000/ set FOB Shenzhen
Packaging Details: carton package, wooden package, 62*31.5*46.5cm
Delivery Time: 15-30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Technology: Amplified Fluorescent Polymer Quenching Sensor Analysis Time: ≤5s
Start-up Time: ≤10s Sampling Method: Particle And Vapor
Detection Sensitivity: Particulate: TNT LOD ≤0.05ng Operating TEMP: - 20 ℃ ~ 55 ℃
False Alarm Rate: ≤ 1% Power Consumption: 7.5W
Rated Voltage: 7.4V Rated Capacity: 65.5Wh
Rated Energy: 8850mAh Display Screen: 3"TFT Color Display Screen
Substances Detected: Military, Commercial, And Homemade Explosives Including: TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, And Others.
High Light:

trace portable explosive detector

,

handheld portable explosive detector

,

7.5w portable explosive detector

Product Description

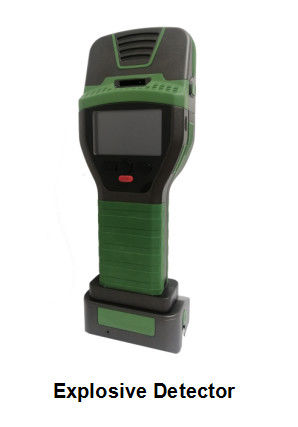

Handheld Trace Explosive Detector



HWX16C

Description

The newly developed HWX16C product is the portable trace explosive detector with the highest detection limit and the most explosives in the domestic and foreign markets. The excellent ABS polycarbonate casing is sturdy and elegant. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected. The product is calibrated automatically.

Features

  • Fluorescence based
  • No radioactive source
  • Automatic calibration
  • High sensitivity and low false alarm rate
  • Quick start and detection speed
  • Broad explosive identification
  • Convenient operation

Specifications

NO

Technical Specs



1 Technology Amplified Fluorescent Polymer Quenching Sensor
2 Analysis time ≤5s
3 Start-up time ≤10s
4 Sampling method Particle and Vapor
5 Detection Sensitivity Particulate: TNT LOD ≤0.05ng
Vapor: PPM
6 Operating TEMP - 20 ℃ ~ 55 ℃
7 False alarm rate ≤ 1%
8 Power Consumption 7.5W
9 Rated voltage 7.4V
10 Rated Capacity 65.5Wh
11 Rated Energy 8850mAh
12 Display Screen 3"TFT Color display Screen
13 Com Port USB2.0
14 Data Storage ≥100000pieces of record
15 Battery Two Li-ion Rechargeable Battery
16 Battery Working Time Single battery time up to 8 hours
17 Battery Charging Time ≦3.5hours
18 Alarming method Visual / Audible / Vibration
19 Dimensions 300mm × 106mm × 71mm
20 Weight ≦1.05kg including battery
21 Protection Level IP53
22 Substances detected

Military, Commercial, and Homemade Explosives including:

TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others.
