Handheld Trace Portable Explosive Detector With High Detection Limit 0.05ng

Handheld Trace Portable Explosive Detector With High Detection Limit 0.05ng

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: YES
Model Number: HWX16C

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD/Set FOB shenzhen
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Technology: Amplified Fluorescent Polymer Quenching Sensor Analysis Time: ≤5s
Start-up Time: ≤10s Rated Capacity: 65.5Wh
Rated Energy: 8850mAh Dimensions: 300mm × 106mm × 71mm
High Light:

hand held bomb detector

,

bomb detection devices

Product Description

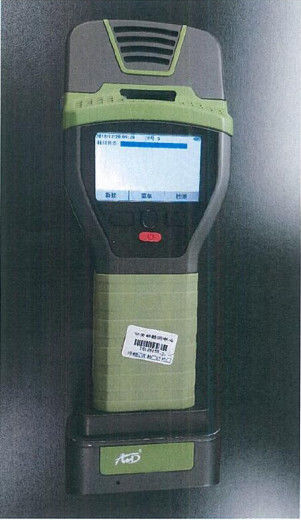

Handheld Trace Explosive Detector

Model: HWX16C

Description
The newly developed HWX16C product is a portable trace explosive detector with high detection limit in the domestic and foreign markets. The excellent ABS polycarbonate casing is sturdy and elegant. The continuous working time of single battery is more than 8 hours. The cold start time is within 10 seconds.The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected. The product is calibrated automatically.

Features

  • Fluorescence based

  • No radioactive source

  • Automatic calibration

  • High sensitivity and low false alarm rate

  • Quick start and detection speed

  • Broad explosive identification

  • Convenient operation

    Specifications

Technology Amplified Fluorescent Polymer Quenching Sensor
Analysis time ≤5s
Start-up time ≤10s
Sampling method Particle and Vapor
Detection Sensitivity Particulate: TNT LOD ≤0.05ng
Vapor: PPM
Operating TEMP - 20 ℃ ~ 70 ℃
False alarm rate ≤ 1%
Power Consumption 7.5W
Rated voltage 7.4V
Rated Capacity 65.5Wh
Rated Energy 8850mAh
Display Screen 3"TFT Color display Screen
Com Port USB2.0
Data Storage ≥100000pieces of record
Battery Two Li-ion Rechargeable Battery
Battery Working Time Single battery time up to 8 hours
Battery Charging Time ≦3.5hours
Alarming method Visual / Audible / Vibration
Dimensions 300mm × 106mm × 71mm
Weight ≦1.05kg including battery
Protection Level IP53
Substances detected

Military, Commercial, and Homemade Explosives including:

TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others.
