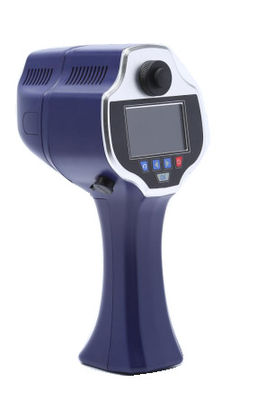

Light Weight Handheld Trace Explosive Detector For Airplane / Subway / Railway
Product Details:
| Place of Origin: | Made-in-China |
| Brand Name: | HEWEI |
| Certification: | CE,ROHS,ISO,etc |
| Model Number: | HW-HAWKEYEIII |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD per set FOB Beijing |
| Packaging Details: | case, 266mm* 112mm *138mm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Size: | 266mm* 112mm *138mm,with Heating Head | Weight: | 1.1 Kg With Heating Head |
|---|---|---|---|
| Cold Start-up Time: | <5min | LCD: | 3 Inch IPS Screen |
| Power Input: | 100-240V AC 2A, 50/60Hz | Battery Endurance: | 8000mah, 8.4V, Dual Battery > 10 Hours |
| Detection Time: | 1~10s | Measurable Category: | TNT,DNT,MNT,RDX,HMX, Tetryl,PETN,HNS,BTF,CL-20,DNTF,NQ,Black Powder,NA,C4,PA,AT |
| High Light: | hand held bomb detector,bomb detection devices |
||
Product Description
Hand-held Trace Explosive Detector , Airplane/subway/railway transport and passenger carriage security check
Description:
HW-HAWKEYEIII is an explosive detector based on fluorescence technique. The fluorescence intensity and the peak position will change when the explosive molecule contacts with fluorescent material.This kind of change is recorded by the high sensitive detector inside the machine, and then this information will be used to analysis if there’s explosives.
Product advantages
1. Light weight, easy to carry;
2. No radioactive source, easy to deploy;
3. Quick overdose recovery
4. Combined with chromatographic technique, high sensitivity, strong selectivity;
5. Low operation cost.
Specification
| Size | 266mm* 112mm *138mm | with heating head |
| 62mm* 112mm *104mm | without heating head | |
|
Weight |
1.1KG | with heating head |
| 0.9KG | Without heating head | |
| Cold start-up time | <5min | |
| LCD | 3 inch IPS screen | |
| Power input | 100-240V AC 2A, 50/60Hz | |
| Battery endurance | 8000mah, 8.4V, dual battery > 10 hours | |
| External data interface | USB | |
| Sampling mode | wipe or suction | |
| Detection time | 1~10s | |
| Detection sensitivity | <0.1ng TNT, ng level for all other material | |
| Measurable category | TNT,DNT,MNT,RDX,HMX, Tetryl,PETN,HNS,BTF,CL-20,DNTF,NQ,Black Powder,NA,C4,PA,AT | |
| Working temperature | -20 degrees to 50 degrees | |
Application Areas
□Airplane/subway/railway transport and passenger carriage security check
□Express/vehicles/ luggage/logistics transport
□Customs/customs pass security
□Motor station/railway station/airport security
□Border/frontier patrol
□Foreign residence/VIP hotel security
□Public facilities/entertainment venues
□Ports/ships
□Prison search
□Container terminal
