CE100 Through - wall Radar , hand held radar scanner For real time critical information
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | CE,ROHS,ISO,etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|
|
Detail Information |
|||
| Highlight: | emergency rescue device,emergency rescue tools |
||
|---|---|---|---|
Product Description
Through-wall Radar handheld provide critical information of the existence and position of vital bodies behind the wall
Product Description

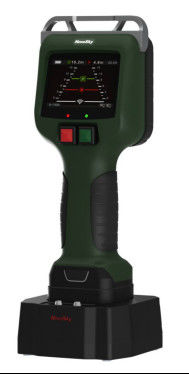

CE100 through-wall radar, which is ultra-portable, handheld and durable, can provide critical information in real time about the existence and
position of vital bodies behind the wall for the military street battle, police anti terrorist and firefighting
rescue. CE100 is easy to operate, able to penetrate the standard building materials and finish detecting
within several seconds and will provide feedback of the position of vital bodies in the building at the first
time.
Product Feature
Through-wall detection
Reliable through-wall detection of common wall materials
Easy to operate
Simple software interface
Provide clear and visual search results
Man-machine design of one-handed operation greatly improve operating efficiency
Ultra-Portable
Small and portable, available for multi-way carry
Strong adaptability to environment
Work in all time, no natter daytime or night;
Work in all weather, no matter rain, haze, snow and ice or swirling dust
High real-time performance
Detect and display the moving targets in real time
|
specifications |
parameters |
||
|
Radar system |
UWB(ultra wide band) radar |
||
|
Antenna type |
Enhanced medium-coupling UWB antenna |
||
|
Work Frequency |
3.1GHZ~5.3GHZ |
||
|
Through-wall detection distance |
Wall thickness |
24cm |
|
|
Detection distance |
Static objects: ≥20m |
||
|
Penetrated materials |
Non-metal materials like concrete, soil, rock and the material with low water content |
||
|
Detection angle |
≥±60º |
||
|
Detection accuracy |
±5cm |
||
|
Detection Model |
One-dimensional range |
||
|
Work temperature |
-20℃~+60℃ |
||
|
IP grade |
IP55/65/67 * |
||
|
Application |
Search & rescue, handling emergency, public safety |
||
|
Appearance size & weight |
components |
Radar Host |
|
|
size |
278×104×70mm |
||
|
weight |
0.9Kg |
||
|
Durable work time |
≥6h |
||
Application
Widely used in search and rescue, breaching, force protection, hostage recovery,
anti-escape, criminal investigation, fire ground rescue etc.
