Remote Water Rescue Robot With Rapid And Accurate Lifesaving And Dual-Positioning Technology
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Model Number: | HW-WR01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Delivery Time: | 1 WEEK |
Payment Terms: | T/T, L/C |
Detail Information |
|||
No-load Speed: | 360m/min | Manned Speed: | 160m/min |
---|---|---|---|
Remote Control Distance: | Upto 810m | Initial Buoyancy: | 40kg |
Effective Load: | 240kg | Time For Battery Quick Charge: | 2.5 Hours |
Size: | 103cm*63cm*20cm | ||
High Light: | tactical assault ladders,military ladders |
Product Description

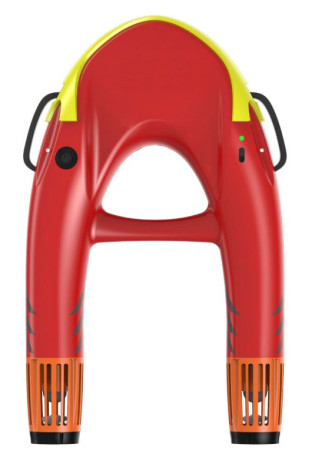

Remote Water Rescue Robot
Description
The equipment incorporates UVA technology, water robot lifesaving technology, GPS and Beidou dual-positioning technology. It not only realizes the rapid and accurate lifesaving, but also realizes the double-sided lifesaving and automatic return. This device can deal with complex and harsh rescue environment while effectively reduce the work injury of rescue workers.
Generally, the swimming speed of lifeguards is about 2 meters per second, and it takes at least half an hour for a mission. There is no more time to rescue more people who fall into the water. Waves and torrents can also cause serious problems, and even bring danger to lifeguards. Water Rescue Robot can quickly reach the people who fall into the water through remote control, and the people who fall into the water can grasp the handbands on both sides of the fuselage Or grasp the beam in the middle, and finally the robot can bring diver to the safe area by remote control.
Features
The structure of Water Rescue Robot is symmetrical up and down, left and right. Both sides can run normally. It is made of multi-layer glass fiber reinforced plastic and Kevlar composite, light and self buoyant. The shell is wear-resistant and impact resistant, with rounded edge. The machine uses the principle of water cooling, so there is no need to worry about water seepage into the machine.
Quick deploy: We can start the device within 5 seconds by power switch and remote switch.
Technical Parameter
No-load speed | 360m/min |
Manned speed | 160m/min |
Power | Single motor 1.2KW (double motor) |
Remote control distance | Upto 810m |
Initial buoyancy | 40kg |
Effective load | 240kg |
Intelligent automatic auxiliary righting function | It is not disturbed by external force when driving in water, and can move forward in a straight line |
Drive power structure | 2 Lithium polymer rechargeable battery.Each rechargeable battery has a continuous working time of 40 minutes |
Usage | The remote control life buoy can still be used normally after 2metes and 2hours under water |
Time for battery quick charge | 2.5 hours |
Drive device | Propeller rotation mode |
Weight | 13.6kg(including battery) P0rtable design,one person can carry and operate. |
Size | 103cm*63cm*20cm |
Number of hand handles | 2 handles in the Fore-body,1 transverse handle in the middle part.Various options for rescuers. |
One-key return function | The device will automatically return to the unlocked position,and the return position is within the radius of 4m from the starting position |
Lost contact automatic return function | When the device loses signal control for 15 seconds,it will trigger the automatic return function of losing contact,and will sail to the unlock location |
Usage | The device can be thrown into water at a height of 20m for normal use |
Battery status | The pros and cons of the device can be normal driving.Water remote control power buoy and remote control power display can be seen from the remote control display |
Materials | The whole device is made of Kevlar special composite materials |
Reverse gear function | It can achieve in-situ reversal return |
Accessories | Equipped with drowning inflatable air bag lifesaving bracelet to assist rescue |
Inspection report | China Classification Society Wuhan Ship Lifesaving Equipment Quality Inspection Report |
