Observation Remotely Operated Eod Robot Advances Safety And Capability

Observation Remotely Operated Eod Robot Advances Safety And Capability

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: YES
Model Number: HW-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD/Set FOB shenzhen
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: EOD And Observation Robot Advances Safety And Capability Materials: Aircraft-grade Aluminum Alloy, Precision Machining
Mobile Robot Body: Box, Electrical Motor, Driving System, Mechanical Arm, Cradle Head, Monitoring System, Lighting Etc. Max. Mechanical Arms Spread: 1650mm
Light Type: LED Floodligh: Two Group LED Floodlight
High Light:

remotely operated eod robot

,

aircraft aluminum alloy eod robot

,

remotely operated explosive ordnance disposal robot

Product Description

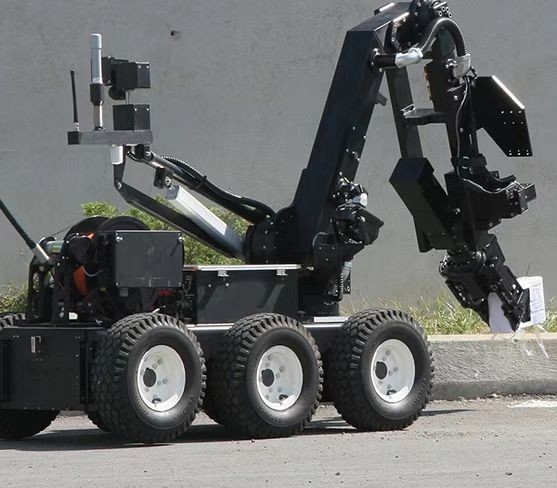

EOD and observation Robot advances safety and capability


Description


The main body of the mobile robot is composed of the box, motor, drive system, mechanical arm, head, monitoring system, lighting, explosion-proof base, rechargeable battery, traction ring and so on.

The mechanical arm consists of a big arm, a telescopic arm, a forearm and a manipulator. Installed on kidney basin, diameter 220mm. Two electric pull rods and two pneumatic pull rods are installed on the mechanical arm.A pneumatic strut, camera and antenna are mounted on the head. The monitoring system consists of camera, monitor, antenna and so on. A set of LED lights is installed in the front and rear of the body. This system uses DC24V lead-acid rechargeable battery for power supply.




Specifications

Robot Body
MaterialsAircraft-grade aluminum alloy, precision machining
DimensionsL*W*H: 910 * 650 * 500 mm
Weight90kg (without accessories, package and control box)
BatteryDC24V lead acid rechargeable battery
Working time≥ 5 hours
Maximum Speed≥1.5m/s
Loading CapacityWhen loading 140KG, it can move normally (actual measurement).
Lift CapabilityIt can move with clamping weights of 40K and will not drop (actual measurement).
Grade AbilityIt can climb up the slope of 45° and stop steadily on the slope.
Climbing Stairs AbilityWith traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope.
Turning AbilityIn horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º.
Limited Passage Width≤700mm
Over-obstacle CapacityIt can cross the obstacle of 320mm height.
Max. Mechanical Arms Spread1650mm
Gripper of Manipulator Maximum Expansion Range250mm
Arm Extension when stretch out and draw back500mm
Control DistanceWireless control: ≥150m (visible range); wire control: 100m (optional 200m);
Forward CameraColor infrared induction
Backward CameraColor infrared induction
Cradle Head Various focal CameraColor infrared induction
Manipulator Gripper CameraColor infrared induction
FloodlightTwo group LED floodlight (one group on the front and back)
Control Terminal
BoxPortable, waterproof, dustproof, high strength
Size≤ L 460 * W 370 *H 260 mm
Weight≤ 10kg
Display Screen12-inch HB LCD, wide viewing angle, outdoor clear picture
OperationHigh-quality rocker handle, human software interface design, easy observation and convenient operation
Display ImageIt can monitor 4 video signals simultaneously or separately amplify one of 4 video signals
BatteryRechargeable 24V lithium battery, working time ≥ 5.1 hours when fully charged.


 Observation Remotely Operated Eod Robot Advances Safety And Capability 0
Company Introduction

In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.

In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.

In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.


Jiangsu Factory
Observation Remotely Operated Eod Robot Advances Safety And Capability 1
Observation Remotely Operated Eod Robot Advances Safety And Capability 2

Shenzhen Research Centre
Observation Remotely Operated Eod Robot Advances Safety And Capability 3

Observation Remotely Operated Eod Robot Advances Safety And Capability 4
Overseas Exhibitions

Observation Remotely Operated Eod Robot Advances Safety And Capability 5

Observation Remotely Operated Eod Robot Advances Safety And Capability 6

Observation Remotely Operated Eod Robot Advances Safety And Capability 7
Certificates
Observation Remotely Operated Eod Robot Advances Safety And Capability 8
Observation Remotely Operated Eod Robot Advances Safety And Capability 9

Observation Remotely Operated Eod Robot Advances Safety And Capability 10

Staff Photo

Staff from Jiangsu Factory
Observation Remotely Operated Eod Robot Advances Safety And Capability 11


Staff from Headquarters
Observation Remotely Operated Eod Robot Advances Safety And Capability 12

Staff from Shenzhen research centre

Observation Remotely Operated Eod Robot Advances Safety And Capability 13
