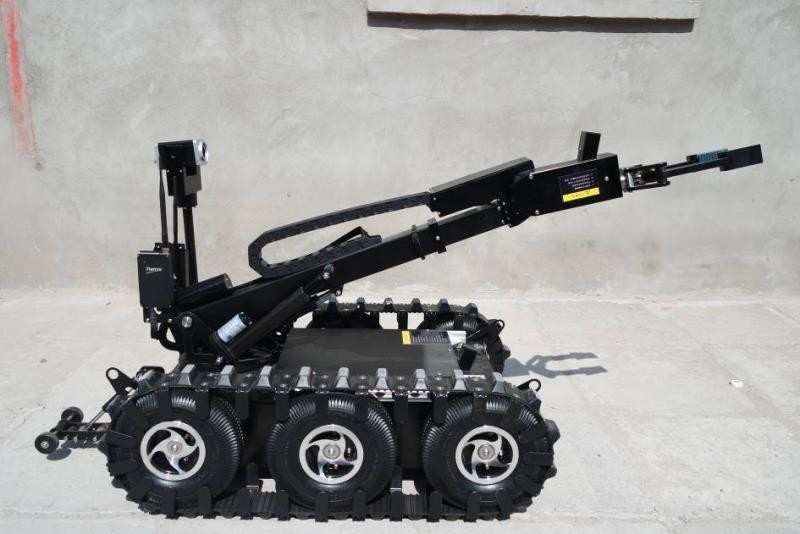

Aircraft Grade Aluminum Alloy Eod Robot Lightweight UGVs

Aircraft Grade Aluminum Alloy Eod Robot Lightweight UGVs

Product Details:

Place of Origin: CHINA
Brand Name: HEWEI
Certification: YES
Model Number: HW-18

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD/Set FOB shenzhen
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Robot Body: 90kg (without Accessories, Package And Control Box) Dimensions: 910L * 650 W* 500 MmH
Working Time: More Than 5 Hours Maximum Speed: More Than 1.5m/s
Limited Passage Width: Less Than 700mm Forward Camera: Color Infrared Induction
High Light:

aircraft grade aluminum alloy eod robot

,

lightweight ugvs eod robot

Product Description

Aircraft-grade aluminum alloy Eod Robot

Model: HW-18



Description

EOD robot consists of mobile robot body and control system.

Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.

Robots are mainly used to deal with explosives-related tasks, and can also be used to detect terrain that is difficult for humans to reach.

Control system is made up of center control system, control box, etc.

Aircraft Grade Aluminum Alloy Eod Robot Lightweight UGVs 0













Aircraft Grade Aluminum Alloy Eod Robot Lightweight UGVs 1









Technical Parameter

Robot Body
Materials Aircraft-grade aluminum alloy, precision machining
Dimensions L*W*H: 910 * 650 * 500 mm
Weight 90kg (without accessories, package and control box)
Battery DC24V lead acid rechargeable battery
Working time ≥ 3 hours
Maximum Speed ≥1.2m/s
Loading Capacity When loading 140KG, it can move normally (actual measurement).
Lift Capability It can move with clamping weights of 40K and will not drop (actual measurement).
Grade Ability It can climb up the slope of 45° and stop steadily on the slope.
Climbing Stairs Ability With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope.
Turning Ability In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º.
Limited Passage Width ≤700mm
Over-obstacle Capacity It can cross the obstacle of 320mm height.
Max. Mechanical Arms Spread 1650mm
Control Distance Wireless control: ≥150m (visible range); wire control: 100m (optional 200m);
Forward Camera Color infrared induction
Backward Camera Color infrared induction
Cradle Head Various focal Camera Color infrared induction
Manipulator Gripper Camera Color infrared induction
Floodlight Two group LED floodlight (one group on the front and back)
Control Terminal
Box Portable, waterproof, dustproof, high strength
Size ≤ L 460 * W 370 *H 260 mm
Weight ≤ 10kg
Display Screen 12-inch HB LCD, wide viewing angle, outdoor clear picture
Operation High-quality rocker handle, human software interface design, easy observation and convenient operation
Display Image It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals
Battery Rechargeable 24V lithium battery, working time ≥ 3 hours when fully charged.





Company Introduction



In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.



In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.



In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
