Video Recording Thrown Detective Robot Photography Functions
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-TDR-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 8500-10000 |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Throwing Detection Robot | Dimension Of Robot: | Length: 200mm Height: 115mm (Wheel’s Diameter) |
|---|---|---|---|
| Antenna Length: | 433MHZ: 200mm 2.4GHZ: 96mm | Maximum Throwing Distance: | Vertical: 9m Horizontal: 30m |
| Standby Time: | 150minutes | Frame Rate: | 30fps |
| High Light: | video recording thrown detective robot,photography functions thrown detective robot |
||
Product Description
With video recording, photography functions, Throwing Detection Robot
Throwing Detection Robot
Introduction
Thrown Detective Robot is a small detective robot with light weight, low walking noise, strong and durable. It also takes into account the design requirements of low power consumption, high performance and portability. The two-wheeled detective robot platform has the advantages of simple structure, convenient control, flexible mobility and strong cross-country ability.
Features
1.Simple operation, small size, light weight, easy to carry
2.Low noise, easy to hide
3.With anti-drop design, can be directly thrown to the target area operation
4.Real-time transmission and storage of voice, data and images
5.Built - in HD camera and sound collector, can remote visual combat command
6.Equipped with infrared lighting, can be day and night reconnaissance operation
7.The control terminal interface is simple and intuitive
8.With video recording, photography functions
9.Built-in SD card, support video, image online playback and export function
Technical Specification
| Robot | Weight | 0.6kg (battery included) |
| Dimension |
Length: 200mm Height: 115mm (Wheel’s diameter) |
|
| Antenna length |
433MHZ: 200mm 2.4GHZ: 96mm |
|
| Moving speed | 0.6m/s | |
| Maximum climbing angle | 25° | |
| Maximum Throwing distance |
Vertical: 9m Horizontal: 30m |
|
| Remote control distance |
Indoor: 50m Outdoor: 180m (Visual Distance) |
|
| Working time | 110minutes | |
| Standby time | 150minutes | |
| Frame Rate | 30fps | |
| Protecting Rate | IP66 | |
| IR illumination distance | 7.8m | |
| FOV | 120° | |
| Audio | One-way, listening only (433M, 2.4G) | |

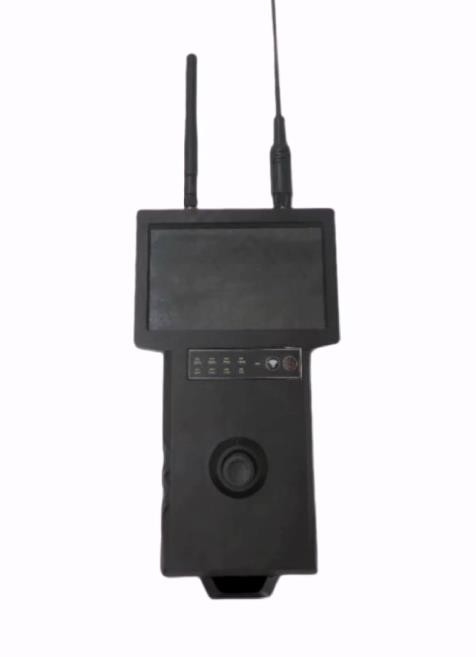

| Control Terminal | Dimension | 230×126mm (without antenna) |
| Weight | 0.55kg (with battery) | |
| Display Screen | 5inch (Resolution: 1024x600) | |
| Working time | 180minutes | |
| Memory Capacity | 32G | |
| Protecting Rate | IP66 |
Company Introduction
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
