0.6m/s Moving speed Thrown Detecting Robot 120° FOV
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HW-TDR-2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 8500-10000 |
Packaging Details: | Carton package, wooden package |
Delivery Time: | 15 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Name: | 0.6m/s Moving speed Thrown Detecting Robot 120° FOV | Weight: | 0.6kg (battery Included) |
---|---|---|---|
Dimension: | Length: 200mm Height: 115mm | Antenna Length: | 433MHZ: 200mm 2.4GHZ: 96mm |
0.6m/s Moving speed: | 0.6m/s | Maximum Climbing Angle: | 25° |
High Light: | 0.6m/s Thrown Detecting Robot,120° FOV Thrown Detecting Robot |
Product Description

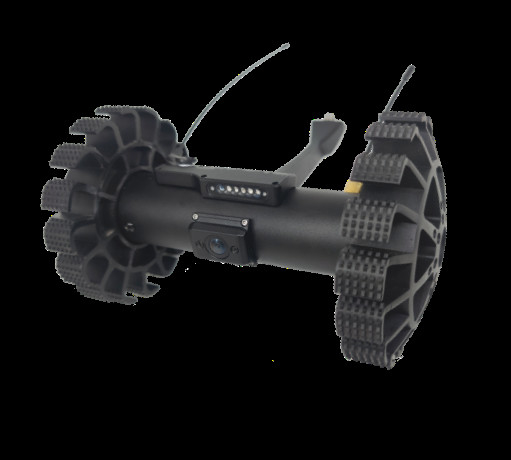

0.6m/s Moving speed Thrown Detecting Robot 120° FOV
Introduction
The two-wheeled detective robot platform has the advantages of simple structure, convenient control, flexible mobility and strong cross-country ability. The built-in high-definition image sensor, pickup and auxiliary light can effectively collect environmental information, realize remote visual combat command and day and night reconnaissance operations, with high reliability. The robot control terminal is ergonomically designed, compact and convenient, with complete functions, which can effectively improve the working efficiency of the command personnel.
Features
- Simple operation, small size, light weight, easy to carry
- Low noise, easy to hide
- With anti-drop design, can be directly thrown to the target area operation
- Real-time transmission and storage of voice, data and images
- Built - in HD camera and sound collector, can remote visual combat command
- Equipped with infrared lighting, can be day and night reconnaissance operation
- The control terminal interface is simple and intuitive
- With video recording, photography functions
- Built-in SD card, support video, image online playback and export function
Technical Specification
Robot | Weight | 0.6kg (battery included) |
Dimension |
Length: 200mm Height: 115mm (Wheel’s diameter) |
|
Antenna length |
433MHZ: 200mm 2.4GHZ: 96mm |
|
Moving speed | 0.6m/s | |
Maximum climbing angle | 25° | |
Maximum Throwing distance |
Vertical: 9m Horizontal: 30m |
|
Remote control distance |
Indoor: 50m Outdoor: 180m (Visual Distance) |
|
Working time | 110minutes | |
Standby time | 150minutes | |
Frame Rate | 30fps | |
Protecting Rate | IP66 | |
IR illumination distance | 7.8m | |
FOV | 120° | |
Audio | One-way, listening only (433M, 2.4G) | |
Control Terminal | Dimension | 230×126mm (without antenna) |
Weight | 0.55kg (with battery) | |
Display Screen | 5inch (Resolution: 1024x600) | |
Working time | 180minutes | |
Memory Capacity | 32G | |
Protecting Rate | IP66 |
