Built In Sd Card Thrown Detective Robot Support Video Image Online Playback
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-TDR-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 8500-10000 |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Thrown Detection Robot | Working Time Of Robot: | 110minutes |
|---|---|---|---|
| IR Illumination Distance: | 7.8m | Audio: | One-way, Listening Only (433M, 2.4G) |
| Antenna Length: | 433MHZ: 200mm 2.4GHZ: 96mm | Maximum Climbing Angle: | 25° |
| High Light: | sd card thrown detective robot,video thrown detective robot |
||
Product Description
Built-in SD card, support video, image online playback, Thrown Detection Robot

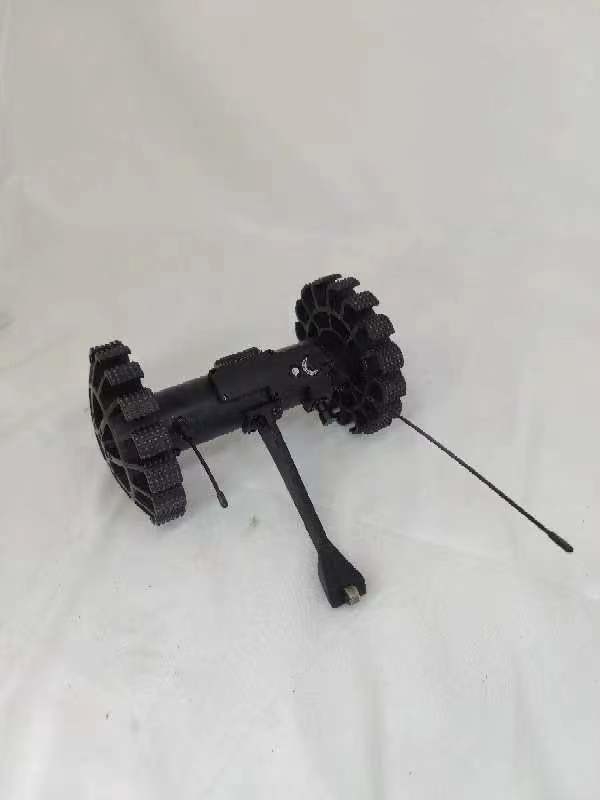

Thrown Detection Robot
Introduction
Thrown Detective Robot is a small detective robot with light weight, low walking noise, strong and durable. It also takes into account the design requirements of low power consumption, high performance and portability. The two-wheeled detective robot platform has the advantages of simple structure, convenient control, flexible mobility and strong cross-country ability. The built-in high-definition image sensor, pickup and auxiliary light can effectively collect environmental information, realize remote visual combat command and day and night reconnaissance operations, with high reliability. The robot control terminal is ergonomically designed, compact and convenient, with complete functions, which can effectively improve the working efficiency of the command personnel.
Application Scenarios
It is suitable for public security, armed police and other departments, and can be used for anti-terrorism, anti-hijacking, covert detection, low-space detection, patrol, tunnel patrol and other operational tasks in the urban day and night environment.
Technical Specification
| Robot | Weight | 0.6kg (battery included) |
| Dimension |
Length: 200mm Height: 115mm (Wheel’s diameter) |
|
| Antenna length |
433MHZ: 200mm 2.4GHZ: 96mm |
|
| Moving speed | 0.6m/s | |
| Maximum climbing angle | 25° | |
| Maximum Throwing distance |
Vertical: 9m Horizontal: 30m |
|
| Remote control distance |
Indoor: 50m Outdoor: 180m (Visual Distance) |
|
| Working time | 110minutes | |
| Standby time | 150minutes | |
| Frame Rate | 30fps | |
| Protecting Rate | IP66 | |
| IR illumination distance | 7.8m | |
| FOV | 120° | |
| Audio | One-way, listening only (433M, 2.4G) | |
| Control Terminal | Dimension | 230×126mm (without antenna) |
| Weight | 0.55kg (with battery) | |
| Display Screen | 5inch (Resolution: 1024x600) | |
| Working time | 180minutes | |
| Memory Capacity | 32G | |
| Protecting Rate | IP66 |
