0.6m/S Moving Speed Thrown Detective Robot 25° Maximum Climbing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-TDR-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 8500-10000 |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Throwing Detective Robot | Antenna Length: | 433MHZ: 200mm 2.4GHZ: 96mm |
|---|---|---|---|
| Remote Control Distance: | Indoor: 50m Outdoor: 180m (Visual Distance) | IR Illumination Distance: | 7.8m |
| Audio: | One-way, Listening Only (433M, 2.4G) | Weight: | 0.55kg (with Battery) |
| High Light: | high speed thrown detective robot,25 degree angle thrown detective robot,high speed throwing detective robot |
||
Product Description
0.6m/s moving speed, 25°Maximum climbing angle Throwing Detective Robot

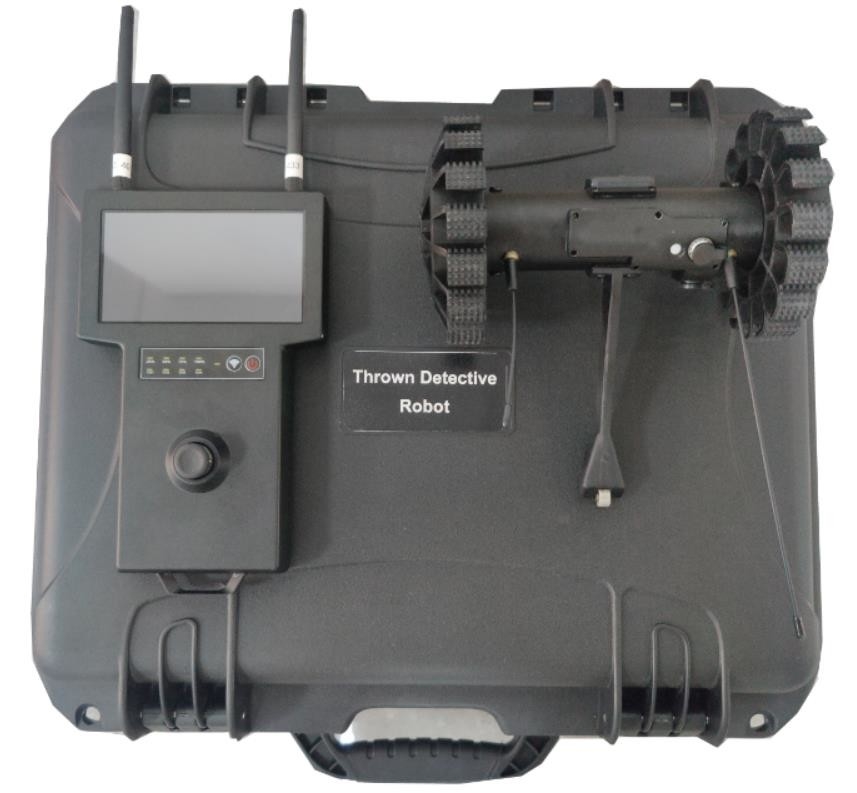

Thrown Detective Robot
Introduction
The built-in high-definition image sensor, pickup and auxiliary light can effectively collect environmental information, realize remote visual combat command and day and night reconnaissance operations, with high reliability. The robot control terminal is ergonomically designed, compact and convenient, with complete functions, which can effectively improve the working efficiency of the command personnel.
Application Scenarios
It is suitable for public security, armed police and other departments, and can be used for anti-terrorism, anti-hijacking, covert detection, low-space detection, patrol, tunnel patrol and other operational tasks in the urban day and night environment.
Technical Specification
| Robot | Weight | 0.6kg (battery included) |
| Dimension |
Length: 200mm Height: 115mm (Wheel’s diameter) |
|
| Antenna length |
433MHZ: 200mm 2.4GHZ: 96mm |
|
| Moving speed | 0.6m/s | |
| Maximum climbing angle | 25° | |
| Maximum Throwing distance |
Vertical: 9m Horizontal: 30m |
|
| Remote control distance |
Indoor: 50m Outdoor: 180m (Visual Distance) |
|
| Working time | 110minutes | |
| Standby time | 150minutes | |
| Frame Rate | 30fps | |
| Protecting Rate | IP66 | |
| IR illumination distance | 7.8m | |
| FOV | 120° | |
| Audio | One-way, listening only (433M, 2.4G) | |
| Control Terminal | Dimension | 230×126mm (without antenna) |
| Weight | 0.55kg (with battery) | |
| Display Screen | 5inch (Resolution: 1024x600) | |
| Working time | 180minutes | |
| Memory Capacity | 32G | |
| Protecting Rate | IP66 |
