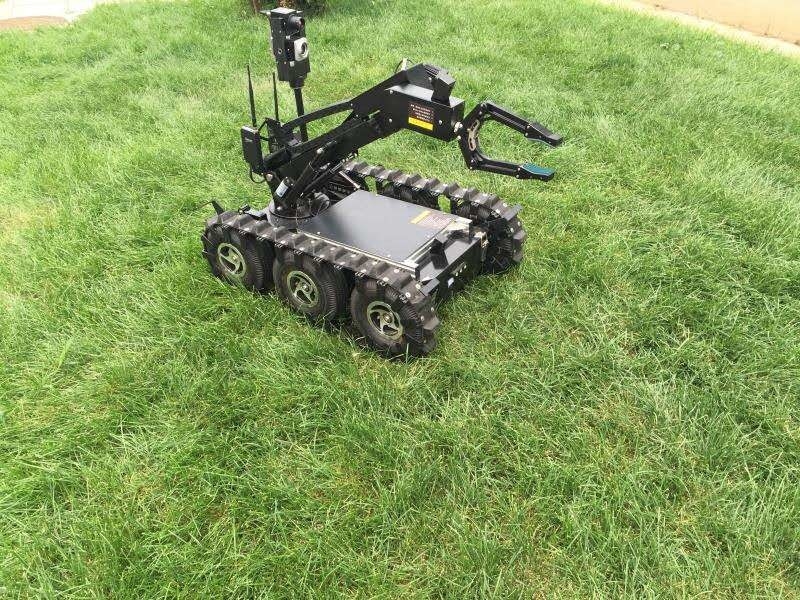

Explosive Ordnance Disposal Eod Robot With Traction Free Assist
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | Yes |
| Model Number: | HW-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Wooden package |
| Delivery Time: | 16 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set per month |
|
Detail Information |
|||
| Name: | EOD Robot | Over-obstacle Capacity: | It Can Cross The Obstacle Of 320mm Height. |
|---|---|---|---|
| Control Distance: | Wireless Control: ≥150m (visible Range); Wire Control: 100m (optional 200m); | Backward Camera: | Color Infrared Induction |
| Grade Ability: | It Can Climb Up The Slope Of 45° And Stop Steadily On The Slope. | Battery: | DC24V Lead Acid Rechargeable Battery |
| High Light: | traction free assist eod robot,explosive ordnance disposal eod robot,eod explosive ordnance disposal robot |
||
Product Description
With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope, EOD Robot
EOD Robot
Model: HW-18
Description
EOD robot consists of mobile robot body and control system.
Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.
Technical Parameter
| Robot Body | |
| Materials | Aircraft-grade aluminum alloy, precision machining |
| Dimensions | L*W*H: 910 * 650 * 500 mm |
| Weight | 90kg (without accessories, package and control box) |
| Battery | DC24V lead acid rechargeable battery |
| Working time | ≥ 5 hours |
| Maximum Speed | ≥1.5m/s |
| Loading Capacity | When loading 140KG, it can move normally (actual measurement). |
| Lift Capability | It can move with clamping weights of 40K and will not drop (actual measurement). |
| Grade Ability | It can climb up the slope of 45° and stop steadily on the slope. |
| Climbing Stairs Ability | With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope. |
| Turning Ability | In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º. |
| Limited Passage Width | ≤700mm |
| Over-obstacle Capacity | It can cross the obstacle of 320mm height. |
| Max. Mechanical Arms Spread | 1650mm |
| Gripper of Manipulator Maximum Expansion Range | 250mm |
| Arm Extension when stretch out and draw back | 500mm |
| Control Distance | Wireless control: ≥150m (visible range); wire control: 100m (optional 200m); |
| Forward Camera | Color infrared induction |
| Backward Camera | Color infrared induction |
| Cradle Head Various focal Camera | Color infrared induction |
| Manipulator Gripper Camera | Color infrared induction |
| Floodlight | Two group LED floodlight (one group on the front and back) |
| Control Terminal | |
| Box | Portable, waterproof, dustproof, high strength |
| Size | ≤ L 460 * W 370 *H 260 mm |
| Weight | ≤ 10kg |
| Display Screen | 12-inch HB LCD, wide viewing angle, outdoor clear picture |
| Operation | High-quality rocker handle, human software interface design, easy observation and convenient operation |
| Display Image | It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals |
| Battery | Rechargeable 24V lithium battery, working time ≥ 5.1 hours when fully charged. |
