Integrated Lightweight Flexible Video Endoscope 3.5 Inch Tft Lcd Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | No |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD per piece FOB Shenzhen |
| Packaging Details: | Carton package, wooden package. |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
|
Detail Information |
|||
| Name: | Video Endoscope | Camera Diameter(mm): | Φ6mm |
|---|---|---|---|
| Display Resolution: | 640 X 480 | Camera Pixel: | 1,000,000 |
| Image Magnification: | 4X | Maximum Observation Distance: | 10m(A4 Paper Sized Objects) |
| High Light: | integrated flexible video endoscope,lightweight flexible video endoscope,tft lcd screen flexible video endoscope |
||
Product Description

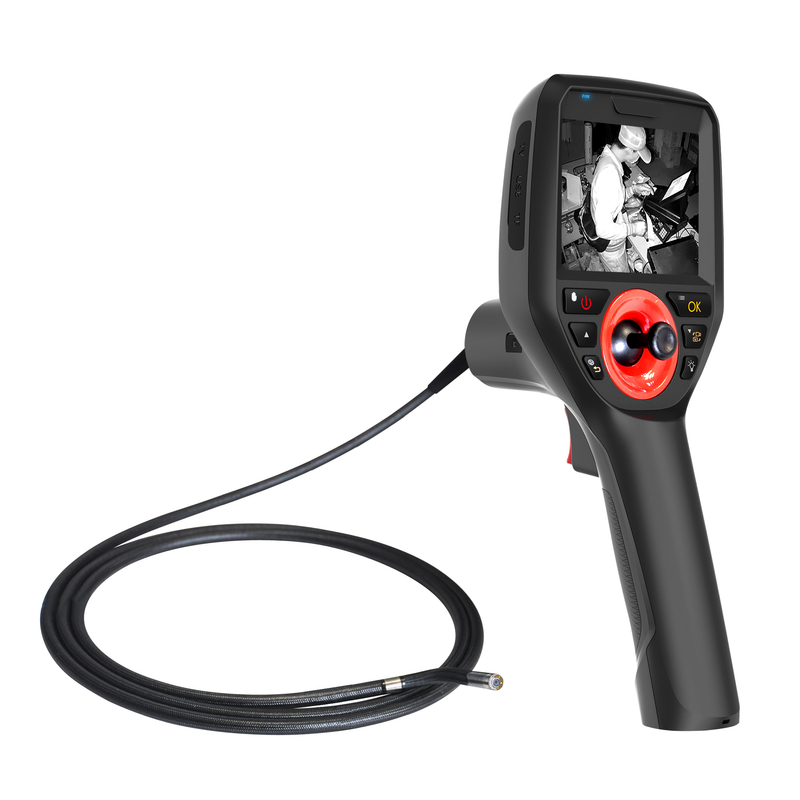

360° arbitrarily oriented, integrated design, lightweight and portable. 3.5 inch TFT LCD screen, Video Endoscope
Video Endoscope
Description
It is portable and ease use, 360° arbitrarily oriented, integrated design, lightweight and portable. 3.5 inch TFT LCD screen, high definition image sensor technology, HD image, with the function of taking video and photographs, probe and protective device corrosion, wear resistance, waterproof and dust proof meets IP67 requirements. It can be used in public security, armed police, fire, procuratorate, customs and other departments for security check, explosive disposal, anti-smuggling, criminal investigation, search and rescue work.
Specifications
|
Φ6mm |
|
|
Camera Pixel |
1,000,000 |
|
Display Resolution |
640 x 480 |
|
Angle of Field |
70° |
|
Maximum observation distance |
10m(A4 paper sized objects) |
|
Image Magnification |
4X |
|
Screen backlight brightness |
3 level adjustable |
|
Light Control |
0-7 levels |
|
White Balance |
Auto white balance |
|
Bending Control |
360° manual all-way articulation |
|
Bending Angle |
≥150° |
|
Effective Working Length |
3 m |
|
Insert Tube |
Tungsten-braided tubes |
|
Language |
Chinese, English, Russian,French etc. |
|
Shooting and recording function |
It has the function of taking pictures and recording video, and can take pictures when recording video. |
|
Display |
Highlight 3.5 inches |
|
Host Structure |
Hand-held Design |
|
Memory |
Standard SD card:8G, Maximum: 32G |
|
Port |
Mirco HDMI |
|
Probe articulation control |
The speed of the probe articulation is controlled by rocker. Release the rocker to complete positioning. |
|
Operating environment temperature |
-10 to 50℃ |
|
Host Working Time |
≥2 hour |
|
Weight |
≤0.45kg(with batteries) |
|
Power Supply |
Rechargeable lithium battery(dismountable) |
|
Battery Capacity |
4.2V 3200mAh |
|
Charging Parameters |
DC5V, Maximum current:1A |
|
Size |
240 x 102 x 126 mm |
|
Packing case dimensions |
411mm*321mm*165mm |
