Pulse Mode Lightweight Non Linear Junction Detector Nljd
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-24 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Name: | Non Linear Junction Detector | Sensitivity: | Not Worse Than -108 DBm |
|---|---|---|---|
| Weight: | Less Than 1 Kg | Power Of Pulse: | 10/w |
| Dynamic Range: | Not Less Than 80dB | Battery Life: | More Than 3 Hours In Pulse Mode |
| High Light: | lightweight non linear junction detector,pulse mode non linear junction detector,lightweight nljd detector |
||
Product Description
Ligth Weight less than 1kg, sensitivity not worse than -108dBm Non Lineaar Junction Detector( NLJD)
Non Lineaar Junction Detector( NLJD)
Introduction

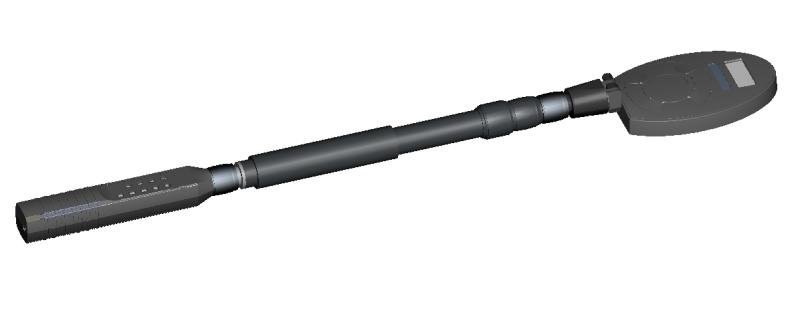

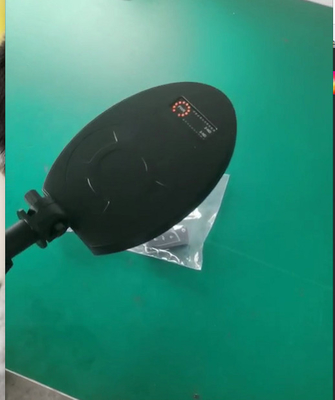

HW-24 is an unique non-linear junction detector that is notable for its compact size, ergonomic design and weight.
It is highly competitive with most popular models of non-linear junction detectors. It can operate in continuous and pulse mode as well, having a variable power output. Automatic frequency selection allows operation in complex electromagnetic environment.
Its power output is harmless to operator’s health. Operation at higher frequencies makes it in some cases more efficient than detectors with standard frequencies but with greater power output.
Specification
| Power of pulse/continuous signal | 10 / 1w |
| Sensitivity | not worse than -108 dBm |
| Signal frequency | 2400 - 2483 MHz |
| Dynamic range | not less than 80 dB |
| Battery life | ≧ 3 hours in pulse mode |
| 1 hour in continuous mode | |
| Weight | less than 1000 g |
