Electronic 2400mhz 300w Non Linear Junction Detector
|Place of Origin:||Made-in-China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||carton packing. L28cm x W12.5cm x H6cm|
|Delivery Time:||30 days|
|Supply Ability:||100 sets per month|
|Signal Frequency:||2400 - 2483MHz||Maximum Continuous Radiation Power (CW):||300W|
|2nd Harmonic Frequency:||4812 - 4828 MHz||3rd Harmonic Frequency:||7218 - 7242 MHz|
|Receiver Sensitivity:||≧ -108 DBm||Dynamic Range:||≧ 80 DBm|
|Battery Type:||Built-in Rechargeable Li-battery||Voltage:||3.7 V|
|Capacity:||7.8 Ah||Battery Life:||1 Hour At Max Power In A Continuous Mode|
300w non linear junction detector,
2400mhz non linear junction detector,
electronic nljd detector
Non-Linear Junction Detector

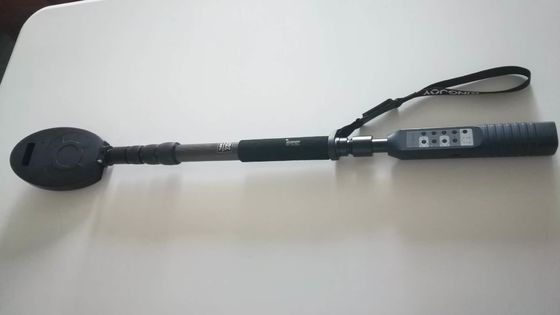

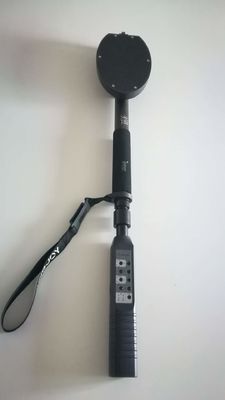

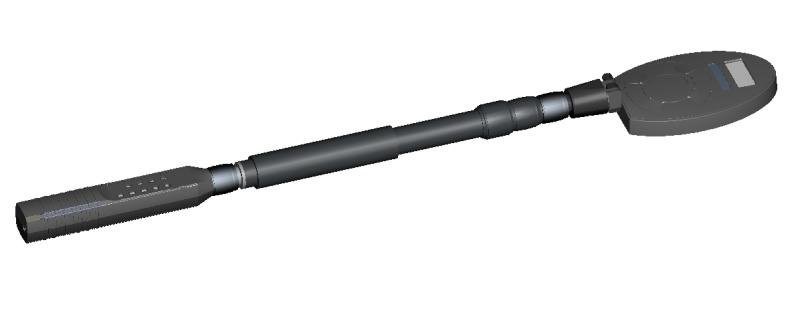

The non-linear junction detector “HW-24” is used for search and location of electronic devices both in active and switch-off state.
It is highly competitive with most popular models of non-linear junction detectors. It can operate in continuous and pulse mode as well, having a variable power output. Automatic frequency selection allows operation in complex electromagnetic environment.
The detector generates a response at the 2nd and 3rd harmonics when radiated by an RF probing signal. Semiconductor components of artificial origin will display a higher level on the second harmonic while corrosive semiconductor components of artificial origin will have a higher level on the third harmonic respectively. An “HW-24” analyzes the 2nd and 3rd harmonics response of the radiated objects, which enables a quick and reliable identification of electronic devices and corrosive semiconductors.
The “HW-24” automatically finds the best receiving frequency channel free of noise and distortion providing flawless operation even in the complicated electromagnetic environment.
Its power output is harmless to operator’s health. Operation at higher frequencies makes it in some cases more efficient than detectors with standard frequencies but with greater power output.
|Signal frequency||2400 - 2483 MHz|
|Max. peak power of radiation in pulse mode||10W|
|Maximum continuous radiation power (CW)||300W|
|The adjustment range of the probing signal power||20dBm|
|2nd Harmonic frequency||4812 - 4828 MHz|
|3rd Harmonic frequency||7218 - 7242 MHz|
|Receiver Sensitivity||≧ -108 dBm|
|Dynamic range||≧ 80 dBm|
|Battery type||Built-in Rechargeable Li-battery|
|Battery life||3 hours at max power in a pulsed mode|
|1 hour at max power in a continuous mode|
|Device dimension (in working condition)||L47cm x W12.5cm x H6cm|
|Device dimension (in folding condition)||L28cm x W12.5cm x H6cm|
|Alarm mode||Audible and Visual (LED indicator)|
|Operating temperature||+5℃ ~ +40℃|
