• Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
  • Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Product Details:

Place of Origin: China
Brand Name: HEWEI
Certification: YES
Model Number: HW-TK

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 2000~5000 per piece
Packaging Details: carton package, wooden package.
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100 pieces per month
Get Best Price Contact Now

Detail Information

Name: Thermal Scope IP Grade: IP67
Reliability: Shock 300g/4Hz, 6000times Human Target 1.7m×0.5m: Recognition: 500m, Detection: 1800m,
Car Target 2.3m×2.3m: Identification: 300m; Recognition: 600m, Detection: 2300m Operating Temperature: -40℃~+55℃
High Light:

ip67 thermal image scope

,

ip67 thermal imaging scope

,

wireless transmission small thermal image scope

Product Description

TK is small in size, light in weight, lower in power consumption Thermal Scope



Thermal Scope



1. Product Description

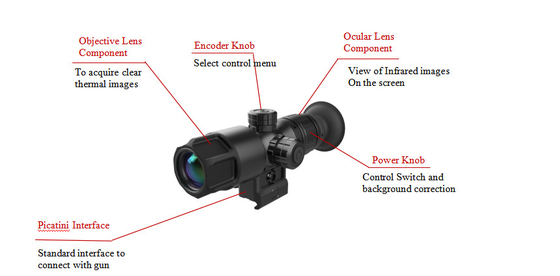

TK Series Thermal Scope has light type (TK-L), mid type (TK-M), and heavy type (TK-H) to match guns with different ranges. Among the products on same level,TK is small in size, light in weight, lower in power consumption, longer identifying distance, and higher reliability. With built-in image transmission module, it can be connected with head-mounted devices by wireless for easy and hidden observing and shooting. The operation is simple and reliable, with automatic gun calibration and probability ranging function.Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 0

  • Product Features

● Wireless Image Transmission

● IP67 Water And Dust Proof

● Single Roller Operating

● Eye Cup Preventing Light Leaking

● Low Power Consumption

● Auto Zeroing

● Ultra-Far Vision

● High Reliability

  • Technical Parameters



Item Light Type(TK-L)
TK-L3
Module

Resolution:384×288 17μm

Spectral Band:8~14μm

FOV:14.9°×11.2°

Display 0.38’ OLED 800×600
Eyepiece Diopter -5~+3
Exit Pupil Distance 30mm
Digital Zoom 4x
Optical Magnification 2x
Power Supply 18650*1
Weight(With Battery) ≤0.4kg
Battery Life ≥8h
Dimension(With Eye Cup and Lens Hood) 190×76×82mm
Interface External Power Supply/Analog(PAL)/RS232/WIFI
Operating Temperature -40℃~+55℃
IP Grade IP67
Reliability Shock 300g/4Hz, 6000times

Human Target

1.7m×0.5m

Identification 200 m
Recognition 500 m
Detection 1800 m

Car Target

2.3m×2.3m

Identification 300 m
Recognition 600 m
Detection 2300 m


Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 1



Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 2



Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 3



Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 4



Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 5



Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 6



Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption 7
