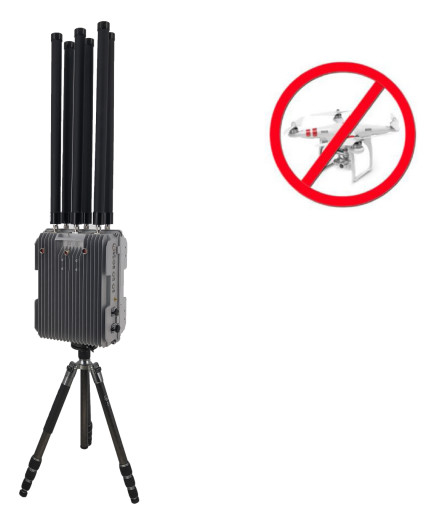

360°Angle of Defense, Water proof Fixed UAV Jammer
Product Details:
| Place of Origin: | Made-in-China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWUDS-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden package, carton package |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | 360°Angle Of Defense, Water Proof Fixed UAV Jammer | Defense Radius: | ≧1500M |
|---|---|---|---|
| Water-proof Design: | IP66 | Built-in Adapter: | 29.5V & 2A |
| Weight: | 2.4KG | Dimension: | Diameter 40mm; Length 65cm |
| High Light: | 3mr 0.7M Portable X Ray Baggage Scanner,768*576 Pixels Portable Baggage Scanner,3mr Portable X Ray Baggage Scanner |
||
Product Description
360°Angle of Defense, Water proof Fixed UAV Jammer
Description
The HWUDS-3 system delivers our tried and tested drone jamming capability in a hardened IP67 case for permanent installation onto a building. Like all omni-directional jammers the HWUDS-3 could cause some interference to other devices, we have addressed this issue by attempting to use as low power as possible to defeat the drone.
Features
► Multi-band emission, defeating most civilian UAVs
► Defense Radius: more than 1500M
► Angle of Defense: 360°
► Water-proof Design: IP66
► All-weathers working
► Defense automatically once POWER ON
Technical Specification
| Number of Jamming Band | 6 | ||
| Jamming Mode | Expel the UAV | ||
| Forcing the UAV landing | |||
| Working frequency range | BAND1: 420 - 460Mhz | BAND2: 868 - 930Mhz | |
| BAND3: 1100 - 1300Mhz / GPS/GLONASS/BEIDOU | |||
| BAND4: 1555 - 1620Mhz / GPS/GLONASS/BEIDOU | |||
| BAND5: 2400 - 2500Mhz | BAND6: 5715 - 5850Mhz | ||
| Transmitting Power | Band1: 50W | Band2: 25W | |
| Band3: 25W | Band4: 50W | ||
| Band5: 25W | Band6: 50W | ||
| Angle of Defence | 360° | ||
| Defense Radius | more than 1500M | ||
| Power Supply | AC100-240V/50-60Hz | ||
| Built-in adapter | 29.5V & 2A | ||
| Continuous working time | All time | ||
| Main Unit | Weight | 14.5KG | |
| Dimension | L56*W40*H26cm | ||
| Material | ADC12 Aluminum-Alloy Die Castings | ||
| Antenna (6 pieces) | Weight | 2.4KG | |
| Dimension | Diameter 40mm; Length 65cm | ||
| Material | FRP (Fiber Reinforced Plastics) | ||
| Tripod | Weight | 2.3KG | |
| Dimension | 21CM ~ 175CM | ||
| Material | Carbon Fibre | ||
| Protection Level | IP67 | ||
| Operating environment |
-40℃ ~ +55℃ |
||
| Operating Mode | Manual | ||
| Remote Control | |||
Company Profile
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
