Uav Drone Detection Device Control System 360 Degrees Full Coverage 5km For Stable Detection
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-UAVRF-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 55000~60000 per unit |
| Packaging Details: | carton package, wooden package. |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Name: | UAV Detection And Control System | Antenna Weight: | 2.7kg |
|---|---|---|---|
| Bracket Weight: | 8.6kg | Host Size: | 46*51.3*29.3cm |
| Antenna Size: | φ3.6*60cm | Bracket Size: | Base 46.5*65cm, Height 127cm |
| High Light: | uav drone detection device,360 degrees drone detection device,5km drone detection equipment |
||
Product Description

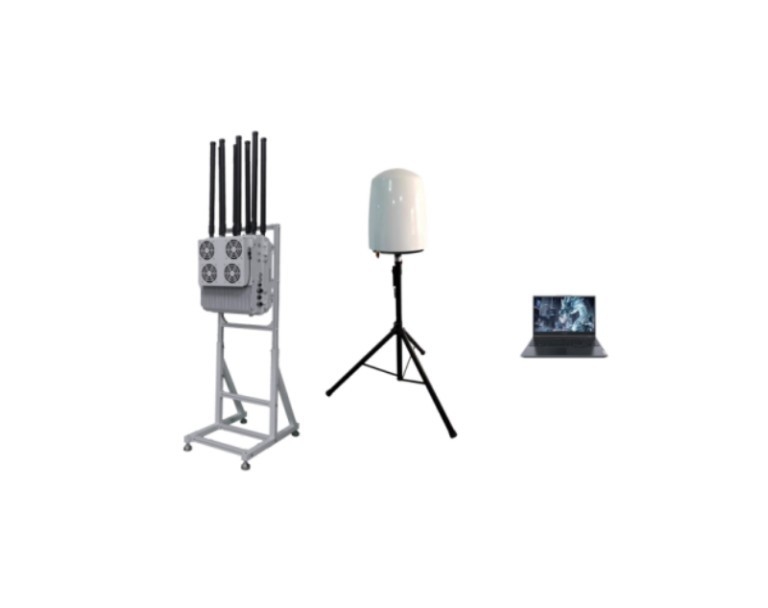

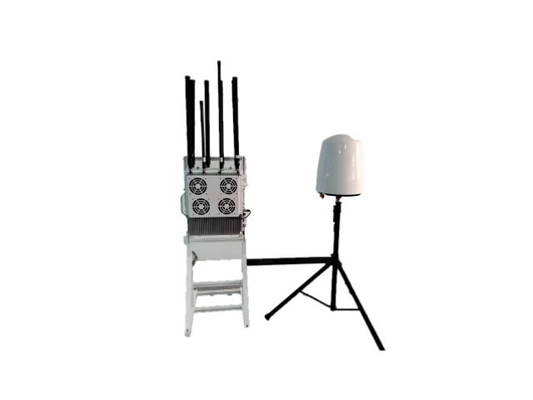

UAV Detection and Control System
Model:HW-UAVRF-3
Ⅰ. Product Introduction
HW-UAVRF-3 is a drone detection device that provides 360-degree protection, identifying both the direction of the threat and the drone manufacturer. The versatile system can be set up in minutes and is highly suited to both on-the-move applications and fixed installations.
Ⅱ. Performance Characteristics
- 24-hour automatic real-time monitoring and defense
- Blacklist and whitelist
- No interference, no impact on the surrounding environment such as WIFI, Bluetooth, aircraft
- Synchronous all-round defense of multiple drones
- Early warning
- Dynamic networking Supports multiple networking through the cloud server, which is flexible and covers the whole area
- Defense mode: automatic defense, linkage with detection function, one key to open automatic defense, realize unattended
- System configuration: support flexible system configuration, adapt to a variety of environment and site requirements
Ⅲ. Technical Specifications
| Strike equipment parameters | |
| Host weight | 29.9kg |
| Antenna weight | 2.7kg |
| Bracket weight | 8.6kg |
| Host size | 46*51.3*29.3cm |
| Antenna size | φ3.6*60cm |
| Bracket size | Base 46.5*65cm, height 127cm |
| Interference mode | Expel/force landing |
| Protection level | IP65 |
| Operating environment | host:-20℃ - +55℃ |
| Detection equipment parameters | |
| Positioning | GPS |
| Detection mode | radio passive automatic detection |
| Detection range | 360 degrees full coverage |
| Detection frequency | 2.4GHz/5.8GHz is standard |
| Detection range | 5KM for stable detection |
| Early warning | The remote will detect it when it's turned on |
| Blacklist and whitelist | Identify blacklist and whitelist drones |
| ID identification | Identify the electronic fingerprint of UAV |
| Background operating system parameters | |
| Solid state drive | 1TB |
| Memory | 4GB |
| Screen type | FHD IPS display |
| Screen size | 15.6 inches |
| Screen ratio | 16:09 |
| Screen resolution | 1920 x 1080 pixels |
| Screen refresh rate | 165Hz |
| Operating system | Windows10 64 |
Company Introduction
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
