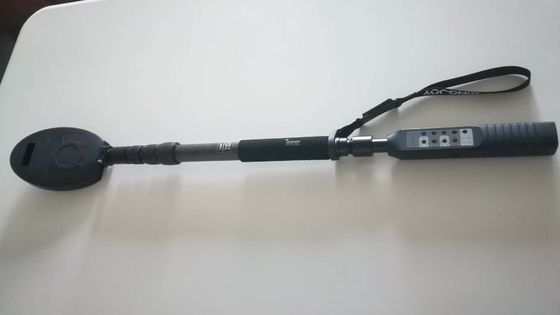

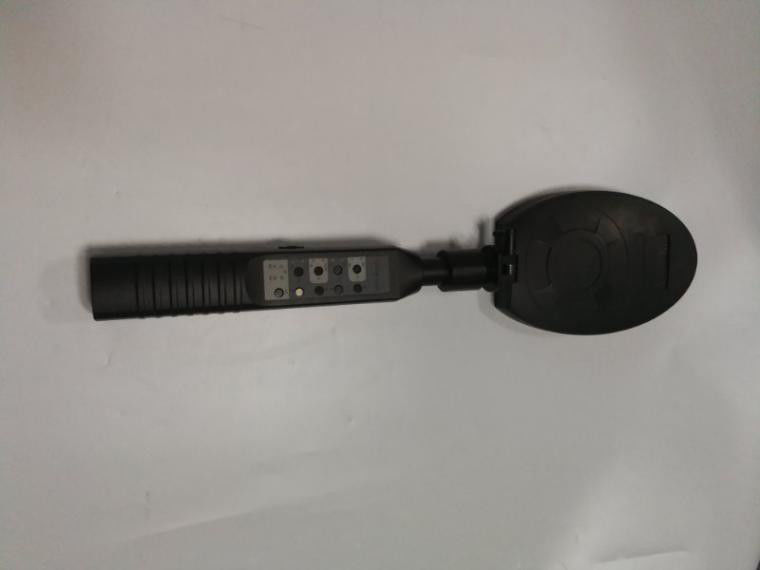

Detect Semiconductor Continuous Nonlinear Junction Detector 2400-2483mhz
Product Details:
Place of Origin: | Made-in-China |
Brand Name: | HEWEI |
Certification: | No |
Model Number: | HW-24 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 6000-70000 |
Packaging Details: | carton package, L28cm x W12.5cm x H6cm |
Delivery Time: | 30 days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Detection Signal: | Pulse, Continuous | Pulse Power: | 10/0.3 W |
---|---|---|---|
Sensitivity Is Not Less Than: | -108dbм (relative To/noise Ratio = 10 H) | Signal Frequency Range: | 2400—2483MHZ |
.Maximum Working Time Of Built-in Battery(in Pulse Mode/in Continuous Mode): | Not Less Than 3.0 H // 1.0 H | Weight: | 1 Kg |
Capacity: | 7.8 Ah | Device Dimension: | L47cm X W12.5cm X H6cm |
High Light: | detect semiconductor nonlinear junction detector,continuous nonlinear junction detector,2483mhz nonlinear junction detector |
Product Description
Non-linear junction detector is a device that can detect semiconductor nodes by transmitting fundamental waves, receiving and analyzing harmonics based on the harmonic re-radiation characteristics of nonlinear nodes.
Features:
- Simple operation, it ‘s an ideal security tool.
- Automatic adjustment of detection transmission power.
- In the using process, the effect of electromagnetic radiation on people is less than that of mobile phone.
- It can be used in a small space.
Technical Parameters:
1.Detection Signal: Pulse, continuous;
2.Pulse Power:10/0.3 w
3.Sensitivity is not less than: -108dbм (relative to/noise ratio = 10 h)
4.Signal frequency range:2400—2483MHZ
5.Maximum working time of built-in battery(in pulse mode/in continuous mode) : not less than 3.0 h // 1.0 h
