Pulse Nljd Non Linear Detector More Than 40 Db Dynamic Range

Pulse Nljd Non Linear Detector More Than 40 Db Dynamic Range

Product Details:

Place of Origin: Made-in-China
Brand Name: HEWEI
Certification: YES
Model Number: 36

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5500~50000
Packaging Details: carton package, 30,3х30,3х23 cm
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Type Of Probing Signal: Pulse Probing Signal Frequency: 3580-3620 MHz
Receiver Frequency At 2nd harmonics: 7160-7240 MHz Receiver Frequency At 3rd harmonics: 10740-10860 MHz
Antenna Gain Factor At 1st harmonics: 20dB Antenna Gain Factor At 2nd harmonics: 24dB
Capacity (pulse Ratio) Of Pulse Signal: 20 W (160) Energy Potential (capacity Of Probing Signal Taking Into Account Antenna Gain Factor): 2000 W
Sensitivity At 2nd and 3rd harmonics (without Antenna Gain): Sensitivity At 2nd And 3rd Harmonics (without Antenna Gain) Minus 110 DBm Angle Of Antenna Directive Diagram (at 1st//2nd//3rd harmonics): 16 //8//4 Grade
High Light:

nljd non linear detector


non linear detector nljd


pulse nljd detector

Product Description

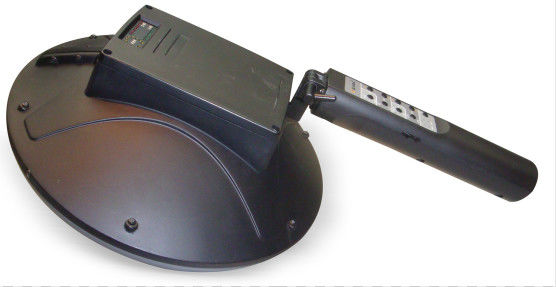

Non-Linear Junction Detector

The non-linear junction detector is the irreplaceable device at carrying out of operational and search activities in premises with high density of subjects containing electronic devices and also by search of small-sized electronic devices (1х 2cm). The device is also effective at long distance from the subjects that is very good at analysis of suspicious subjects within safe distance.


Main competitive advantages

1. Thanks to high frequency of probing signal and effectively implemented narrow diagram of antenna directivity,it is considerably better than all domestic and foreign nonlinear detectors in range of detection, selection and accuracy of spatial localization of semi-conductor elements.

2. Usage of SHF range has allowed to receive unique possibilities of detection of semi-conductor elements hidden by various materials (can be detected through the cracks, unearthed screens, through reflection from smooth surfaces, SIM-card is detected from distance in 1 meter etc.).

3. Narrow beam of directive diagram and presence of the laser index allows carrying out spatial selection of various semi-conductor elements with split-hair accuracy that is extremely important characteristic at the analysis of suspicious subjects within safe distance.

4. Automatic and manual changes of capacity of probing signal in pulse mode.

5. Usage of the newest technologies and materials, ergonomics.

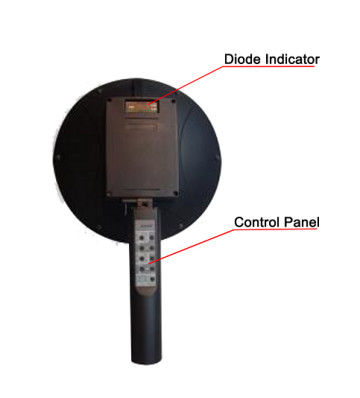

6. Convenient bodies of indication and management, simple in work, small weight.

7. Electromagnetic influence on the operator is essentially lowered.

8. Wireless head-phones.


Technical characteristics

Type of probing signal pulse
Probing signal frequency 3580-3620 MHz
Receiver frequency at 2nd harmonics 7160-7240 MHz
Receiver frequency at 3rd harmonics 10740-10860 MHz
Antenna gain factor at 1st harmonics 20dB
Antenna gain factor at 2nd harmonics 24dB
Capacity (pulse ratio) of pulse signal 20 W (160)
Energy potential (capacity of probing signal taking into account antenna gain factor) 2000 W
Sensitivity at 2nd and 3rd harmonics (without antenna gain) minus 110 dBm
Dynamic range More than 40 dB
Angle of antenna directive diagram (at 1st//2nd//3rd harmonics) 16 //8//4 grade
Laser lightning of the center of directive diagram yes
Time of work from built-in accumulator at maximum capacity of probing signal 3,0 hours


in working conditions

transportable conditions


30,3х30,3х23 cm

Weight 1,4 kg
