Small Rf Nljd Equipment 2483 Mhz Signal Frequency
Product Details:
Place of Origin: | Made-in-China |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HW-24 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 6000~8000 |
Packaging Details: | carton package, L28cm x W12.5cm x H6cm |
Delivery Time: | 30 days |
Payment Terms: | T/T |
Supply Ability: | 200 sets per month |
Detail Information |
|||
Battery Type: | Built-in Rechargeable Li-battery | Capacity: | 7.8 Ah |
---|---|---|---|
Device Dimension (in Working Condition): | L47cm X W12.5cm X H6cm | Alarm Mode: | Audible And Visual (LED Indicator) |
Max. Peak Power Of Radiation In Pulse Mode: | 10W | Device Dimension (in Folding Condition): | L28cm X W12.5cm X H6cm |
Signal Frequency: | 2400 - 2483 MHz | The Adjustment Range Of The Probing Signal Power: | 20dBm |
Device Weight: | ≦1kg | Operating Temperature: | +5℃ ~ +40℃ |
High Light: | rf nljd equipment,2483 mhz nljd equipment,nljd equipment 2483 mhz |
Product Description

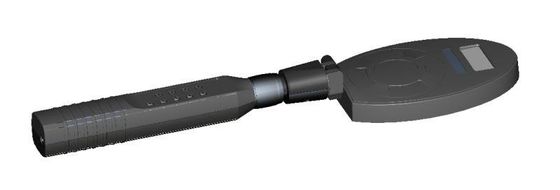

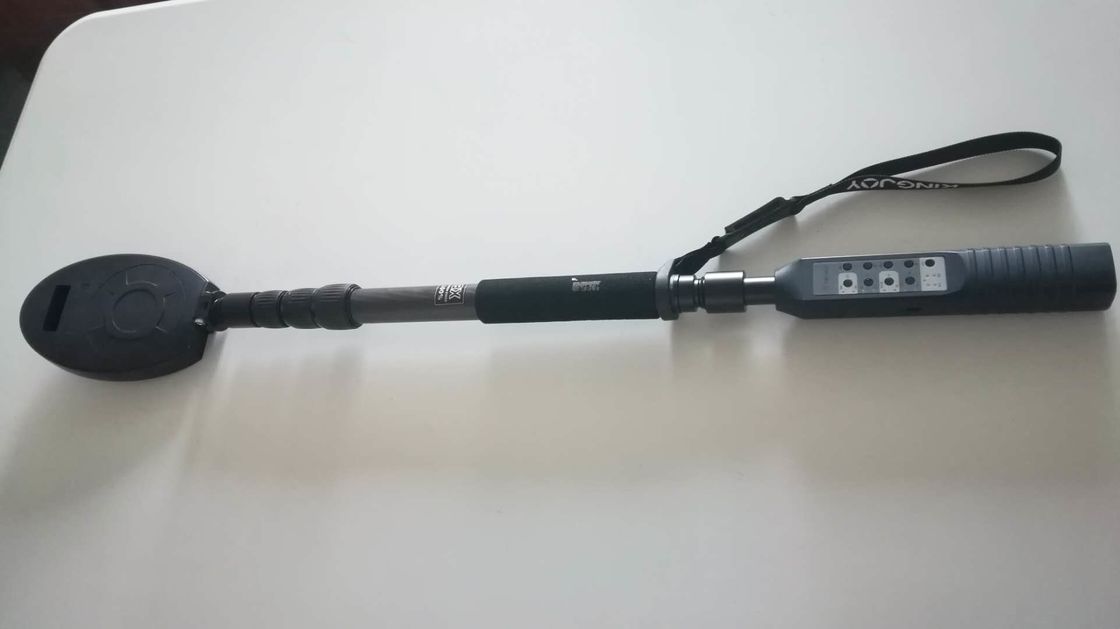

Non-Linear Junction Detector
Model: HW-24
Introduction
The non-linear junction detector “HW-24” is used for search and location of electronic devices both in active and switch-off state.
It is highly competitive with most popular models of non-linear junction detectors. It can operate in continuous and pulse mode as well, having a variable power output. Automatic frequency selection allows operation in complex electromagnetic environment.
The detector generates a response at the 2nd and 3rd harmonics when radiated by an RF probing signal. Semiconductor components of artificial origin will display a higher level on the second harmonic while corrosive semiconductor components of artificial origin will have a higher level on the third harmonic respectively. An “HW-24” analyzes the 2nd and 3rd harmonics response of the radiated objects, which enables a quick and reliable identification of electronic devices and corrosive semiconductors.
The “HW-24” automatically finds the best receiving frequency channel free of noise and distortion providing flawless operation even in the complicated electromagnetic environment.
Its power output is harmless to operator’s health. Operation at higher frequencies makes it in some cases more efficient than detectors with standard frequencies but with greater power output.
Technical Specification
Transmitter | |
Signal frequency | 2400 - 2483 MHz |
Max. peak power of radiation in pulse mode | 10W |
Maximum continuous radiation power (CW) | 300W |
The adjustment range of the probing signal power | 20dBm |
Receiver | |
2nd Harmonic frequency | 4812 - 4828 MHz |
3rd Harmonic frequency | 7218 - 7242 MHz |
Receiver Sensitivity | ≧ -108 dBm |
Dynamic range | ≧ 80 dBm |
Power supply | |
Battery type | Built-in Rechargeable Li-battery |
Voltage | 3.7 v |
Capacity | 7.8 Ah |
Battery life | 3 hours at max power in a pulsed mode |
1 hour at max power in a continuous mode | |
Main Unit | |
Device dimension (in working condition) | L47cm x W12.5cm x H6cm |
Device dimension (in folding condition) | L28cm x W12.5cm x H6cm |
Device weight | ≦1kg |
Alarm mode | Audible and Visual (LED indicator) |
Operating temperature | +5℃ ~ +40℃ |
