Oled Display Multi Band Eod Jammer , Bomb Jammer
Product Details:
| Place of Origin: | Made-in-China |
| Brand Name: | HEWEI brand |
| Certification: | YES |
| Model Number: | HWBJ-IV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| Operating Mode: | Easy ON/OFF Button, OLED Display Showing Battery Level | Transmitting Power: | 300W |
|---|---|---|---|
| Power Consumption: | MAX. 700W | Power: | AC220V/DC24-26V |
| Working Time: | Built-in DC24V&30AH Can Support Continuous Working For 60 Minutes | Built-in Charger: | 29.5V&2A Maximum Charging Time Is 5 Hours |
| Weight (Contain Antenna): | 35kg | Outer Case: | Pelican 1660, IP65 |
| Reliability & Maintainability: | MTBF≥1000 Hours, MTTR≤1 Hour | ||
| Highlight: | multi band eod jammer,multi band bomb jammer,oled display eod jammer |
||
Product Description

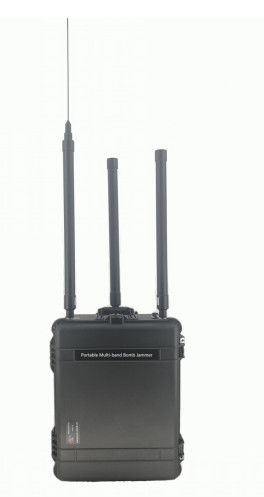

Portable Multi-band Bomb Jammer
Model: HWBJ-IV
Introduction
This product has small volume, light weight, which is convenient for the individual soldier to carry. This device is capable of carrying out defensive interference against terrorists and criminals, simple remote-controlled radio devices commonly used and remote-controlled explosive devices improvised from existing civilian wireless communication tools.
| No | Parameter | ||||
| 1 | Frequency range | Frequency range | Power | Antenna | Interfering target |
| 20-80MHz | 25 W |
A: Fibre-glass epoxy antenna |
Toy remote control | ||
| 80-300MHz | 25 W |
B: Fibre-glass epoxy antenna |
VHF frequency, Remote Controller | ||
| 300-800MHZ | 25 W |
C: Fibre-glass epoxy antenna |
UHF frequency, Remote Controller | ||
| 800-1000MHz | 50 W |
Built-in directional array antenna |
2G-3G-CDMA800/GSM900MHz | ||
| 1000-2000MHz | 50 W | DCS1800/CDMA1900MHz/4G-TLE | |||
| 2000-2500MHz | 50 W | 3G-WCDMA, CDMA2000, 4G-LTE | |||
| 2500-3000MHz | 50 W | WIFI, Toy remote control, 4G-TLE | |||
| 3000-6000MHz | 25 W | All 5.8Ghz WIFI | |||
| 2 | Operating mode | Easy ON/OFF button, OLED display showing battery level | |||
| 3 | Transmitting power | 300W | |||
| 4 | Power Consumption | MAX. 700W | |||
| 5 | Power | AC220V/DC24-26V | |||
| 6 | Working time | Built-in DC24V&30AH can support continuous working for 60 minutes | |||
| 7 | All the time working in AC mains. | ||||
| 8 | Built-in charger | 29.5V&2A Maximum charging time is 5 hours | |||
| 9 | Weight (Contain antenna) | 35kg | |||
| 10 | Outer Case | Pelican 1660, IP65 | |||
| 11 | Reliability & Maintainability | MTBF≥1000 hours, MTTR≤1 hour | |||
