Unmanned Aerial Vehicle Fixed Anti Drone Jammer
Product Details:
Place of Origin: | China |
Brand Name: | HEWEI |
Certification: | yes |
Model Number: | HWUDS-3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD25000-26500 |
Packaging Details: | wooden package, |
Delivery Time: | 15-30 working days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Protection Level: | IP67 | Operating Environment: | -40℃ ~ +55℃ |
---|---|---|---|
Operating Mode: | Remote Control | Angle Of Defence: | 360° |
Defense Radius: | ≧1500M | Continuous Working Time: | All Time |
Dimension: | L56*W40*H26cm | Weight: | 14.5KG |
Number Of Jamming Band: | 6 | Jamming Mode: | Expel The UAV Forcing The UAV Landing |
High Light: | fixed anti drone jammer,unmanned aerial vehicle anti drone jammer,anti drone jammer fixed |
Product Description

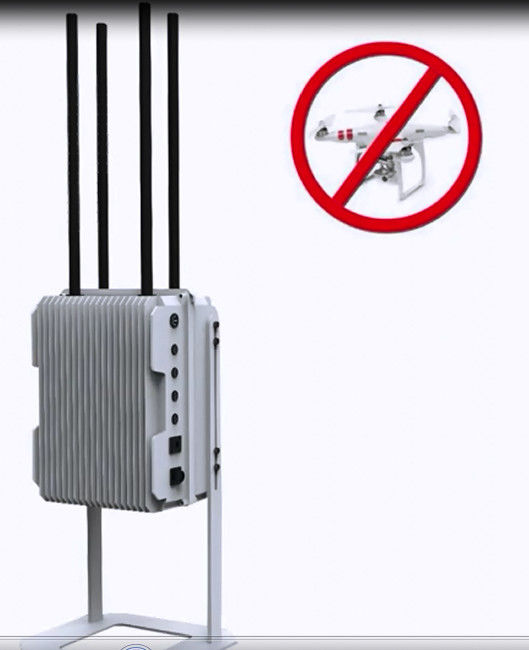

Fixed UAV Jammer
Model: HWUDS-3
1. Description
The HWUDS-3 system delivers our tried and tested drone jamming capability in a hardened IP67 case for permanent installation onto a building. Like all omni-directional jammers the HWUDS-3 could cause some interference to other devices, we have addressed this issue by attempting to use as low power as possible to defeat the drone.
- Technical Specification
Number of Jamming Band | 6 | ||
Jamming Mode | Expel the UAV | ||
Forcing the UAV landing | |||
Working frequency range | BAND1: 420 - 460Mhz | BAND2: 868 - 930Mhz | |
BAND3: 1100 - 1300Mhz / GPS/GLONASS/BEIDOU | |||
BAND4: 1555 - 1620Mhz / GPS/GLONASS/BEIDOU | |||
BAND5: 2400 - 2500Mhz | BAND6: 5715 - 5850Mhz | ||
Transmitting Power | Band1: 25W | Band2: 25W | |
Band3: 25W | Band4: 25W | ||
Band5: 25W | Band6: 25W | ||
Angle of Defence | 360° | ||
Defense Radius | ≧1500M | ||
Power Supply | AC100-240V/50-60Hz | ||
Built-in adapter | 29.5V & 2A | ||
Continuous working time | All time | ||
Main Unit | Weight | 14.5KG | |
Dimension | L56*W40*H26cm | ||
Material | ADC12 Aluminum-Alloy Die Castings | ||
Antenna (6 pieces) | Weight | 2.4KG | |
Dimension | Diameter 40mm; Length 65cm | ||
Material | FRP (Fiber Reinforced Plastics) | ||
Tripod | Weight | 2.3KG | |
Dimension | 21CM ~ 175CM | ||
Material | Carbon Fibre | ||
Protection Level | IP67 | ||
Operating environment |
-40℃ ~ +55℃
|
||
Operating Mode | Manual | ||
Remote Control |
