Portable Wideband Wireless 40m Radio Frequency Blocker
Product Details:
| Place of Origin: | Made-in-China |
| Brand Name: | HEWEI brand |
| Certification: | YES |
| Model Number: | HWBJ-M01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 5000-20000 |
| Packaging Details: | carton box, wooden case, 63*50*30cm |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Frequency Range, Power And Target: | 800-1000MHz 1800-2000MHz 2000-2200MHZ 2200-2500MHz 2500-3000MHz 5000-6000MHz | Operating Mode: | Switch The Machine On And Off At One Key |
|---|---|---|---|
| Transmitted Power: | 300W | Power Consumption: | MAX600W |
| Power Adaptability: | AC220V/DC24-26V | Operation Time: | Unlimited (~ Hours).The Built-in DC24V30AH Power Battery Pack Can Support The Equipment To Work Continuously For 60 Minutes; |
| Built-in Charger: | 29.5V&2A Maximum Charging Time Is 5 Hours | Main Unit Weight: | 31kg |
| Main Unit Size: | 63*50*30cm | Reliability And Maintainability Requirements: | MTBF≥1000 Hours、MTTR≤1 Hour |
| Interference Pattern: | Frequency Block Interference, Sweep Frequency Interference | Working Way: | Sweep Frequency, Grooming Spectrum And Direct Sequence Spread Spectrum Are Combined |
| Interference Distance: | 40-120m(The Distance Is Related To The Base Station Distance And Whether There Is A Mobile Phone Amplifier) | ||
| High Light: | wideband radio frequency blocker,wideband wireless signal blocker,40m radio frequency blocker |
||
Product Description

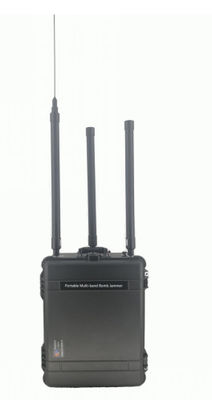

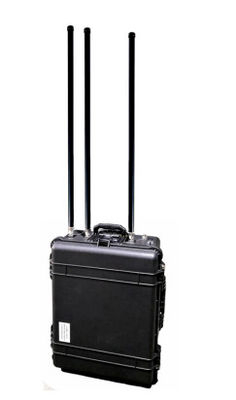

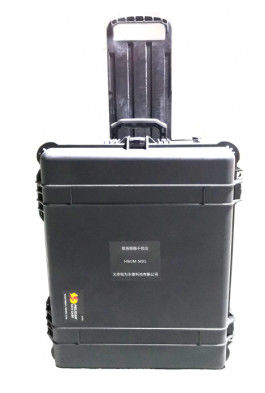

Portable Wide-Band Wireless Frequency Interferometer
Model:HWBJ-M01
Introduction
This product has small volume, light weight, it is convenient for the individual soldier to carry. It is widely used to block communication and data transmission between all mobile phones (2G,3G,4G); And it also can be used to prevent people from uploading photos to the Internet and causing public opinion. Or it can be used to block explosion of remote-controlled bomb which is made of cell phone or bomb made with cell phone frequency band.
Parameter
| No | Parameter | ||||
| 1 | Frequency range, power and target | Frequency range | Transmitted power | Antenna | Interfere with the target |
| 800-1000MHz | 50 W | Built-in directional array antenna | CDMA800MHz,GSM900 | ||
| 1800-2000MHz | 50 W | GSM1800,PHS1900 | |||
| 2000-2200MHZ | 50 W | 3G W-CDMA,TD-CDMA, | |||
| 2200-2500MHz | 50 W | 2.4GWIFI,4G,Toy remote control | |||
| 2500-3000MHz | 50 W | 4G | |||
| 5000-6000MHz | 50 W | 5.8GWIFI | |||
| 2 | Operating mode | Switch the machine on and off at one key | |||
| 3 | Transmitted power | 300W | |||
| 4 | Power Consumption | MAX600W | |||
| 5 | Power adaptability | AC220V/DC24-26V | |||
| 6 | Electromagnetic compatibility in accordance with the relevant provisions of GJB157A. | ||||
| 7 | Operation time | Unlimited (~ Hours).The built-in DC24V30AH power battery pack can support the equipment to work continuously for 60 minutes; | |||
| 8 | Built-in charger | 29.5V&2A Maximum charging time is 5 hours | |||
| 9 | Main Unit weight | 31kg | |||
| 10 | Main Unit size | 63*50*30cm | |||
| 11 | Reliability and maintainability requirements | MTBF≥1000 hours,MTTR≤1 hour | |||
| 12 | Interference Pattern | Frequency block interference, sweep frequency interference | |||
| 13 | Working way | Sweep frequency, grooming spectrum and direct sequence spread spectrum are combined | |||
| 14 | Protection function | Rf output no-load and short-circuit protection;The internal power supply system has the functions of under-voltage, over-voltage, overload, short-circuit and other protection and acousto-optic alarm. | |||
| 15 | Interference distance | 40-120m(The distance is related to the base station distance and whether there is a mobile phone amplifier) | |||
| Note: It depends on the frequency of mobile phone in each country. | |||||
