Fixed Uav Jammer , IP67 Radio Frequency Blocker
Product Details:
| Place of Origin: | Made-in-China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWUDS-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD FOB Shenzhen |
| Packaging Details: | carton package L56*W40*H26cm |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Defense Radius: | ≧1500M | Angle Of Defense: | 360° |
|---|---|---|---|
| Water-proof Design: | IP67 | Number Of Jamming Band: | 6 |
| Jamming Mode: | Expel The UAV | Power Supply: | AC100-240V/50-60Hz |
| Built-in Adapter: | 29.5V & 2A | Continuous Working Time: | All Time |
| Weight: | 14.5KG | Dimension: | L56*W40*H26cm |
| Operating Environment: | -40℃ ~ +55℃ | ||
| Highlight: | fixed uav jammer,uav radio frequency blocker,radio frequency blocker IP67 |
||
Product Description

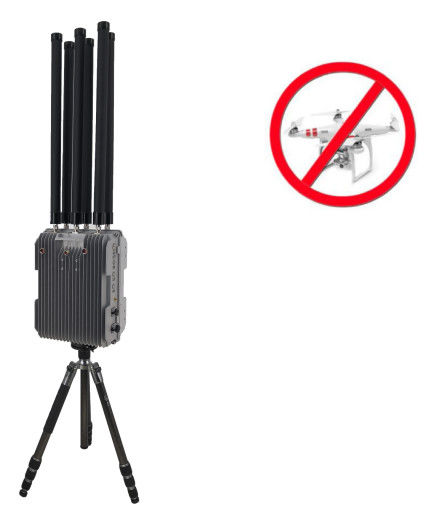

Fixed UAV Jammer
HWUDS-3
1. Description
The HWUDS-3 system delivers our tried and tested drone jamming capability in a hardened IP67 case for permanent installation onto a building. Like all omni-directional jammers the HWUDS-3 could cause some interference to other devices, we have addressed this issue by attempting to use as low power as possible to defeat the drone.
Features
► Multi-band emission, defeating most civilian UAVs
► Defense Radius: ≧1500M
► Angle of Defense: 360°
► Water-proof Design: IP67
► All-weathers working
► Defense automatically once POWER ON
Technical Specification
| Number of Jamming Band | 6 | ||
| Jamming Mode | Expel the UAV | ||
| Forcing the UAV landing | |||
| Working frequency range | BAND1: 420 - 460Mhz | BAND2: 868 - 930Mhz | |
| BAND3: 1100 - 1300Mhz / GPS/GLONASS/BEIDOU | |||
| BAND4: 1555 - 1620Mhz / GPS/GLONASS/BEIDOU | |||
| BAND5: 2400 - 2500Mhz | BAND6: 5715 - 5850Mhz | ||
| Transmitting Power | Band1: 25W | Band2: 25W | |
| Band3: 25W | Band4: 25W | ||
| Band5: 25W | Band6: 25W | ||
| Angle of Defence | 360° | ||
| Defense Radius | ≧1500M | ||
| Power Supply | AC100-240V/50-60Hz | ||
| Built-in adapter | 29.5V & 2A | ||
| Continuous working time | All time | ||
| Main Unit | Weight | 14.5KG | |
| Dimension | L56*W40*H26cm | ||
| Material | ADC12 Aluminum-Alloy Die Castings | ||
| Antenna (6 pieces) | Weight | 2.4KG | |
| Dimension | Diameter 40mm; Length 65cm | ||
| Material | FRP (Fiber Reinforced Plastics) | ||
| Tripod | Weight | 2.3KG | |
| Dimension | 21CM ~ 175CM | ||
| Material | Carbon Fibre | ||
| Protection Level | IP67 | ||
| Operating environment |
-40℃ ~ +55℃
|
||
| Operating Mode | Manual | ||
| Remote Control | |||

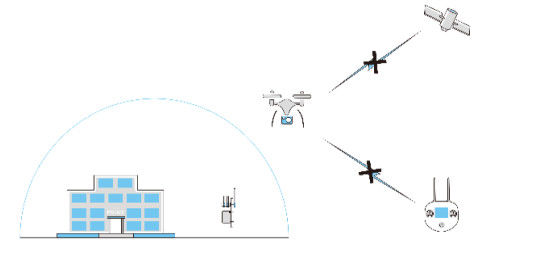

Function Demonstration
Defense Radius: ≧1500M
Installed at perimeter or top of building to realize an
omnidirectional defense shield
