Unique Compact Size Ergonomic Non Linear Junction Detector Nljd
Product Details:
Place of Origin: | CHINA |
Brand Name: | HEWEI |
Certification: | YES |
Model Number: | HW-24 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD/Set FOB shenzhen |
Packaging Details: | carton case |
Delivery Time: | 20 working days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Battery: | Built-in Rechargeable Li-battery | Operating Temperature: | +5℃ ~ +40℃ |
---|---|---|---|
Device Weight: | ≦1kg | Device Dimension (in Working Condition): | L47cm X W12.5cm X H6cm |
Device Dimension (in Folding Condition): | L28cm X W12.5cm X H6cm | Capacity: | 7.8 Ah |
Voltage: | 3.7 V | Battery Type: | Built-in Rechargeable Li-battery |
Dynamic Range: | ≧ 80 DBm | ||
High Light: | non linear junction detector nljd,ergonomic nonlinear junction detector,ergonomic non linear junction detector |
Product Description
Non-Linear Junction Detector
Introduction

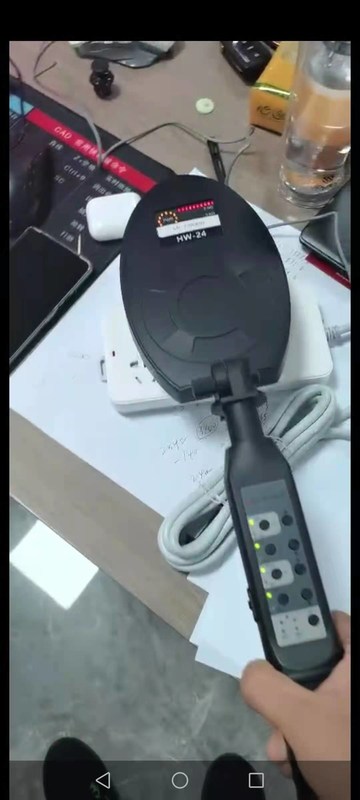

The non-linear junction detector “HW-24” is used for search and location of electronic devices both in active and switch-off state.
It is highly competitive with most popular models of non-linear junction detectors. It can operate in continuous and pulse mode as well, having a variable power output. Automatic frequency selection allows operation in complex electromagnetic environment.
The detector generates a response at the 2nd and 3rd harmonics when radiated by an RF probing signal. Semiconductor components of artificial origin will display a higher level on the second harmonic while corrosive semiconductor components of artificial origin will have a higher level on the third harmonic respectively. An “HW-24” analyzes the 2nd and 3rd harmonics response of the radiated objects, which enables a quick and reliable identification of electronic devices and corrosive semiconductors.
The “HW-24” automatically finds the best receiving frequency channel free of noise and distortion providing flawless operation even in the complicated electromagnetic environment.
Technical Specification
Transmitter | |
Signal frequency | 2400 - 2483 MHz |
Max. peak power of radiation in pulse mode | 10W |
Maximum continuous radiation power (CW) | 300W |
The adjustment range of the probing signal power | 20dBm |
Receiver | |
2nd Harmonic frequency | 4812 - 4828 MHz |
3rd Harmonic frequency | 7218 - 7242 MHz |
Receiver Sensitivity | ≧ -108 dBm |
Dynamic range | ≧ 80 dBm |
Power supply | |
Battery type | Built-in Rechargeable Li-battery |
Voltage | 3.7 v |
Capacity | 7.8 Ah |
Battery life | 3 hours at max power in a pulsed mode |
1 hour at max power in a continuous mode | |
Main Unit | |
Device dimension (in working condition) | L47cm x W12.5cm x H6cm |
Device dimension (in folding condition) | L28cm x W12.5cm x H6cm |
Device weight | ≦1kg |
Alarm mode | Audible and Visual (LED indicator) |
Operating temperature | +5℃ ~ +40℃ |
