AC220V / DC26-28V Bomb Disposal Equipment , Full Frequency Range RF Jammer

Product Description

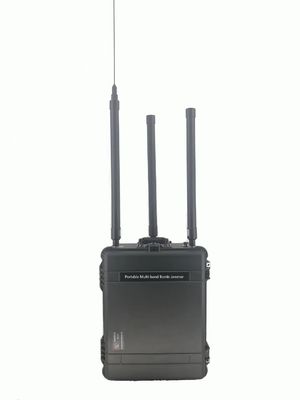

Portable Full Frequency Range Radio Frequency Jamming System for  Bomb Disposal

Introduction

The Portable radio frequency jamming system is to against terrorist organizations as well as criminals.

This equipment is specifically design and created to against remote controlled explosive devices

construct or remodel by commonly used radio remote control device and the existing public wireless

communication device. Jamming frequency range from

 20 -2500MHz, it is complete coverage of all the above devices.

Function

This Jamming equipment is specially design to against electronic warfare. The system interfere the

wireless remote control device, mobile phones or other wireless devices signals, interrupt wireless

 remote control explosive device so that it cannot be activate, etc. Mainly used for EOD specialist

personnel when transfer or disposal of suspicious explosive articles, or to protect important figures,

special stadium venues, private meetings, etc. It is the necessary equipment for the EOD, SWAT and

CAT special commando when operating IED disposal missions. It is also the crucial equipment when

radio signal interference required in a special event.

Specifications

1. Frequency Bandwidth, Power output and jamming target:

2. System operation: Remote control handles

3. Power Output: 230W

4. Power Consumption: MAX 1150W

5. Power compatible: AC220V / DC26-28V

6. Battery comply with GJB157A standards

7. DC Current input: 40Amps@28VDC

8. Operation time: unrestricted (~ Hours) Internal battery can support the system continuously working

for 70-80 minutes.

9. Reliability and serviceability requirements: MTBF≥1000 Hours,MTTR≤1 Hours.

10. Jamming method: Frequency band Blocking, sweep

11. Operation methods: sweep, toiletry spectrum and direct sequence spread spectrum in combination

12. Operation modes: full band mode of operation to meet the situation requirements.

13. System protection: RF output no-load and short-circuit protection; internal power system has overload and short-circuit protection, etc.

14. Main Unit Weight: 40Kg

15. Main Unit Dimensions: (Pelican Case): 724 x 441 x 267mm.
