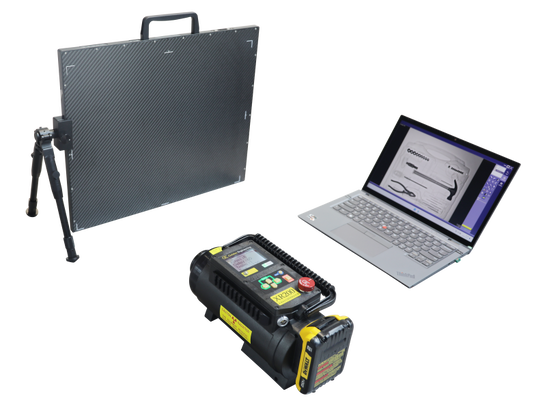

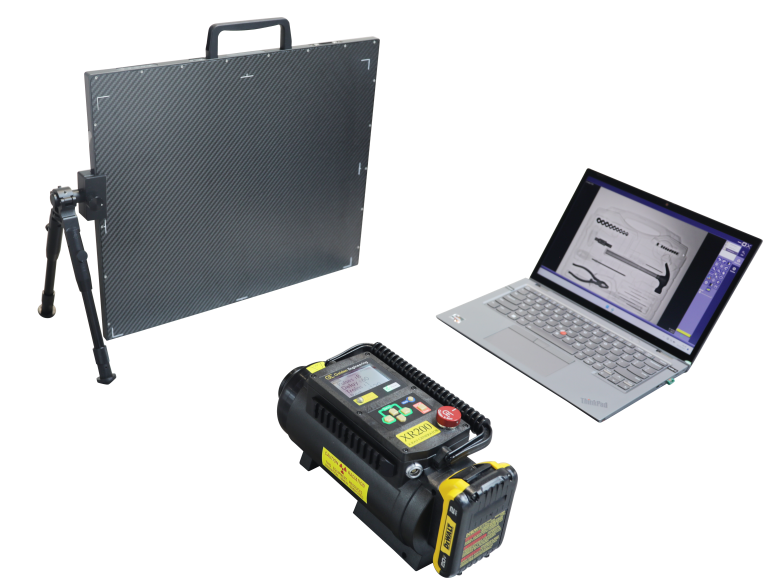

Portable HD Ultra-thin X-ray Scanner System (Dual-Energy)
Product Details:
| Place of Origin: | china |
| Brand Name: | HEWEI |
| Certification: | no |
| Model Number: | HWXRY-04S pro |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
Product Description
Product Introduction
The Portable HD Ultra-thin X-ray Scanner System is a device using X-ray fluoroscopic imaging. Through high-definition images, operators can quickly detect dangerous goods hidden in suspicious parcels and vehicles.
Product Features
- High-definition: High-definition images facilitate operators to identify the types of items in the package and analyze details.
- Ultra-thin: The ultra-thin flat panel detector can be placed in narrow gaps for easy inspection.
- Lightweight: The equipment is easy to assemble, the flat panel detector is light in weight, and easy to set up.
- Simple: Easy to operate, wireless connection, remote control pulse emission, touch screen computer is convenient for image processing.
Applied Scene:
EOD/IED:
The Operators is to accomplish their task as safely as possible. For that reason, EOD equipment, and specifically portable x-ray scanner systems play a crucial role in meeting this objective -providing real time, high quality images of suspected objects, while ensuring the safety of all parties involved.
Counter Surveillance
The portable X-ray scanner system plays a crucial role in inspecting everyday objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room. When guarding a public figure, or an embassy, these items as well as innocent looking gifts or mobile phones must be inspected for the slightest alteration in their electronic components which may imply it is being used as a listening device.
Border Control
It allows the operator to carry the complete system in his car or in a backpack when needed. The inspection of suspected items is quick and simple and provides the highest image quality for on the spot decisions.
Customs
In customs, check point officials must perform a quick, non-intrusive and non-destructive inspection of suspected vehicles and packages with whom they come across on a daily basis.The portable X-ray scanner systems offer an excellent inspection solution for check points that do not have large cargo or vehicle inspection systems or require a complementary solution.
Features
● Can be assembled rapidly on-site.
● Imaging plate using amorphous silicon technology,image is very clear.
● Can operate with remote control in the rear.
● Powerful image enhancement and Analysis tools.
● Intuitive interface, Image splicing infinite,
Simplicity of operation.
● User-friendly software.
Technical Parameters
1.Flat Panel Detector
| Sensor type | a-Si |
| Scintillator | Gos / CsI:TI |
| Effective area | 350 x 430 mm |
| Resolution ratio | 2560 x 3072 |
| Pixel size | 139 μm |
| Power consumption | <20W |
| Spatial resolution | 3.5 LP/mm |
| Energy range | 40-160 KV |
| Dynamic range | ≥84 dB |
| Sensitivity | ≥0.54 LSB/nGy |
| Afterimage | <1% 1st frame |
| Size | 385*456*15mm |
| Weight | ≤4kg (including battery) |
| Structural material | aluminum-magnesium alloy |
| Front material of detector | carbon fiber board |
| Narrow edge distance | bottom ≤5mm; left side ≤10mm |
2.X-ray Source
| Penetration | 22mm steel plate (60mm aluminum plate) |
| Size | 390mm×108mm×148mm |
| Weight | 5.4kg (including battery) |
| Pulse rate | 15 pulses per second |
| Maximum load | 200 pulses every 4 minutes (3000 pulses/hour) |
| Power supply | 20V lithium-ion battery, which can emit 5500 pulses when fully charged |
| Delay time | When the emission switch is triggered, there is a delay time of 15 to 240 seconds. |
| Voltage | 270kv. Pulsed (safety to operator) |
3.Imaging System
| System platform | Flip touch screen laptop |
| Software system | Professional image processing and acquisition system |
| Image processing | image enhancement and analysis tools, including rotation, inversion, mirroring, zooming, pseudocolor, measurement, stitching, etc. |
| Image storage | More than 10,000 images |
| Security function | Encryption dog, registration login, real-name use system, convenient for later inspection |
4.Connection Method
| Support wireless connection and 50-meter wired connection, one-key acquisition operation, just press the acquisition button to automatically form the best image. |
| Remote control distance: the standard communication box remote control distance can reach 50 meters, and the optional single wireless bridge and communication box remote control distance can reach 500 meters. |
5.Dual-Energy Imaging
Dual-energy output , quickly distinguish between inorganic and organic substances, and observe and analyze various dangerous goods. Dual-energy imaging takes images twice with different energies, and the system will calculate, analyze and fuse the images under the two energies to finally obtain the image after dual-energy material classification.
| Size | 145*90*36mm |
| Weight | 0.4kg |
| Battery parameters | 12V1Ah |
| Working time | 7 hours |
