Multifunctional Stereo Listening System Built In Dsp Digital Signal Processing Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWCW-V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package, wooden package. |
| Delivery Time: | 12 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Name: | Multifunctional Stereo Listening System | Size: | Hd 2.0 TFT Color Display |
|---|---|---|---|
| Touch Key: | Left, Right, (on/off/confirm) Volume +, Volume - | Record: | External USB Flash Drive Is Used |
| Audio Output Interface: | 3.5mm) Earphone Output ≥16Ω | Usb Flash Drive Memory: | 32G |
| Highlight: | multifunctional stereo listening system,dsp module stereo listening system,tft color display stereo listening system |
||
Product Description

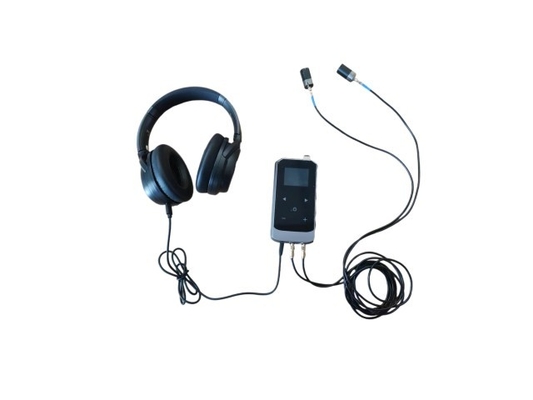

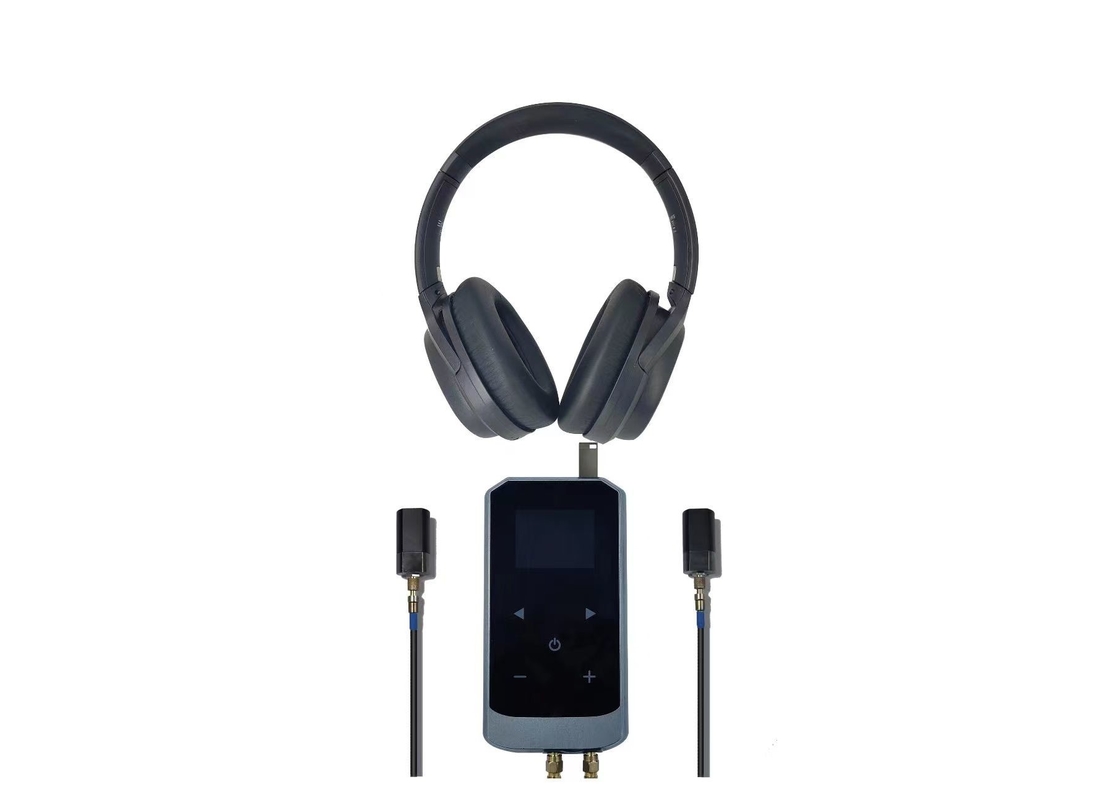

Multifunctional stereo listening system
Model: HWCW-V
Feature:
1.Highly sensitive independent sensor probe, can pick up weak sound signals.
2.Built-in digital signal (DSP) processing module for sound algorithm processing, to ensure the quality of sound.
3.Built-in system automatically adjusts the sound without manual adjustment.
4.Dual channel audio output can be output individually or simultaneously.
5.Comes with recording function, external U disk memory can be synchronized recording.
Description:
The device adopts the reflection low noise DSP processing module. The signal (human voice, footsteps and other sounds) is picked up through the left and right independent sensor probes at the front end. After demodulation by the control processing unit at the back end, the digital signal is output, which can detect very small sound signals.
This device has high detection sensitivity and clear output sound quality. It can better restore the sound through the dedicated Bluetooth noise cancelling headset. It can pick up the sound through the wall, ceiling and floor of the building. The equipment can be used as fast monitoring equipment of special forces, but also the military police forces, criminal investigation and technical investigation departments of the investigation and anti-reconnaissance necessary products.
Specification:
| display screen | Size | Hd 2.0TFT color display |
| Touch key | Left, right, (on/off/confirm) Volume +, volume - | |
| Record | External USB flash drive is used | |
| bluetooth | (Open the built-in Bluetooth and then pairing, back connection can be matched) with wireless Bluetooth 5.0 version, wireless transmission monitoring. | |
| system setup |
Year, day, month/hour, minute, second, Language: (Chinese /English) Key light, screen saver control can achieve power saving mode, longer use time. |
|
| Low power protection | When the battery level is lower than 10%, a message is displayed indicating the shutdown state. That is, the recording file is saved. | |
| Probe interface | two | |
| Audio output interface | 3.5mm) earphone output ≥16Ω | |
| Usb flash drive memory | 32G | |
| Recording file format | wav | |
| Recording time | 30h | |
| working hours | ≥3hours | |
| power supply | Six number 7 1.2V 950MA alkaline rechargeable batteries | |
| Charging time | ≤3hours | |
| Monitoring frequency | 50HZ~16KHZ | |
| Appearance color/product material | Mica ash + aluminum alloy | |
| Main engine size | 166*46*22mm | |
| Main engine weight | ≤ 220g | |
| Packing weight | 4.4kg | |
| packing measurements | 490*405*145mm | |
| operating temperature | -20℃ - 45℃ | |
| storage temperature | -20℃ - 60℃ | |
