1/2.9 Inch Telescopic Manipulator Ultra Low Illumination 2 Megapixel Cmos
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWJXS-V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set at least |
|---|---|
| Price: | negotiable |
| Packaging Details: | ABS Case dimension,146x38x50cm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Telescopic Manipulator | Built-in HD Lens: | 2.8mm |
|---|---|---|---|
| Material: | High-strength Light-weight Carbon Fiber | Protection Class: | IP68 |
| High Grabbing Capacity: | It Can Grab About 20 Kg Object | Resolution: | 1080P |
| High Light: | 1/2.9 inch telescopic manipulator,ultra low illumination telescopic manipulator,2 megapixel cmos manipulator telescopic |
||
Product Description
1/2.9 inch ultra-low illumination 2 megapixel CMOS, High-strength light-weight carbon fiber, Telescopic Manipulator
Description

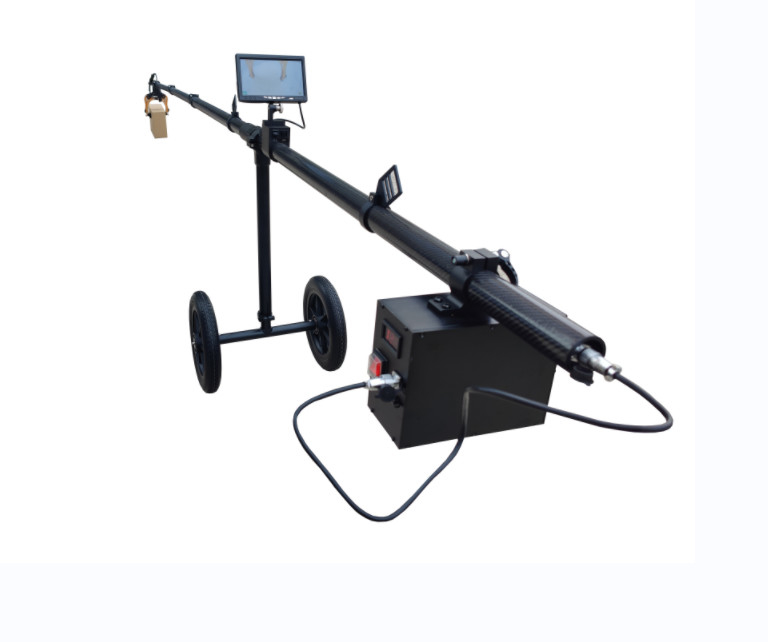

Telescopic manipulator is a kind of EOD device. It is comprised of the mechanical claw, mechanical arm, battery box, controller, etc. It can control the claw's open and close.
This device is used for all dangerous explosive articles disposal and suitable for public security, fire fighting and EOD departments.
It is designed to provide the operator with a 4.7 meters stand-off capability, thus significantly increasing operator survivability should a device detonate.
Features
1. High grabbing capacity: it can grab about 20 kg objects.
2. 4.7 meters stand-off capability.
3. Rechargeable battery.
4. Battery box designed as counterweight.
Technical Specification
| Physical Parameter | |
| Weight (with battery) | 16.8 kg |
| Material | High-strength light-weight carbon fiber |
| Pole Length | 2.75 m ~ 4.7m |
| Claw Max. Opening Size | 20cm |
| Max. Grip Weight | 2.75m (pole length): 11.5kg |
| 4.7m (pole length): 20kg | |
| Wheel Diameter | 30cm |
| Wheel-center-distance | 44cm |
| Claw rotation | 360 degrees |
| Camera Parameter | |
| Image Sensor | 1/2.9 inch ultra-low illumination 2 megapixel CMOS |
| Built-in HD Lens | 2.8mm |
| Resolution | 1080P |
| Min. illumination | Color 0.01Lux@(F1.2,AGC ON) |
| Backlight compensation | AUTO |
| Frame rate | 50Hz:25fps (1920*1080)；60Hz:30fps (1920*1080) |
| Protection Class | IP68 |
| Display Parameter | |
| Display Size | 7 inch TFT-LCD screen |
| Resolution | 1080P |
| Screen Backlight | LED |
| Brightness | 500cd/m2 |
| FOV | 150° |
| Voltage | 12v |
| Power | 6.5w |
| Language | English |
| Other Parameter | |
| Working Time | 5hours with built-in rechargeable battery |
| Operating temperature | -20℃ to +45℃ ; 0~98%Rh |
| Storage temperature | -20℃ to +45℃ ; 0~98%Rh |
| Packing weight (device+case) | 32.2kg |
