1090mm - 1360mm Mine Metal Detector Battery Powerd
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | UMD-III |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | Carton package, wooden package, |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Name: | Mine Detector | Weight: | 3kg |
|---|---|---|---|
| Transport Weight: | 12.3 Kg | The Detecting Pole Length: | 1090mm～1360mm |
| Battery: | LR20 Manganese Alkali Dry Cell | Detection Sensitivity: | 0.05gr Stainless Steel At 75mm Distance From The Probe |
| Operating Humidity: | Fully Enclosed And Be Able To Operate 2 M Under Water. | Storage Temperature: | -25°C～70°C |
| High Light: | 1090mm mine metal detector,battery powerd mine metal detector,1360mm mine detector |
||
Product Description
Longest detecting pole is 1120mm, the shortest is 700mm, and weight 1100g Mine Detector
Mine Detector
Description

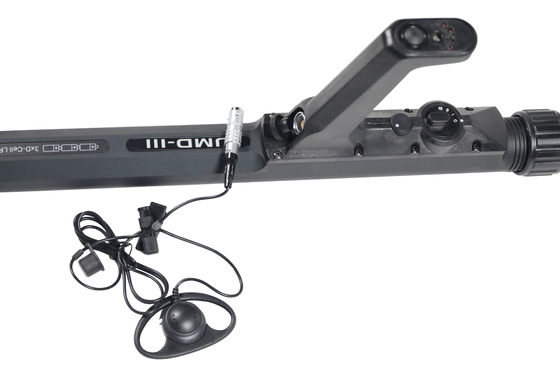

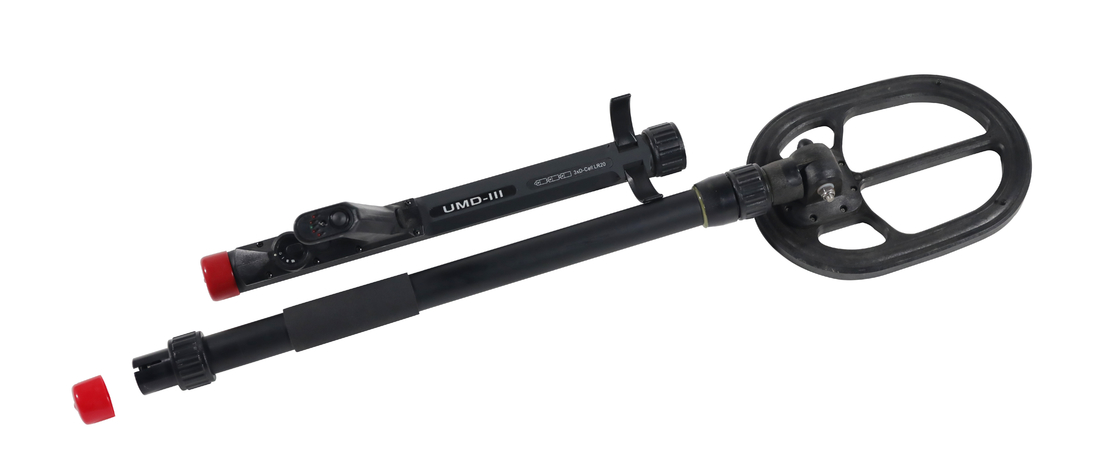

UMD-III mine detector is a widely used hand-held (single-soldier operating) mine detector. It adopts high frequency pulse induction technology and it is highly sensitive, especially suitable for detecting minor metal mines. The operation is simple, so the operators can use the device only after a short training.
Features
- Waterproof, which can be detected under water.
- Being controlled by a microprocessor with accurate timing, fast conversion and strong signal processing capability.
- Super sensitivity to identify very small metal objects.
Technical Parameters
| Weight | 3kg |
| Transport weight | 12.3 kg |
| The detecting pole length | 1090mm～1360mm |
| Battery | LR20 Manganese alkali dry cell |
| Battery life |
At maximum sensitivity - 12 hours At medium and low sensitivity - 18 hours Low voltage alarming by sound and light |
| Detection sensitivity | 0.05gr Stainless steel at 75mm distance from the probe |
| Operating humidity | Fully enclosed and be able to operate 2 m under water. |
| Operating temperature | -25°C～70°C |
| Storage temperature | -25°C～70°C |
| The detecting coil | The longest detecting pole is 1120mm, the shortest is 700mm, and weight 1100g. Glass resin telescopic rod, the surface is coated to protect the environment.The diameter of detecting coil is 300mm, black ABS material, surface is treated with EMC, and a hybrid RX coil is used to improve the signal/noise ratio. |
