12.1v 2600ma Battery Eod Cooling Suit 1.12kg Bomb Disposal Equipment

Product Description

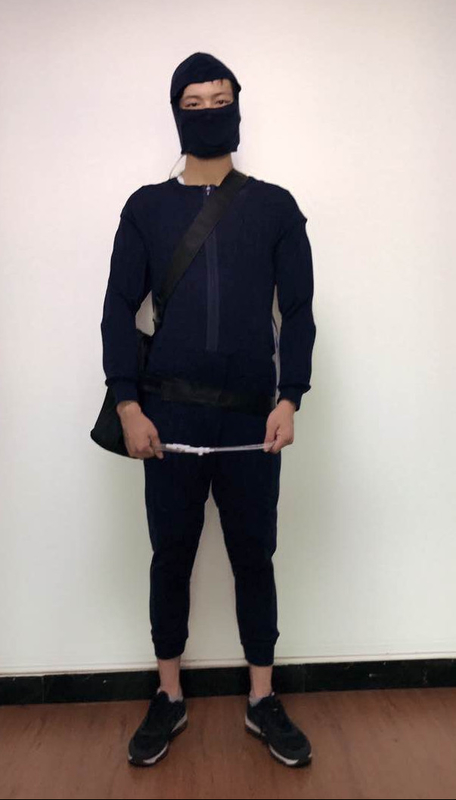

12.1v 2600mA battery, 1.12kg  Cooling Suit

Cooling Suit

System Introduction

1.Cooling suit is used to provide a safe and cool environment for the explosive disposal personnel, so that the explosive disposal personnel can conduct the explosive disposal work efficiently and intensively.

2.Cooling suits use ice water to transfer body heat, which is especially suitable for working in tough or hot conditions.

3.The system is equipped with 12.1v 2600mA battery to ensure that the system will work for no less than 2 hours at full power.The built-in protection function of the battery is usually ON under normal conditions. If the battery is closed due to some other reasons, just take out the battery and press ON.

4.The inner lining of the system Fanny pack is insulated to ensure that the temperature of the circulating water in the system will not shorten the duration due to environmental impact.

5.After overpressure, rupture, trajectory, body influence, heat and fireproofing effect test, it is proved that the water cooling suit is suitable for use in eod suit, and can also be used in chemical protective suit and other applications that need to transfer body heat.(with separate power supply)

Accessories Introduction

1.Water-cooled clothes

2.Control system

3.Two ice boxes

4.Charger

5.Hand bags

Weight

Clothing weight: 1.12kg

Water cooling package device: 2.0kg

Using Step

1.Open the control system's Fanny pack, take out the water bag, open the water bag seal clamp and put it into the ice box.(water is below the highest mark)

2.Inject normal temperature water into the water bag. The amount of water is lower than the highest scale and higher than the lowest scale.(water level above ice box is most suitable)

3. Seal the water bag and put it back into the Fanny pack.

4. Connect the water pipe of clothes with the control system

5. Open the side package of the control system and switch on the power.

6.Turn on the system switch and the water cooling system works normally.

Pay Special Attention

The water pipe of the control system and the water pipe of the cooling suit is connected by plugging and unplugging the joint. In the process of use, please pay attention to pressing down the patch on the side of the joint to make the bump pin of the joint spring up and then connect the joint!

Please do not power off for a long time and charge the battery on schedule!
